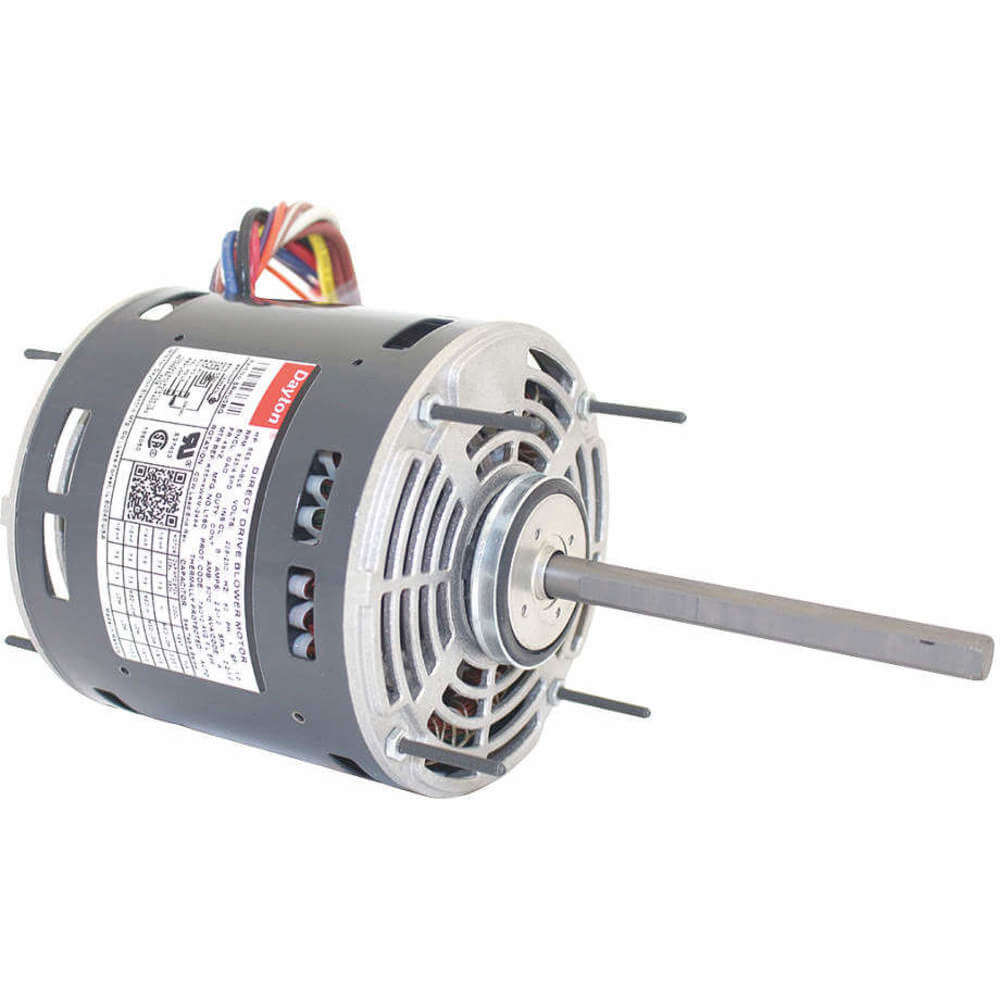

| Item | Direct Drive Blower Motor |
| Bearings | Ball |
| Body Dia. | 5.625" |
| Bolt Circle Dia. | 5.125" |
| Capacitor Required | 2MDV6, 2MDV7 |
| Duty | Continuous Air-Over |
| Enclosure | Open Air-Over |
| Frame | 48Yz |
| Frequency | 60 Hz |
| Full Load Amps | 9.1 |
| Hp | 3/4 to 1/5 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 5.875" |
| Max. Ambient Temp. | 60 Degrees C |
| Motor Application | H Vac/R |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Dr Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | PSC |
| Mounting | Ring/Stud/Band |
| Nameplate Rpm | 1075 |
| Nominal Efficiency | 0.58 |
| Number Of Speeds | 4 |
| Overall Length | 10.875" |
| Phase | 1 |
| Resilient Ring Dia. | 2.187" |
| Ring To Ring Center | 5.187" |
| Rotation | CW/CCW |
| Rpm Range | 1001-1100 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 5" |
| Shaft Orientation | All Angle |
| Shaft Type | Flat |
| Stud Pattern | 3-5/8 x 3-5/8" |
| Thermal Protection | Auto |
| Voltage | 115 |
| Ship weight (kg) | 8.0775 |
| Ship height (cm) | 18.8 |
| Ship length (cm) | 36.32 |
| Ship width (cm) | 18.8 |
| HS code | 8501404040 |
| Country of Origin | US |
| Product | Model | Bearings | Body Dia. | Bolt Circle Dia. | Capacitor Included | Capacitor Required | Duty | Enclosure | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGF8 | Sleeve | 4.4" | 3.875" | Yes | Included | Continuous | Open Air-Over | 4.4 | €216.16 | |
 |
1AGF9 | Sleeve | 5.625" | 5.25" | Yes | Included | Continuous | Totally Enclosed | 48Y | €258.38 | |
 |
3LU71 | Sleeve | 5.625" | - | No | 2MDV3 | Continuous Air Over | Open Air-Over | 48YZ | €170.44 | |
 |
3LU72 | Sleeve | 5.625" | - | No | 2MDV4 | Continuous Air Over | Open Air-Over | 48YZ | €176.72 | |
 |
3LU73 | Sleeve | 5.625" | 5.125" | No | 2MDV7 | Continuous Air Over | Open Air-Over | 48YZ | €237.65 | |
 |
3LU74 | Sleeve | 5.625" | - | No | 2MDV4 | Continuous Air Over | Open Air-Over | 48YZ | €300.35 | |
 |
3LU75 | Sleeve | 5.625" | 5.125" | No | 2MDV4 | Continuous Air Over | Open Air-Over | 48YZ | €228.53 |
