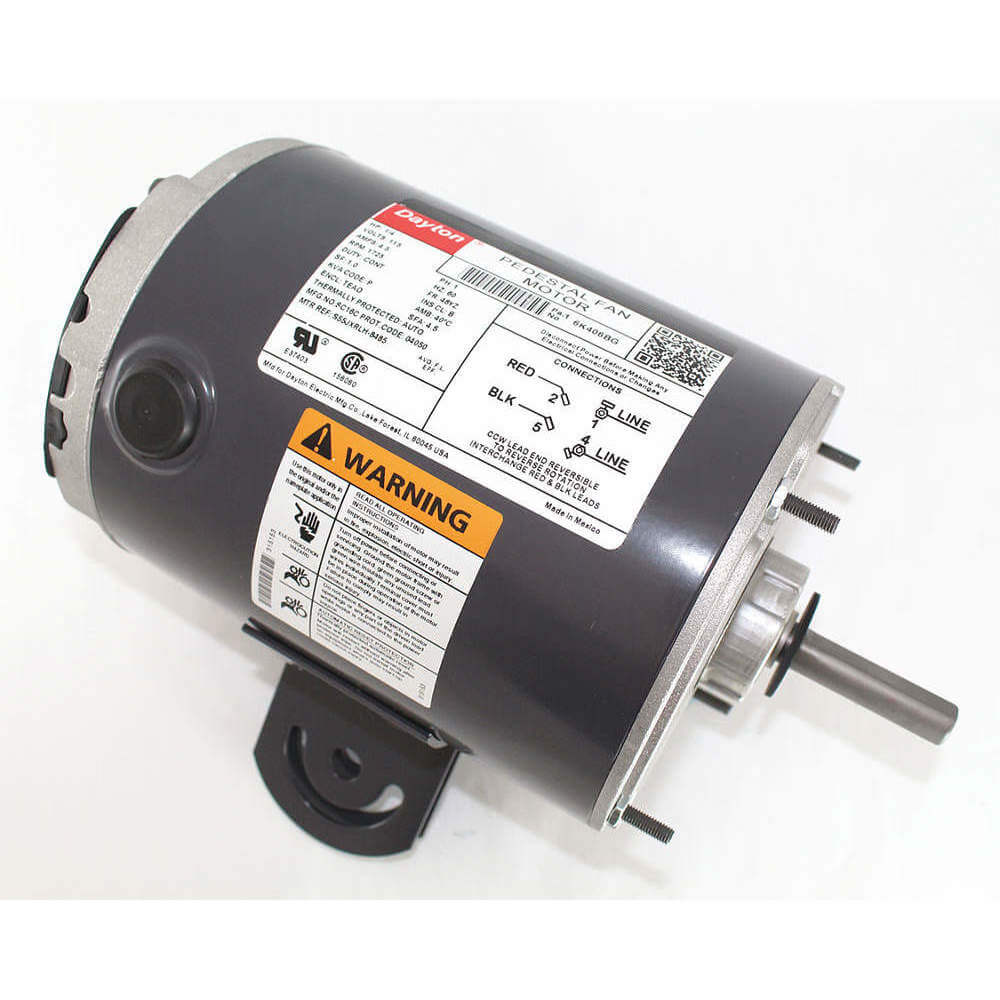

| Item | Pedestal Fan Motor |
| Ambient Temp. Range | 40 Degrees C |
| Bearings | Ball |
| Body Dia. | 5.625" |
| Capacitor Included | No |
| Capacitor Required | No |
| Duty | Continuous Air-Over |
| Enclosure | Totally Enclosed Air-Over |
| Frame | 48Yz |
| Frequency | 60 Hz |
| Full Load Amps | 4.7 |
| Hp | 1/4 |
| Hz | 60 |
| Insulation Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | H Vac/R |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Yoke |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pedestal Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Split-Phase |
| Mounting | Yoke |
| Nameplate Rpm | 1725 |
| Number Of Speeds | 1 |
| Overall Length | 9.375" |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Range | 1701-1800 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2" |
| Thermal Protection | Auto |
| Voltage | 115 |
| Ship weight (kg) | 10.6245 |
| Ship height (cm) | 23.62 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 20.07 |
| HS code | 8501404040 |
| Country of Origin | US |
| Product | Model | Capacitor Included | Capacitor Required | Duty | Enclosure | Full Load Amps | HP | Insulation Class | Item | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3M469 | Yes | Included | Continuous Air-Over | Totally Enclosed Air-Over | 4.3 | 1/3 | B | Pedestal Fan Motor | €211.96 | |
 |
3M504 | Yes | Included | Continuous Air-Over | Totally Enclosed Air-Over | 3.5 | 1/4 | B | Pedestal Fan Motor | €173.94 | |
 |
3M505 | - | Included | Continuous | - | 5.9 | 1/2 | B | Pedestal Fan Motor | €251.44 | |
 |
4C354 | Yes | Included | Continuous Air-Over | Totally Enclosed Air-Over | 3.5 | 1/4 | B | Oscillating Fan Motor | €395.51 | |
 |
4UX59 | Yes | Included | Continuous Air-Over | Totally Enclosed Air-Over | 6.2 | 1/2 | F | Pedestal Fan Motor | €265.77 | |
 |
4UX60 | Yes | Included | Continuous Air-Over | Open Air-Over | 3.5 | 1/4 | B | Pedestal Fan Motor | €232.30 | |
 |
4UX61 | Yes | Included | Continuous Air-Over | Totally Enclosed Air-Over | 3.9 | 1/4 | B | Pedestal Fan Motor | €240.18 |
