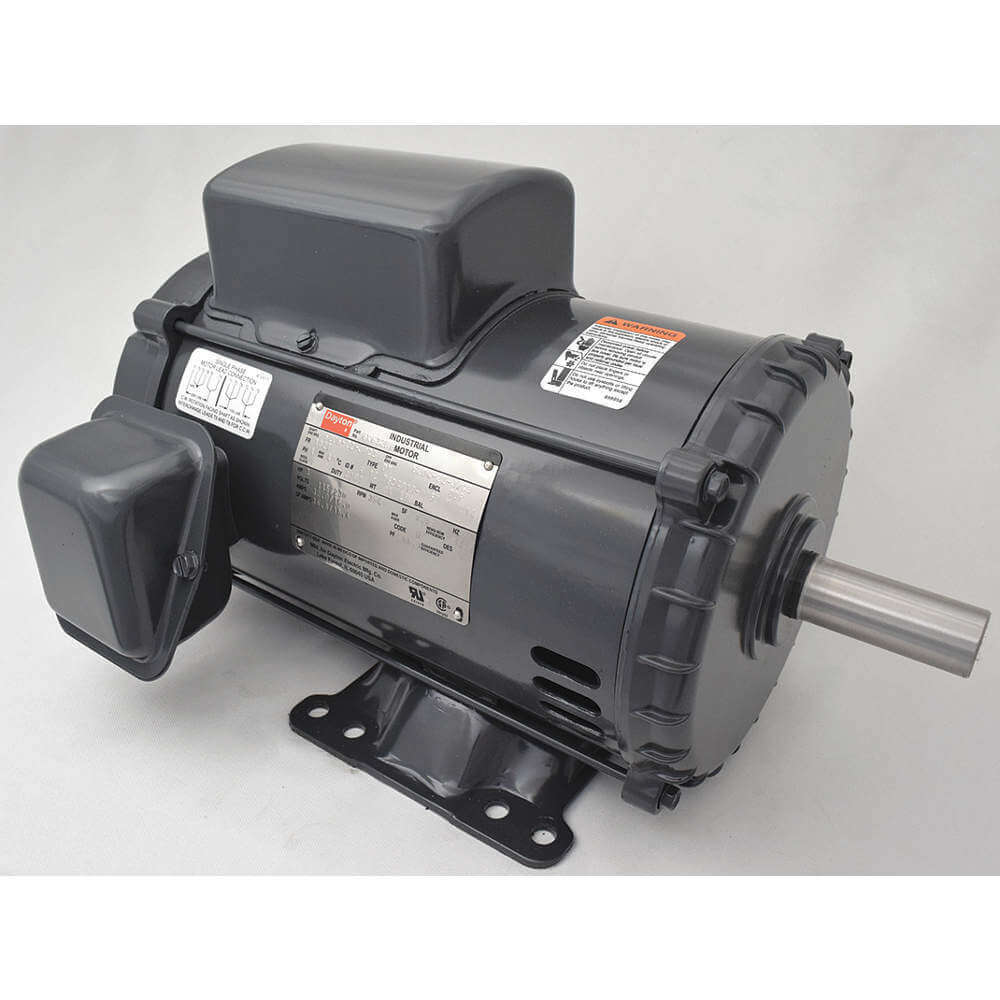

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency | 84.9% |
| Frame | 182T |
| Frame Material | Steel |
| Full Load Amps | 32.0/16.0 |
| Hp | 3 |
| Hz | 60 |
| Insulation Class | F |
| Length Less Shaft | 14.5" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Mounting | Base |
| Nameplate Rpm | 3450 |
| Nominal Efficiency | 84.90% |
| Number Of Speeds | 1 |
| Overall Length | 14.625" |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Group | 3001-3600 |
| Rpm Range | 3001-3600 |
| Service Factor | 1.15 |
| Shaft Dia. | 1.125" |
| Shaft Length | 2.75" |
| Voltage | 115/230 |
| Warranty | 1 Years |
| Ship weight (kg) | 34.2 |
| Ship height (cm) | 34.54 |
| Ship length (cm) | 46.74 |
| Ship width (cm) | 34.29 |
| HS code | 8501406040 |
| Country of Origin | US |
| Product | Model | Efficiency Group | Frame | Frame Material | Full Load Amps | Green Certification or Other Recognition | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11W342 | - | 182TC | Steel | 9.2-8.3/4.2 | - | 3 | 60 | F | €562.07 | |
 |
24C177 | - | 56 | Steel | 2.7-2.9 | - | 1/4 | 60 | B | €294.33 | |
 |
2N982 | High Efficient | 182/184 | Steel | 6.8-6.2/3.1 | - | 2 | 60 | F | €994.46 | |
 |
2N983 | High Efficient | 213/215 | Steel | 8.7-7.9/3.9 | - | 3 | 60 | F | €870.26 | |
 |
2N984 | High Efficient | 213/215 | Steel | 14.1-12.7/6.4 | - | 5 | 60 | F | €1,853.87 | |
 |
2N985 | High Efficient | 254U/256U | Steel | 20.8-18.8/9.4 | - | 7.5 | 60 | F | €1,412.99 | |
 |
2N986 | High Efficient | 254U/256U | Steel | 27.2-25.7/12.9 | - | 10 | 60 | F | €1,471.42 |
