DESTACO 307-U Horizontal Hold Down Clamp, 1.89 Inch Clamp Arm, 350 lb

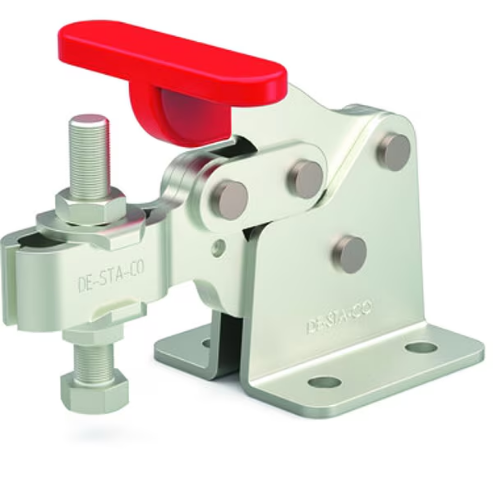

Destaco 307-U horizontal hold down clamp is suitable for holding down workpieces against flat surfaces in manufacturing and woodworking facilities. This toggle clamp is ideal for applications that require working on the same workpiece repeatedly. It features a low profile design that minimises the space requirement for clamp installation & usage, thereby enabling ease of operation in confined spaces. The clamp's handle can be operated from behind or either side for user convenience. Additionally, its U shaped bar is designed for enabling quick spindle adjustment along the holding bar length. This enables the worker to adjust the toggle clamp according to the size of the workpiece. Destaco 307-U horizontal hold down clamp features a neoprene spindle that keeps the workpiece stationary throughout the operation & prevents it from loosening / slipping. It has carbon steel construction for ensuring strength and preventing bending / breaking under heavy loads. Destaco horizontal hold down clamp comes with a flanged style base for enabling easy installation on flat surfaces. Destaco 307 Series clampsare also offered in stainless steel constructed and Toggle Lock Plus enabled variants on Raptor Supplies.

Uses:

• Destaco 307-U horizontal hold down toggle locking clamp is designed for performing various clamping tasks including assembly & testing operations, checking closures, woodworking, light machining and food & packaging operations.

Features:

• Destaco 307-U horizontal hold down toggle locking clamp features a low profile design that minimises the space requirement for clamp installation & usage, thereby enabling ease of operation in confined spaces.
• The carbon steel construction of this toggle clamp provides rigidity during operation & the zinc plated finish ensures abrasion resistance.
• Destaco horizontal hold down toggle locking clamp's compact handle can be operated from behind or either side for user convenience.
• Its U shaped bar is designed for enabling quick spindle adjustment along the holding bar length.
• Destaco horizontal hold down clamp comes with a flanged style base for enabling easy installation on workbenches.
• It features a neoprene spindle that keeps the workpiece stationary throughout the operation & prevents it from loosening / slipping.
• The bright coloured plastic handle ensures easy gripping and minimises user fatigue over prolonged use.

Compatible Accessories:

• Destaco 2007208-M flat tip bonded neoprene spindle is used for replacing broken / worn out spindles on Destaco 307-U horizontal hold down toggle locking clamps.
• Destaco 507107 flanged washer is used with this clamp to maintain sufficient load for tightening bolts & gaskets of the flange.

Standards and Approvals:

• Destaco 307-U horizontal hold down toggle locking clamp is manufactured in compliance with ISO 9001:2015 & ISO 14001:2015 international industry standards.

Installation:

• Destaco 307-U horizontal hold down toggle locking clamp has a flanged base with two pairs of mounting holes that enables secure installation on flat surfaces / workbenches. Upon requirement, this toggle clamp can be easily removed by simply unscrewing the screws using a simple screwdriver.

Frequently Asked Questions:

Q. Does the brand offer horizontal hold down clamps in styles?

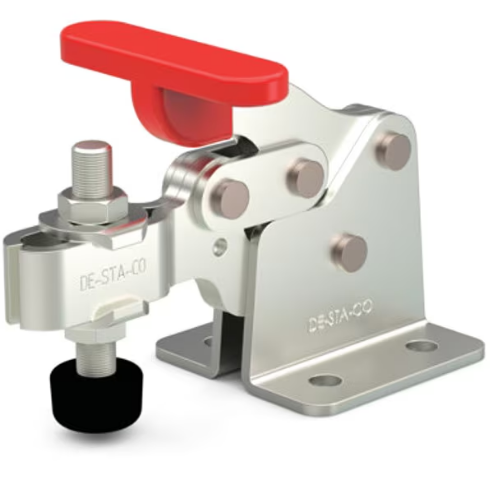

A. Yes, in addition to this flanged base U bar variant, Destaco also offers Toggle Lock Plus enabled (Destaco 305-UR & Destaco 309-UR) horizontal clamps.

Q. What is a horizontal hold down clamp?

A. Destaco horizontal hold down clamps are designed for keeping a workpiece stationary against a flat surface / workbench for various industrial applications like metalworking and woodworking.

Q. How do horizontal hold down clamps work?

A. Some U bar style clamping arm clamps, such as Destaco 307-U, feature a flat tip bonded neoprene spindle that is manually operated using a handle / lever. This handle movement pushes the spindle against the workpiece and prevents it from moving mid operation, thereby ensuring secure clamping.

Q. What does holding capacity mean in terms of clamps?

A. The holding force or the holding capacity depicts the clamp's capability to hold down sheet metal or an equipment on assembly lines or during other manufacturing processes.

Q. Which grease is recommended for use with Destaco clamps when rebuilding?

A. For ensuring smooth operation & durability of mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.

Q. What does the red colour of the handle of Destaco clamps mean?

A. The red coloured handles alert the user about the location of the operating handle and when he should grab it. The red colour has no additional advantage to the working of the clamps.

Q. What is the difference between a vertical & horizontal toggle clamp?

A. The difference lies in the orientation of the handle when the clamp is in the locked position. A vertical clamp handle is vertically oriented (perpendicular to the base) when in locked position, while in the case of a horizontal toggle clamp, it is horizontally oriented (parallel to the base).
