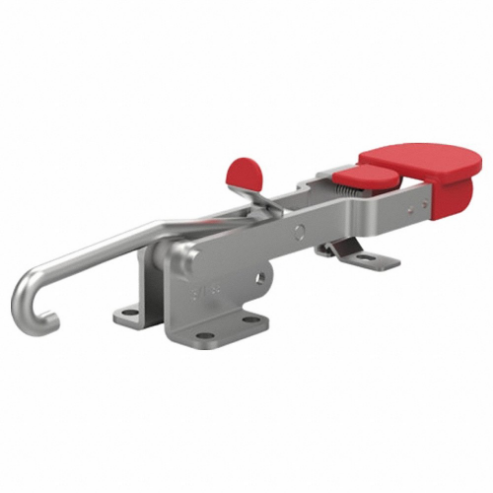

DESTACO 371-R Pull Action Latch Clamp, Flanged Base, 750 lb Load Capacity

Destaco 371-R pull action latch clamp is used for quick clamping of doors, lids or access covers onto drums / containers / vessels. It is equipped with a handle that is appropriately aligned with the opposing latch. The handle can be pulled back down into the locking position, making it ideal for closing objects such as mold closures and latching doors. Destaco 371-R pull action latch clamp applies the force in a direct, straight line direction that allows the unit to toggle in the forward and rear positions. This is particularly useful in situations where the operator occasionally requires the clamp, rather than to push forward and apply the force, to pull forward and apply the force. Additionally, this latch clamp offers an advantage when the clamp is mounted vertically with the handle in the back position, stopping components from falling forwards, as the handle is behind the component in the locked position. Destaco 371-R pull action latch clamp is capable of holding loads up to 750 lb and features a flanged base with threaded holes for secure installation. It comes with the Toggle Lock Plus feature to prevent accidental opening of the clamp. This pull action latch clamp is also supplied with a latch plate and a thumb control lever for flexible single handed operation. You can order these latch clamps with longer hooks (25, 50 or 100 mm) by simply adding -M-25, -M-50 or -M-100 at the end of the model number.

Uses:

Destaco 371-R pull action latch clamp is ideal for a variety of applications such as holding, securing, assembling & moulding lids, doors, drums, access covers, containers & vessels in the automotive, aerospace and food & packaging industries.

Features:

• Destaco 371-R pull action latch clamp features steel construction for durability and corrosion resistance on exposed surfaces.
• This pull action latch clamp is capable of withstanding loads up to 750 lb.
• Destaco 371-R pull action latch clamp is equipped with a threaded J hook pull bar for easy adjustment.
• This pull action latch clamp has a patented thumb control lever for single handed operation.
• Destaco 371-R pull action latch clamp comes with the Toggle Lock Plus feature to prevent accidental opening due to vibrations.
• The ratio of exerting force (pushing) to applied force (pulling) is 36:1.

Compatible Accessories:

• Destaco 371215: These Destaco replacement hook assemblies are designed for the brand's 330, 351, 371 & 381 Series clamps. They have longer hooks than standard ones and can be found by adding -M-25 (25 mm), -M-50 (50 mm) or -M-100 (100 mm) suffixes to the MPN. They include jam nuts and lock nuts for quick and secure fastening.

Standards and Approvals:

• Destaco 371-R pull action latch clamp is compliant with ISO 14001:2015 & ISO 9001:2015 standards for user safety, environmental health and efficient performance of the clamp.

Installation:

• Destaco 371-R pull action latch clamp features a flanged base with threaded holes for quick & secure installation.

Frequently Asked Questions:

Q. Is Destaco 371-R pull action latch clamp a manual clamp?

A. Yes, Destaco 371-R pull action latch clamp is a manual quick clamp designed for machining fixtures. It offers quick & easy clamping action by turning the handle.

Q. How do latch clamps work?

A. These pull action latch clamps depend on 3 main components - a handle for operating the tool, a clamping arm for contact point between the work item & clamp, and a base for attaching the clamp to the surface. Once the simple linkage system of the clamp is put in the over-centre position, the handle is pulled horizontally for creating force parallel to the base and squeeze holding the work items.

Q. What does clamping force mean?

A. Clamping force is the amount of force actually applied to a workpiece by closing & locking the clamp. It is normally less than the stated holding capacity. The actual clamping force depends on various factors, including cylinder bore, cylinder area, spindle position (clamping arm length) and available air pressure. In most cases, the clamping force is approximately 2 to 3 times the force exerted by a pneumatic cylinder.

Q. What does holding capacity mean in terms of clamps?

A. The holding capacity or the holding force depicts the clamp's capability to hold down equipment or sheet metal on assembly lines or during similar manufacturing processes.

Q. What is the significance of the red colour of the handle of Destaco clamps?

A. There is no such significance of the colour of the clamp's handle, as it only represents a recognisable area. This helps operators in finding the handle quickly & easily.

Q. Which grease is ideal for Destaco clamps for their rebuilding?

A. A coupling grease like Mobil XTC should be used when dealing with Destaco mechanical clamps, while the Magnalube G grease is great for use with pneumatic cylinder seals.

Q. Does Destaco supply any water resistant clamp sensors?

A. Yes, Destaco also supplies inductive sensors designed in accordance with IP65 standards to ensure protection from powerful hydraulic jets, dust & heavy rain.
