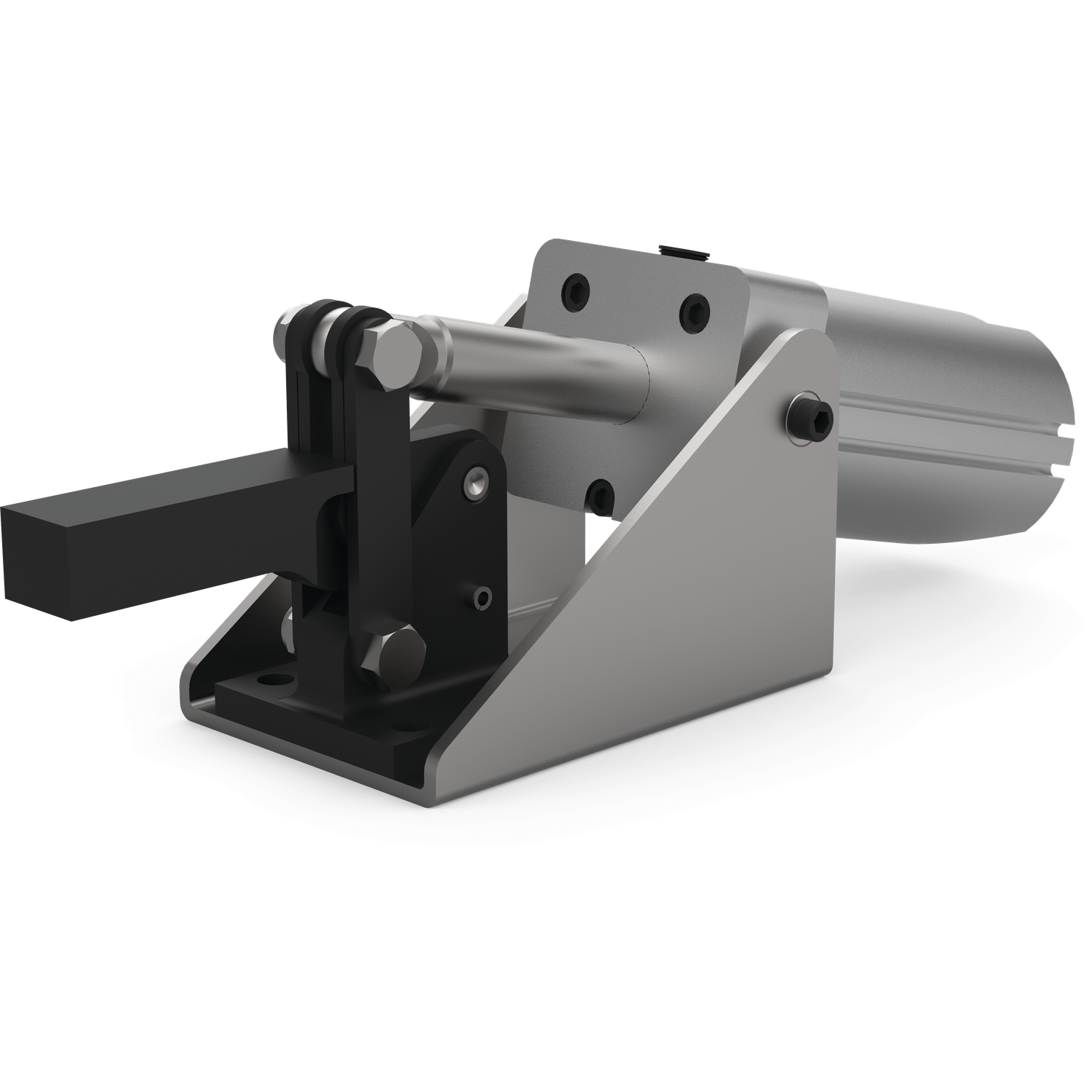

DESTACO 846 Pneumatic Hold Down Clamp, 750 lb Holding Capacity, Steel

Destaco 846 pneumatic hold down toggle clamp includes over-focus switch activity linkage joined with a pneumatic cylinder to deliver an effectively versatile device. This completely independent clamp requires just a pressure source for user safety. This Destaco pneumatic toggle clamp is sensor ready for both round and T slot style sensors. It includes in-built flow restriction to eliminate the need for external flow controls. This clamp accompanies a sturdy clamping arm for keeping workpieces safely set up and handling loads up to 750 lb. The clamping arm allows more extensive leeway to simple stacking utilising a tough helical cam component worked by a double acting air cylinder. It features a large opening angle that guarantees simple part evacuation.

Uses:

Destaco 846 pneumatic hold down clamp is integrated with a broad combination of features, making it adaptable to applications such as gripping, clamping, system checking, fixturing & testing, welding, CNC machining and locating. It is ideal for the aerospace, automotive and food & packaging industries.

Features:

• Destaco 846 pneumatic hold down toggle clamp is integrated with a built-in flow restriction mechanism that eliminates the need for external flow controls.
• It comes completely assembled and ready to operate.
• This pneumatic toggle clamp is equipped with an ergonomic handle grip that offers operator comfort.
• Destaco 846 pneumatic hold down toggle clamp is sensor ready to accommodate T-slot (8EA-109-1) or round (810169) sensors.
• This clamp is equipped with a magnetic piston ring that allows precise position sensing.
• It has a large opening angle of 97 degrees that ensures easy component removal.
• The large, solid clamping arm can be easily modified to suit application requirements.
• Destaco 846 pneumatic hold down toggle clamp features holding capacity up to 750 lb.

Compatible Accessories:

• Destaco 810169: These round reed switches are designed for use with Destaco 846 pneumatic toggle clamp and feature a quick disconnect mechanism with an LED for easy set-up. These IP67 rated switches can be activated by a magnetic ring installed on the clamp's cylinder. They are designed to be mounted to cylinders with 4 mm round grooves.
• Destaco 8EA-109-1: These T-slot reed switches have a quick disconnect mechanism and are designed to be mounted to cylinders with T-slot grooves. They are IP67 rated and get activated by a magnetic ring installed on the clamp's cylinder.
• Destaco 846CYL: These replacement cylinder assemblies are designed to replace faulty cylinders in case the old one wears out or is defective.

Standards and Approvals:

• Destaco 846 pneumatic toggle clamp is constructed according to international standards like ISO 14001:2015 & ISO 9001:2015 for ensuring environmental health & safety, and efficient performance of the clamp.

Installation:

• Destaco 846 pneumatic toggle clamp comes with threaded holes on the base for easy and secure installation.

Frequently Asked Questions:

Q. How does a pneumatic hold down toggle clamp work?

A. The toggle clamp actuates against the workpiece and stretches or compresses the equipped linkages for keeping the workpiece stationary.

Q. What does the clamp's holding capacity signify?

A. The holding capacity or holding force signifies the capability of a clamp to hold down mechanical equipment or sheet metal during automotive part assembling or similar manufacturing processes.

Q. What is the significance of the red colour of the handle of Destaco clamps?

A. There is no such significance of the red colour of the clamp handle, as it only depicts a recognisable area. This helps operators in finding the handle easily & quickly.

Q. What does clamping force mean?

A. Clamping force is the amount of force actually applied to the workpiece by closing & locking the clamp. It is normally less than the stated holding capacity. The actual clamping force depends on various factors, such as cylinder bore, cylinder area, spindle position (clamping arm length) and available air pressure. In most cases, the clamping force is approximately 2 to 3 times the force exerted by a pneumatic cylinder.

Q. How to measure the pressure required by a toggle clamp?

A. Destaco hold down toggle clamps apply downward clamping force by increasing the applied load via toggle mechanism. You can see the clamping force on the packaging itself, which is specified in Newton (N). Use this information with the size of the toggle clamp to work out the degree of pressure that the tool will have to exert on a piece of wood. The larger the piece of wood, the greater the pressure required.
