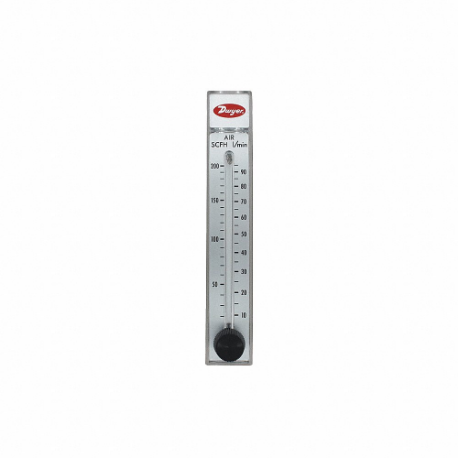

| Item | Flowmeter |
| Accuracy | 3% |
| Body Material | Polycarbonate |
| Connection Size | 1/4" |
| Connection Type | FNPT |
| Flow Rate Range | 5-50 SCFH |
| Flowmeter Type | Variable Area |
| For Pipe Size | 1/4" |
| Includes Flow Rate Adjustment Knob | Yes |
| Max. Flow Rate | 50 SCFH |
| Max. Media Temp. | 130°F |
| Max. Operating Pressure | 100 psi |
| Media Temp. Range | 130°F |
| Media Type | Air |
| Min. Flow Rate | 5 SCFH |
| Mounting Location | Panel Mount |
| Mounting Orientation | Vertical |
| O-ring Material | Buna N, Neoprene |
| Overall Height | 8 4/5" |
| Overall Length | 3 3/5" |
| Overall Width | 1 1/2" |
| Process Connection Size | 1/4" |
| Process Connection Type | FNPT |
| Unit Of Measure | Gal., L |
| Wetted Material | Aluminum, Buna N, Glass, Nickel Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide |
| Wetted Material Grade | Grade K500 |
| Ship weight (kg) | 0.225 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
