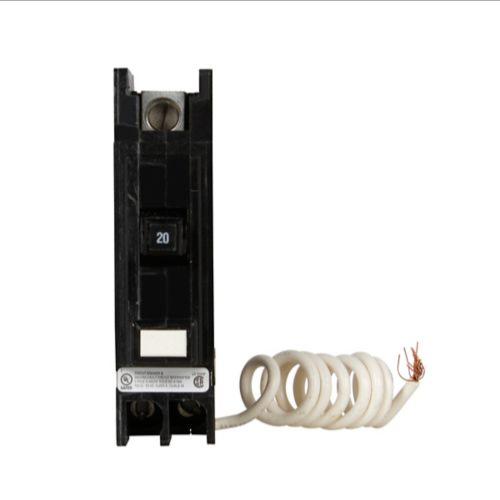

EATON QCGFT1020 Qc Gfci Circuit Breaker, Industrial Circuit Breaker, 25 A, 10 Kaic

Eaton QCGFT1020 circuit breaker is a miniature unit used in power distribution systems to open a circuit under short circuit or overload conditions. It is ideal for panelboards, switchboards, motor control centres and busway applications.

Features:

• Eaton QCGFT1020 circuit breaker has a feed-thru design for panelboard mounting with one end cable-in & other end cable-out configuration.
• It is equipped with a toggle actuator to indicate tripping & allow manual tripping operation, in addition to line & load side lug terminals for accommodating aluminium or copper wires.
• This unit offers single-pole connection and ground fault protection.
• It delivers a 10 kAIC interrupt rating and 20A current rating.
• The model comes with a bell alarm or auxiliary switch indicator.

Standards and Approvals:

• UL
• CSA

Frequently Asked Questions:

Q. How to tell if my circuit breaker is malfunctioning?

A.

• Breaker trips frequently.
• Burning smell from the circuit box.
• Scorch marks or other signs of damage on the box.
• Breaker does not stay in the reset mode.

Q. Why do circuit breakers trip?

A.

• Circuit overloads
• Short circuits
• Ground fault surges
• Defective circuit breaking
• Arc faults

Q. What are the things to inspect while using a circuit breaker?

A.

• Remove dust or moisture from the surface of the circuit breaker with a vacuum or cloth. Do not blow debris into the circuit breaker.
• Switch to ON and OFF multiple times to ensure that the mechanical linkages are free.
• Check base, operating handle and cover for any cracks, discolouration & chipping.
• Check connectors and terminals for signs of overheating and looseness.
• Check the mounting hardware and the area where it is installed.
