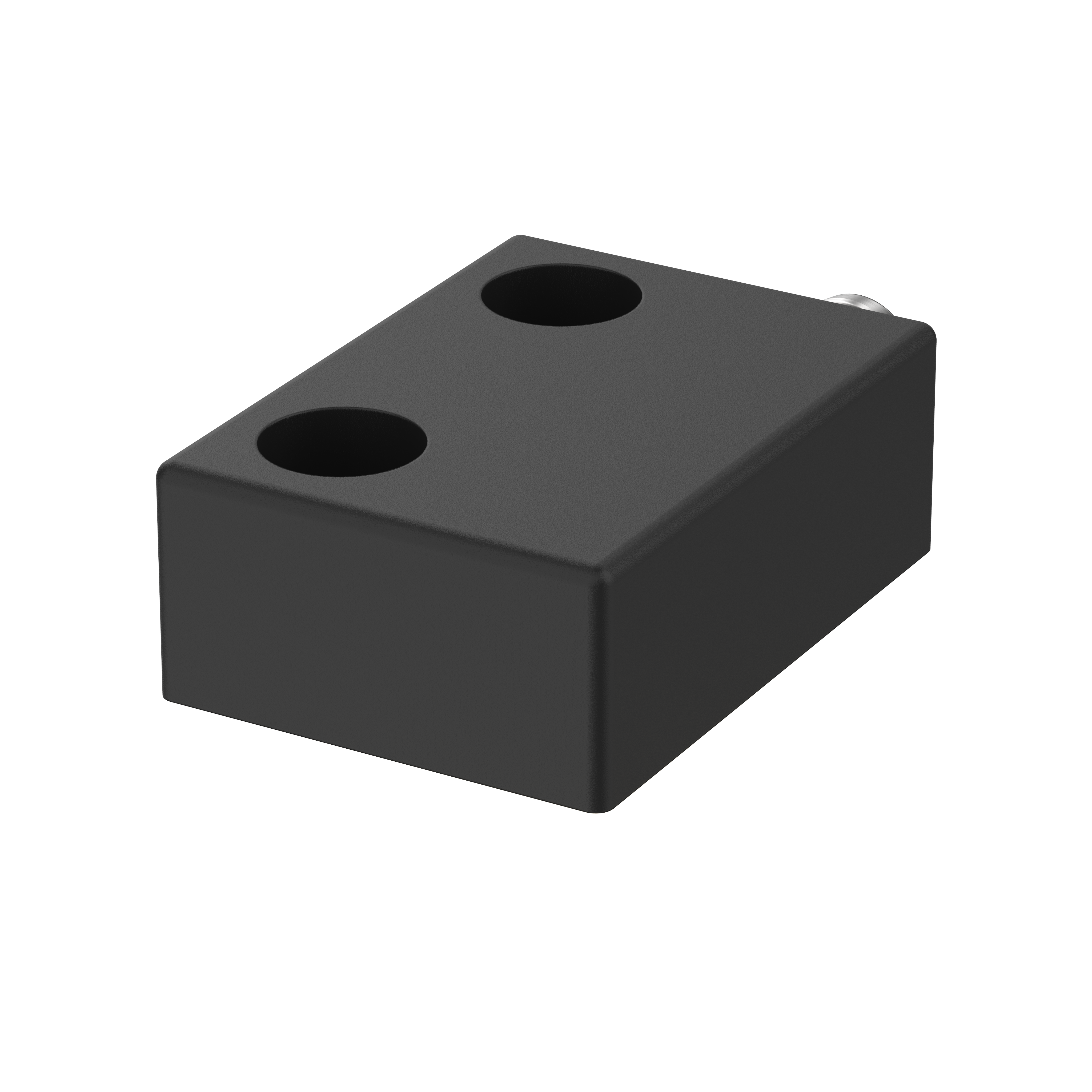

ELOBAU 153262AFA Safety Sensor, Magnetically Actuated, N.O./N.O., Built In Connector, M8 Size

Item: CL7MUL Model: 153262AFA
Limited Availability
Request a Quote

Payment Options Available

Product Specifications:

ItemSensor
Actuation TypeFront
Assured Switch Off Distance10 mm
Assured Switching Distance3 mm
Cable MaterialPVC
Connector SizeM8 x 1
Connector Type3 Pin
Contact FormNO/ NO
Housing ColorSilver
Housing DesignCuboid
Housing MaterialPBT
Installation Opening4.5 mm
Ip RatingIp67
Max. Operating Temp.75 Deg. C
Max. Storage Temp.75 Deg. C
Max. Switching Current0.1A
Max. Switching Voltage28.8V DC
Min. Operating Temp.-25 Deg. C
Min. Storage Temp.-25 Deg. C
Min. Switching Voltage19.2V DC
Minimum Switching Distance0.5 mm
Mounting Typescrewed from above
Series Resistor22 Ohm
Size36 mm x 26 mm x 13 mm
StructureTwo-Channel
Switching Frequency5 Hz
Switching PrincipleMagnetic
TechnologyReed

Product Variants

ProductModelActuation FrequencyActuation TypeAssured Switch Off DistanceAssured Switching DistanceCable LengthCable MaterialCable SizeCannot Be Mounted FlushPrice
ELOBAU 171V62AY Safety Sensor, Magnetically Actuated, N.O./N.O., Built In Connector, M12 Size | CL7MND 171V62AY-Front16 mm4 mm---Yes-
RFQ
ELOBAU 114270A0D Safety Sensor, Magnetically Actuated, N.O./N.C, Built In Connector, M8 Size | CL7MNX 114270A0D-Front19 mm7 mm-----
RFQ
ELOBAU 171V62VY Safety Sensor, Magnetically Actuated, N.O./N.O., Built In Connector, M12 Size | CL7MPA 171V62VY-Front16 mm4 mm---Yes-
RFQ
ELOBAU 114270-5 Safety Sensor, Magnetically Actuated, N.O./N.C. 5m Cable | CL7MPC 114270-5-Front19 mm7 mm1 mPVC---
RFQ
ELOBAU 153V62-10 Safety Sensor, Magnetically Actuated, N.O./N.O., 10m Cable | CL7MPF 153V62-10---------
RFQ
ELOBAU 165270-5 Safety Sensor, Magnetically Actuated, N.O/N.C., 5m Cable | CL7MPH 165270-5----1 mPVC---
RFQ
ELOBAU 120272-5 Safety Sensor, Magnetically Actuated, N.O/N.C., 5m Cable | CL7MPJ 120272-5-Front22 mm4 mm1 mPVC---
RFQ
