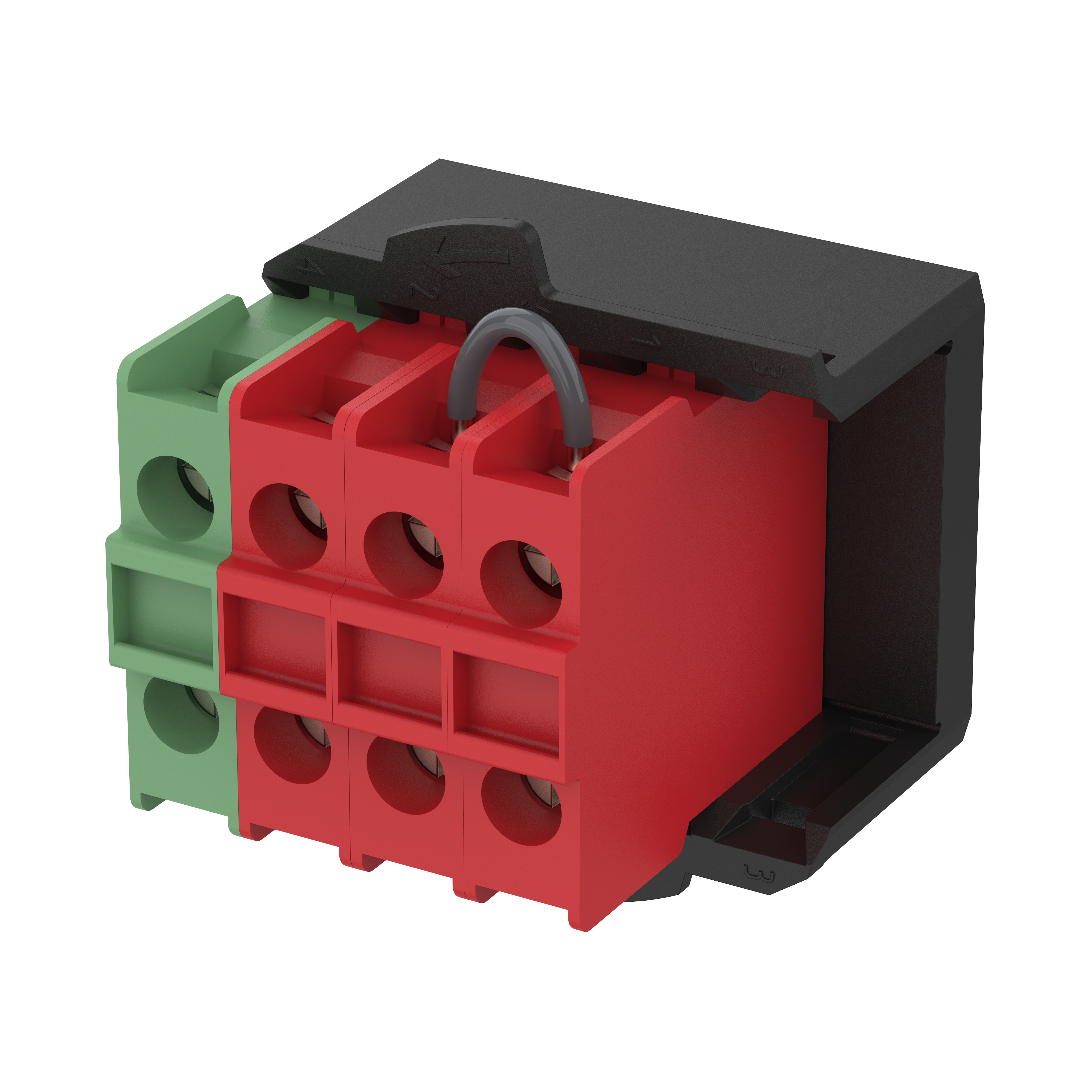

| Item | Element |
| Actuation Path | 6 mm |
| Bounce Time | 10 ms |
| Contact Material | Silver Nitrate |
| Conv. Thermal Continuous Current | 16A |
| Illumination | No |
| Installation | from below |
| Max. Connection Cross Section | 2.5 sq. mm |
| Max. Contact Resistance | 0.02 Ohm |
| Max. Operating Temp. | 85 Deg. C |
| Max. Storage Temp. | 85 Deg. C |
| Mechanical Cycle | 1 |
| Min. Operating Temp. | -30 Deg. C |
| Min. Storage Temp. | -50 Deg. C |
| Min. Switching Current | 0.01A |
| Min. Switching Voltage | 5V AC/DC |
| Mounting Type | Inserted/Latched |
| Number Of Safety Contacts (positively Opening) | 2 |
| Positive Opening Path | 3 mm |
| Protection Class | Class II |
| Rated Current Ie (inductive Load) | 6/ 10A |
| Rated Current Ie (ohmic Load) | 10/ 16A |
| Rated Insulation Voltage | 600V |
| Rated Operating Current (ie) | 3000/ 1600/ 120/ 200/ 400/ 2000 mA |
| Rated Operating Voltage | 240/ 440/ 250/ 125/ 60/ 24V |
| Rated Voltage | 250/ 440VAC |
| Service Life | 1000000 |
| Size | 43.6 mm x 50.8 mm x 27.3 mm |
| Utilization Category | 15-AC/-13-DC |
