| Item | Hydraulic Cylinder |
| Base Mounting Holes Bolt Circle | 3.15" |
| Base Mounting Holes Thread Size | M6 |
| Base To Advance Port | 1.31" |
| Capacity | 30 ton. |
| Collapsed Height | 11.06" |
| Couplers | CR400 Coupler |
| Cylinder Bore | 2.95" |
| Cylinder Effective Area Advance | 6.85 sq. in. |
| Cylinder Return Type | Single-Acting, Spring Return |
| Extended Height | 16.98" |
| Finish | Anodized |
| Material | Aluminum |
| Max. Cylinder Capacity Advance | 34.2 short ton. |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity Advance | 40.48 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.43" |
| Optional Tilt Saddle Dia. | 2.17" |
| Outside Dia. | 3.94" |
| Plunger Dia. | 2.36" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-rach1006.pdf |
| Saddle Diameter | 1.61" |
| Saddle Max. Tilt Angle | 5 Deg. |
| Saddle Protrusion From Plunger | 0.12" |
| Stroke | 5.91" |
| Ship weight (kg) | 6.9525 |
| Ship height (cm) | 28.09 |
| Ship length (cm) | 23.37 |
| Ship width (cm) | 10.01 |
| HS code | 8412210030 |
| Country of Origin | IN |
| Product | Model | Base Mounting Holes Bolt Circle | Base Mounting Holes Thread Size | Base To Advance Port | Capacity | Cylinder Bore | Cylinder Effective Area Advance | Max. Cylinder Capacity Advance | Oil Capacity Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RAC1006 | 5.91" | M10 | 1.82" | 100 ton. | 5.32" | 22.19 sq. in. | 110.9 short ton. | 131.14 cu. in. | €5,179.41 | |
|
RAC304 | 3.15" | M6 | 1.31" | 30 ton. | 2.95" | 6.85 sq. in. | 34.2 short ton. | 26.99 cu. in. | €2,085.28 | |
|

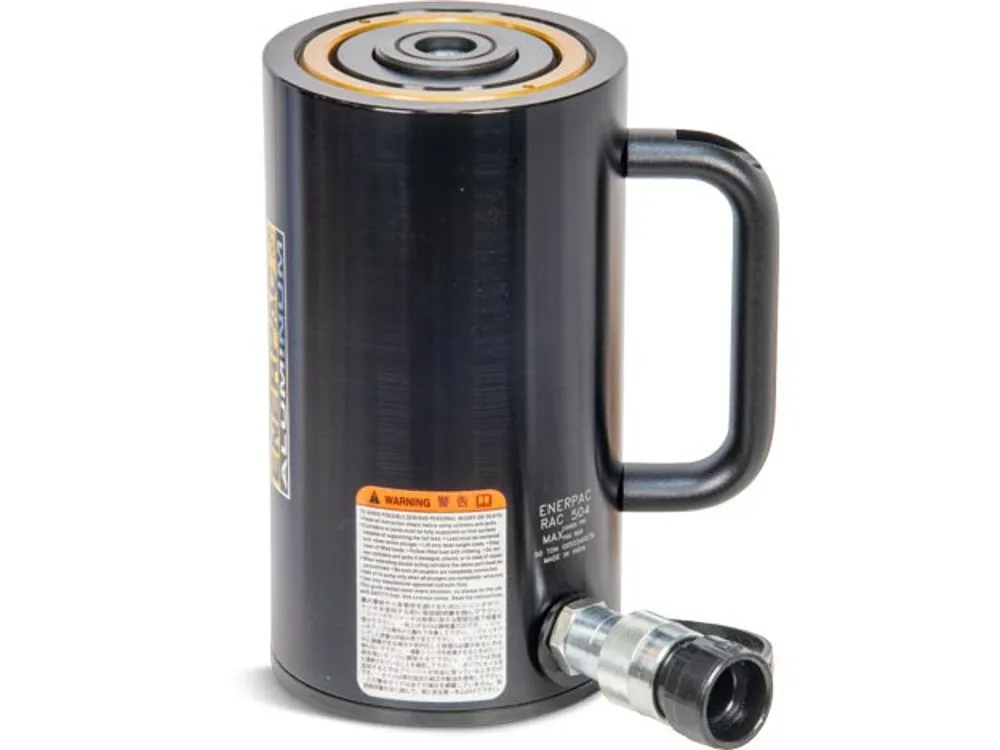

RAC504 | 4.33" | M6 | 1.19" | 50 ton. | 3.74" | 10.99 sq. in. | 54.9 short ton. | 43.3 cu. in. | €2,337.03 | |
|
RAC506 | 4.33" | M6 | 1.19" | 50 ton. | 3.74" | 10.99 sq. in. | 54.9 short ton. | 64.95 cu. in. | €2,476.79 | |
 |
RAC1008 | 5.91" | M10 | 1.82" | 100 ton. | 5.32" | 22.19 sq. in. | 110.9 short ton. | 174.64 cu. in. | €6,454.82 | |
|
RAC1506 | 7.87" | M10 | 2.02" | 150 ton. | 6.69" | 35.18 sq. in. | 175.9 short ton. | 207.91 cu. in. | €9,038.05 | |
 |

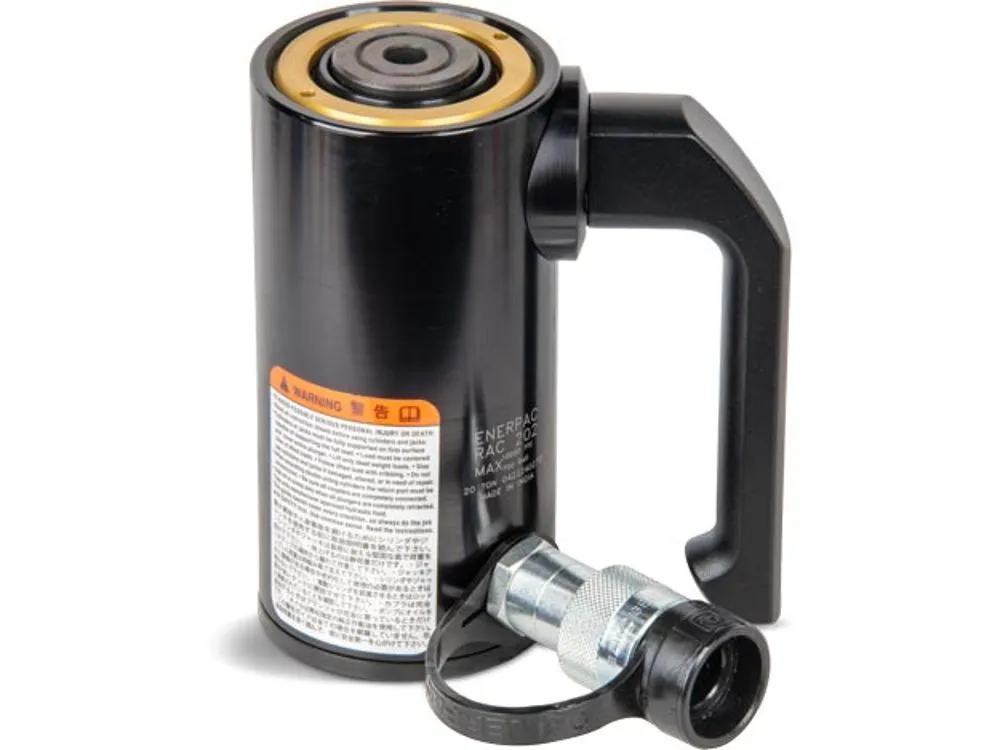

RAC202 | 2.76" | M6 | 1.07" | 20 ton. | 2.48" | 4.83 sq. in. | 24.2 short ton. | 9.52 cu. in. | €1,547.53 |
