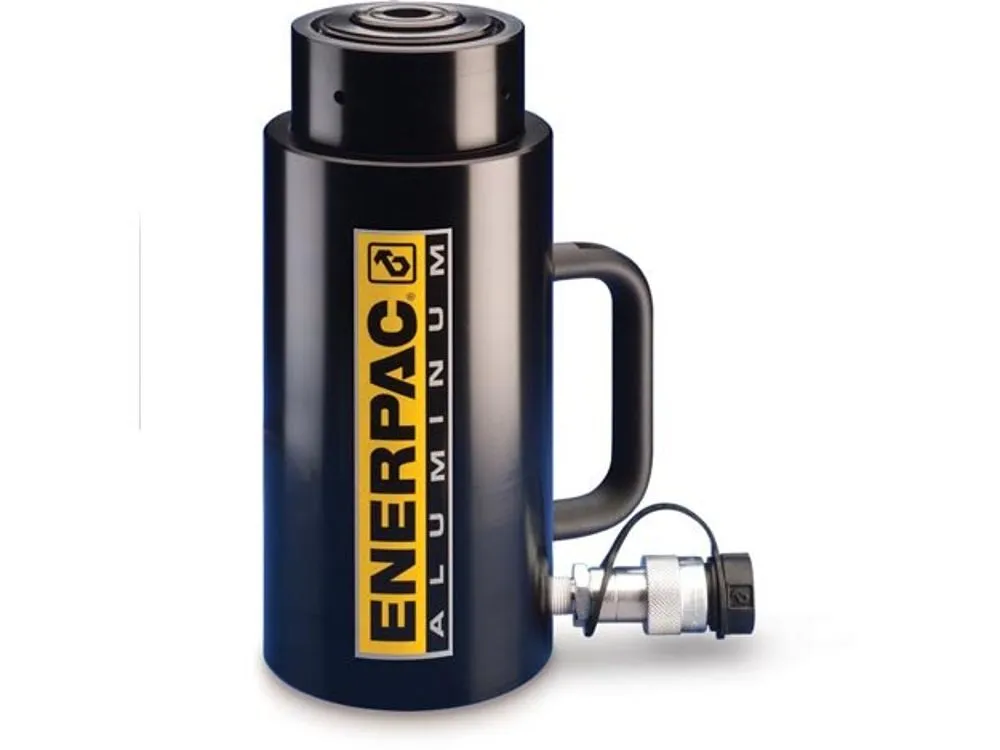

| Item | Hydraulic Cylinder |
| Base Mounting Holes Thread Size | M10 |
| Base To Advance Port | 1.82" |
| Capacity | 100 ton. |
| Collapsed Height | 13.62" |
| Couplers | CR400 Coupler |
| Cylinder Bore | 5.32" |
| Cylinder Effective Area Advance | 22.19 sq. in. |
| Cylinder Return Type | Single-Acting, Spring Return |
| Extended Height | 17.57" |
| Finish | Anodized |
| Lock Nut Height | 2.95" |
| Material | Aluminum |
| Max. Cylinder Capacity Advance | 110.9 short ton. |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity Advance | 87.43 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.75" |
| Optional Tilt Saddle Dia. | 3.82" |
| Outside Dia. | 7.09" |
| Plunger Dia. | 4.33" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-rach1006.pdf |
| Saddle Diameter | 3.7" |
| Saddle Max. Tilt Angle | 5 Deg. |
| Saddle Protrusion From Plunger | 0.12" |
| Stroke | 3.94" |
| Ship weight (kg) | 29.88 |
| Ship height (cm) | 39.62 |
| Ship length (cm) | 68.58 |
| Ship width (cm) | 20.7 |
| HS code | 8425420000 |
| Country of Origin | IN |
| Model | Base Mounting Holes Thread Size | Base To Advance Port | Capacity | Cylinder Bore | Cylinder Effective Area Advance | Lock Nut Height | Max. Cylinder Capacity Advance | Oil Capacity Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RACL504 | M6 | 1.19" | 50 ton. | 3.74" | 10.99 sq. in. | 2.95" | 54.9 short ton. | 43.3 cu. in. | €3,504.15 | |
| RACL506 | M6 | 1.19" | 50 ton. | 3.74" | 10.99 sq. in. | 2.95" | 54.9 short ton. | 64.95 cu. in. | €3,642.99 | |
| RACL1002 | M10 | 1.82" | 100 ton. | 5.32" | 22.19 sq. in. | 2.95" | 110.9 short ton. | 43.71 cu. in. | €5,180.33 | |
| RACL1006 | M10 | 1.82" | 100 ton. | 5.32" | 22.19 sq. in. | 2.95" | 110.9 short ton. | 131.14 cu. in. | €5,992.97 | |
| RACL1502 | M10 | 2.02" | 150 ton. | 6.69" | 35.18 sq. in. | 3.15" | 175.9 short ton. | 69.3 cu. in. | €5,962.43 | |
| RACL1504 | M10 | 2.02" | 150 ton. | 6.69" | 35.18 sq. in. | 3.15" | 175.9 short ton. | 138.61 cu. in. | €6,847.26 | |
| RACL1506 | M10 | 2.02" | 150 ton. | 6.69" | 35.18 sq. in. | 3.15" | 175.9 short ton. | 207.91 cu. in. | €9,565.62 |
