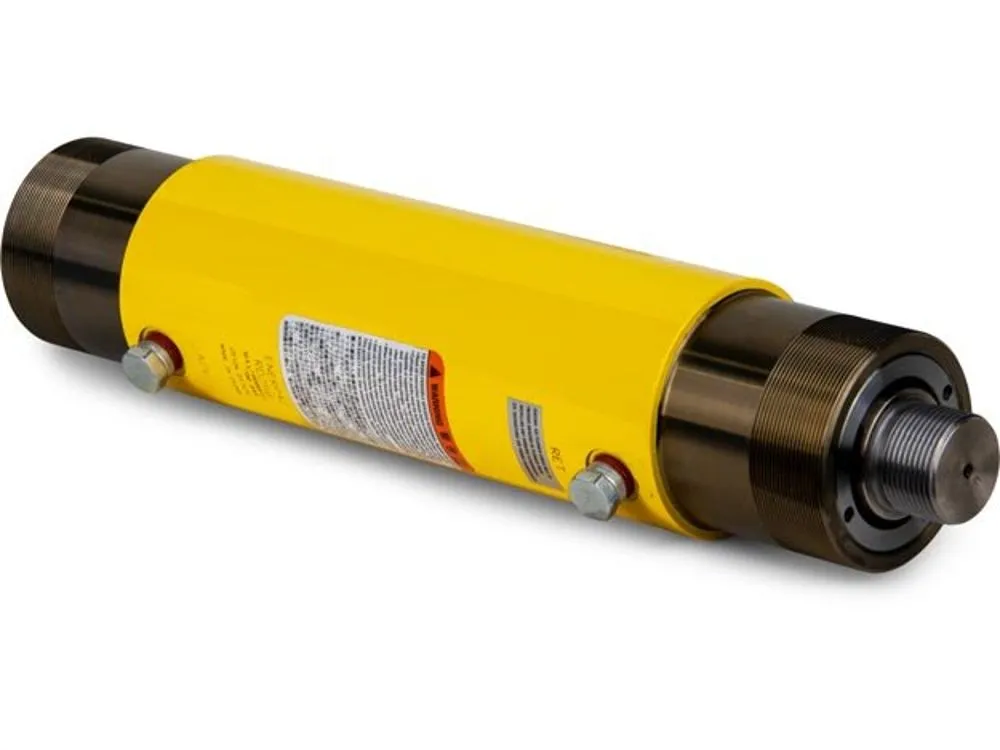

| Item | Hydraulic Cylinder |
| Base To Advance Port | 3.5" |
| Capacity | 25 ton. |
| Clevis Eye Mounting Dimension Length | 20.86" |
| Clevis Eye Mounting Dimension M | 2.09" |
| Clevis Eye Mounting Dimension Overall Length | 27.11" |
| Collapsed Height | 16.69" |
| Collar Thread Length | 1.13" |
| Collar Thread Size | 3 1/4"-16 |
| Cylinder Bore | 2.5" |
| Cylinder Capacity Advance At 5000 Psi | 24500 lbs. |
| Cylinder Capacity Retract At 5000 Psi | 10750 lbs. |
| Cylinder Effective Area Advance | 4.91 sq. in. |
| Cylinder Effective Area Retract | 2.15 sq. in. |
| Cylinder Return Type | Double Acting, Hydraulic Return |
| Extended Height | 22.94" |
| Finish | Painted |
| Internal Base Thread Length | 1.02" |
| Internal Base Thread Size | 2 3/4"-16 |
| Length | 15.63" |
| Link Width | 2.75" |
| Material | Steel |
| Max. Cylinder Capacity Advance | 25 short ton. |
| Max. Cylinder Capacity Retract | 11 short ton. |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity Advance | 30.68 cu. in. |
| Oil Capacity Retract | 13.42 cu. in. |
| Outside Dia. | 3.63" |
| Plunger Dia. | 1.88" |
| Plunger Outside Thread Size | 11/2"-12 |
| Plunger Thread Length | 1" |
| Plunger Type | Solid |
| Saddle Protrusion From Plunger | 1.06" |
| Stroke | 6.25" |
| Top To Retract Port | 3.5" |
| Ship weight (kg) | 16.8525 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 51.44 |
| Ship width (cm) | 15.24 |
| HS code | 8412210030 |
| Country of Origin | CN |
| Model | Base To Advance Port | Capacity | Clevis Eye Mounting Dimension Length | Clevis Eye Mounting Dimension M | Clevis Eye Mounting Dimension Overall Length | Collar Thread Length | Cylinder Bore | Cylinder Capacity Advance At 5000 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

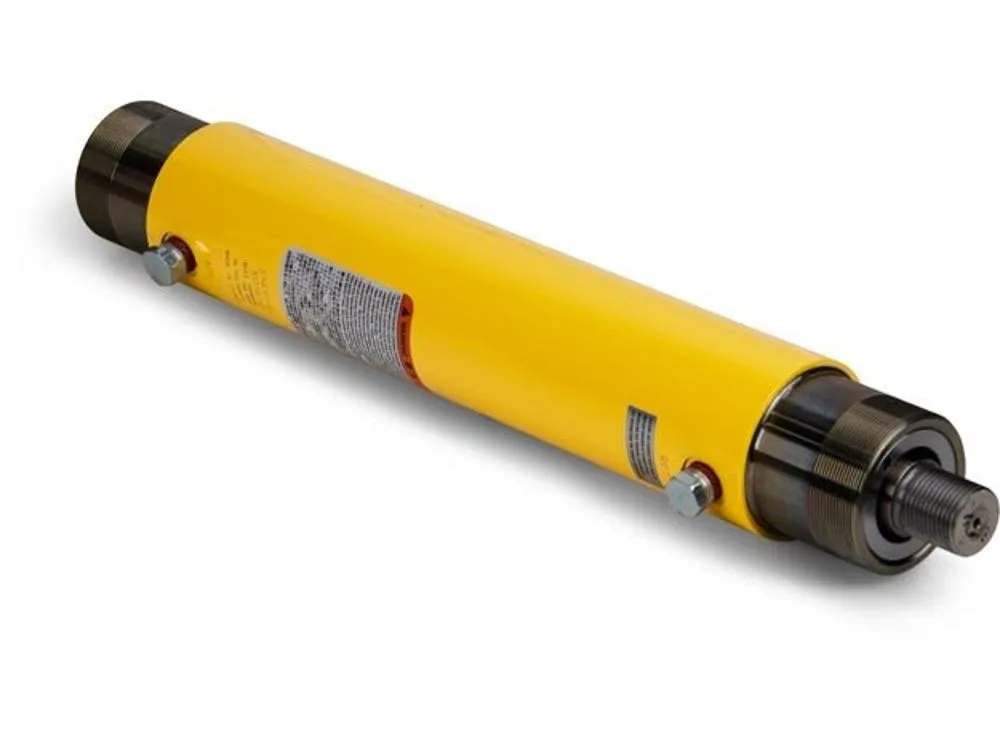

| RD1610 | 2.9" | 16 ton. | 23.32" | 2.05" | 33.57" | 0.88" | 2" | 15500 lbs. | €2,714.65 | |

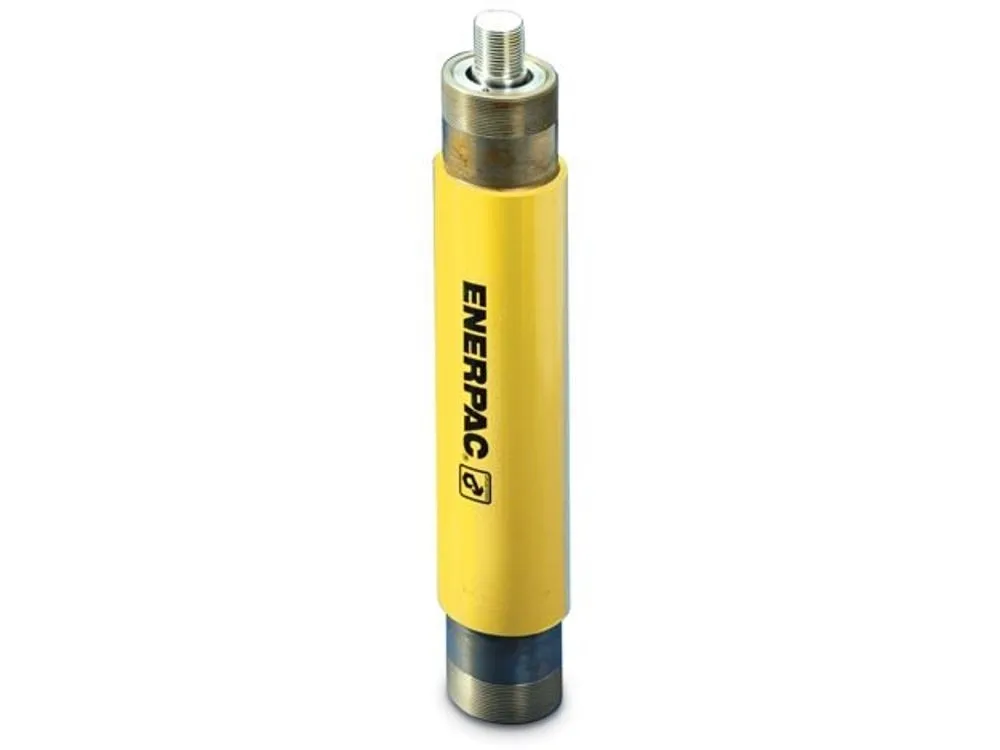

| RD166 | 2.9" | 16 ton. | 19.32" | 2.05" | 25.57" | 0.88" | 2" | 15500 lbs. | €2,411.07 | |

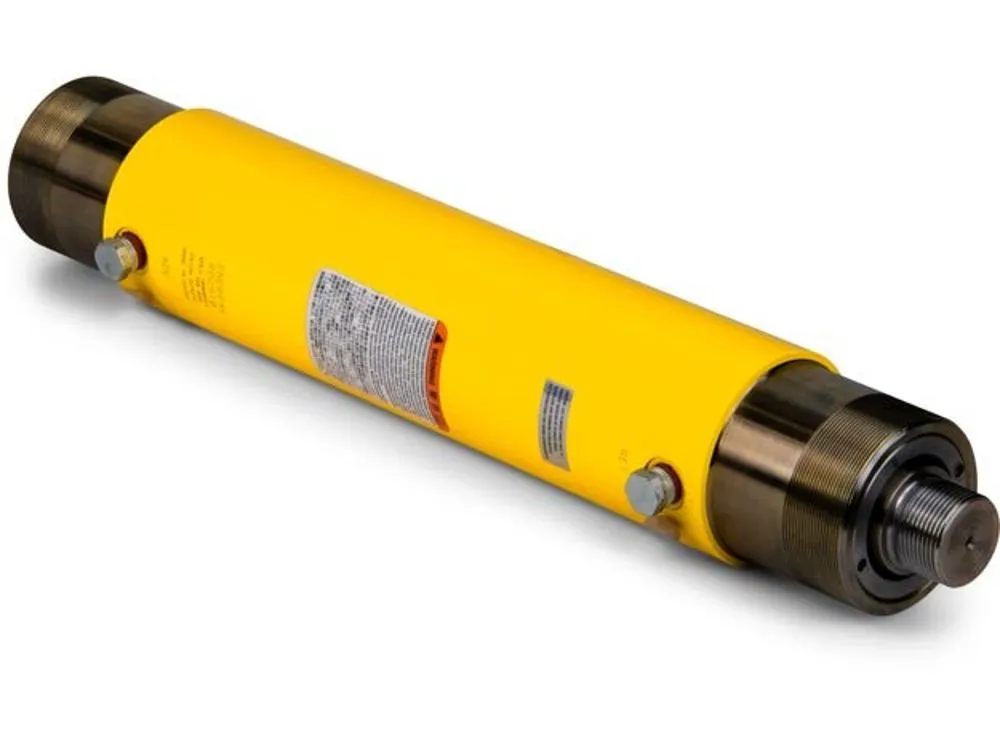

| RD2510 | 3.5" | 25 ton. | 24.86" | 2.09" | 35.11" | 1.13" | 2.5" | 24500 lbs. | €4,406.57 | |

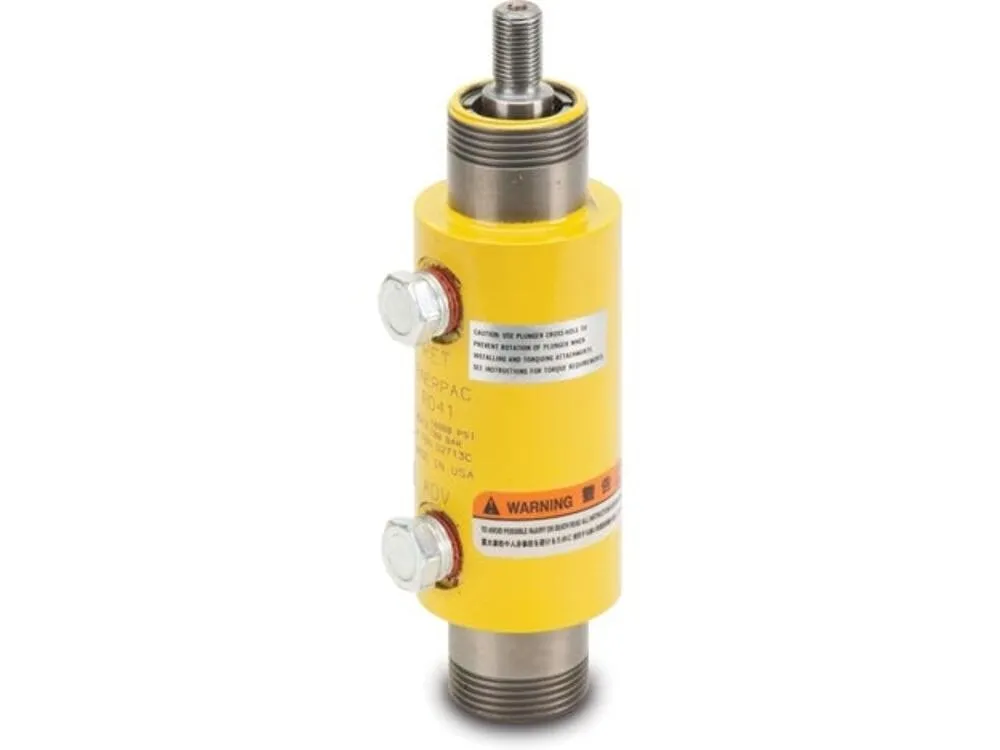

| RD41 | 1.88" | 4 ton. | 10.12" | 1.61" | 11.25" | 0.44" | 1" | 3900 lbs. | €989.42 | |

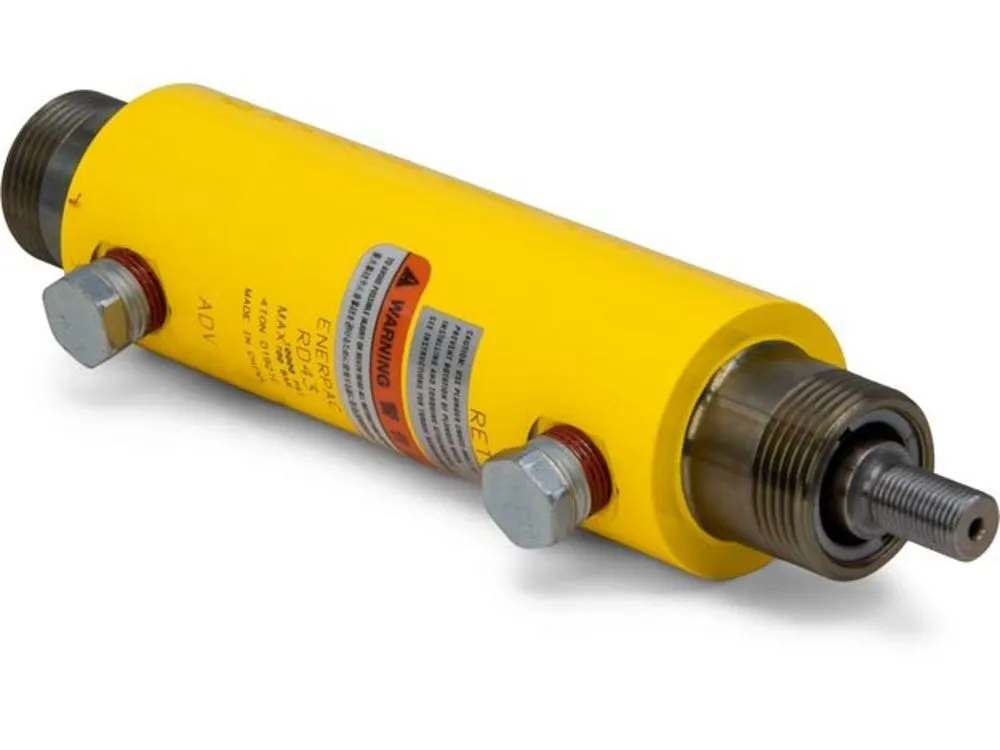

| RD43 | 1.88" | 4 ton. | 12.12" | 1.61" | 15.25" | 0.44" | 1" | 3900 lbs. | €1,470.00 | |

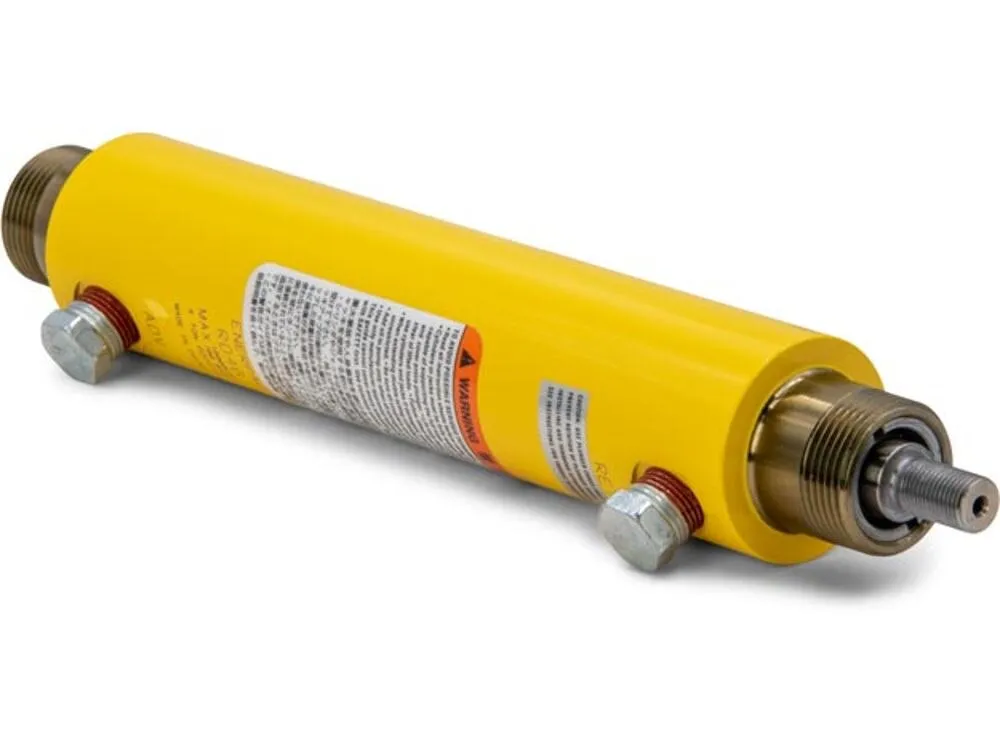

| RD46 | 1.88" | 4 ton. | 15.12" | 1.61" | 21.25" | 0.44" | 1" | 3900 lbs. | €1,218.03 | |

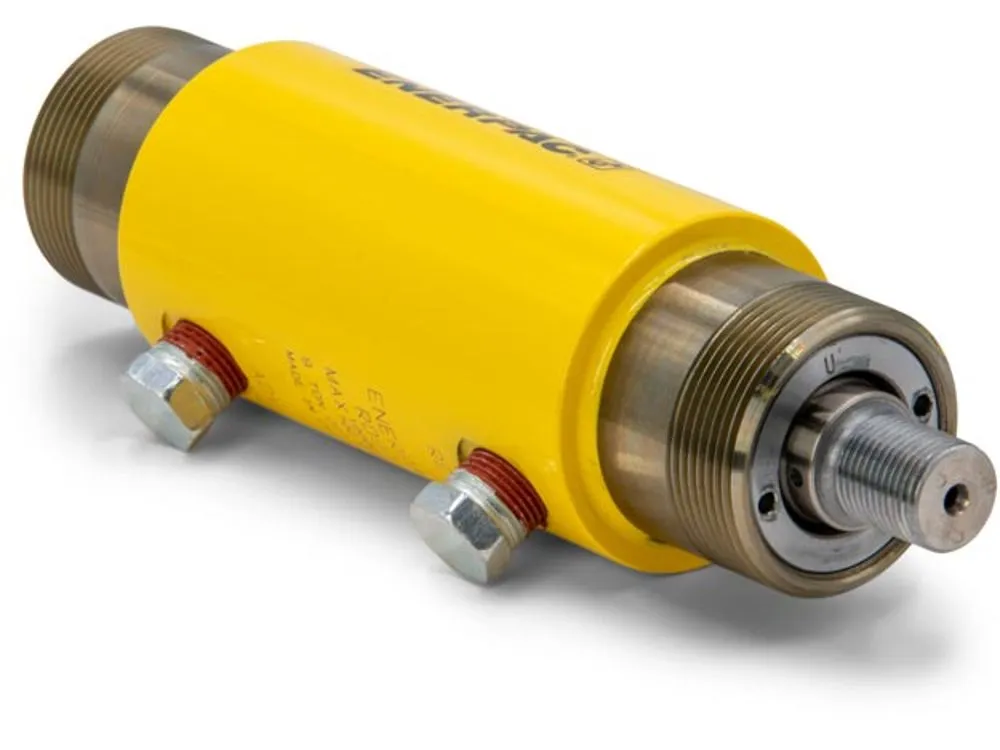

| RD91 | 2.27" | 9 ton. | 11.61" | 1.5" | 12.76" | 0.56" | 1.5" | 9000 lbs. | €1,460.53 |
