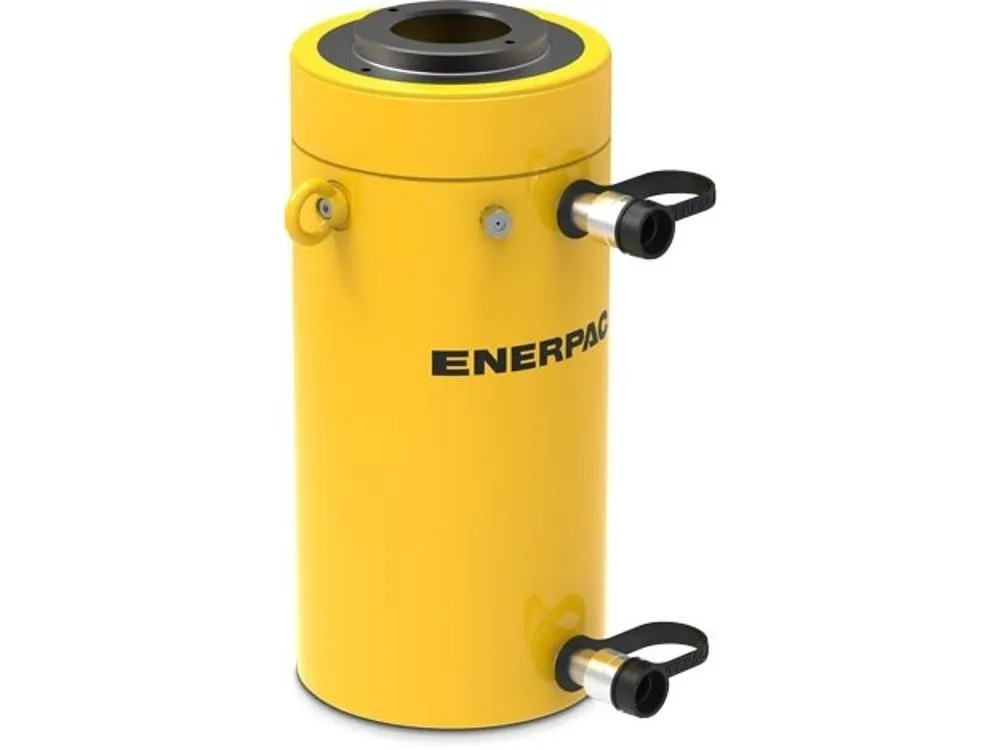

| Item | Hydraulic Cylinder |
| Base Mounting Holes Thread Size | 5/8"-11 |
| Base to Advance Port | 1.5" |
| Capacity | 100 ton. |
| Center Hole Dia. | 3.13" |
| Collapsed Height | 18.13" |
| Collar Thread Length | 2.38" |
| Collar Thread Size | 8 3/8"-12 |
| Couplers | CR400 Coupler |
| Cylinder Bore | 6.5" |
| Cylinder Effective Area Advance | 20.63 sq. in. |
| Cylinder Effective Area Retract | 13.54 sq. in. |
| Cylinder Return Type | Double Acting, Hydraulic Return |
| Extended Height | 28.25" |
| Finish | Painted |
| Material | Steel |
| Max. Cylinder Capacity Advance | 103 short ton. |
| Max. Cylinder Capacity Retract | 68 short ton. |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity Advance | 208.84 cu. in. |
| Oil Capacity Retract | 137.17 cu. in. |
| Outside Dia. | 8.38" |
| Plunger Dia. | 5" |
| Plunger Internal Thread Size | 4"-16 |
| Plunger Thread Length | 1" |
| Plunger Type | Hollow |
| Saddle Diameter | 4.97" |
| Saddle Protrusion from Plunger | 0.5" |
| Stroke | 10.13" |
| Top to Retract Port | 3.38" |
| Ship weight (kg) | 108 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 24.46 |
| HS code | 8425420000 |
| Country of Origin | CN |
| Model | Base Mounting Holes Thread Size | Base to Advance Port | Capacity | Collar Thread Length | Cylinder Bore | Cylinder Effective Area Advance | Cylinder Effective Area Retract | Max. Cylinder Capacity Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RRH1001 | 5/8"-11 | 1.5" | 100 ton. | - | 6.5" | 20.63 sq. in. | 13.54 sq. in. | 103 short ton. | €6,157.64 | |
| RRH1003 | 5/8"-11 | 1.5" | 100 ton. | 2.38" | 6.5" | 20.63 sq. in. | 13.54 sq. in. | 103 short ton. | €7,246.86 | |
| RRH1006 | 5/8"-11 | 1.5" | 100 ton. | 2.38" | 6.5" | 20.63 sq. in. | 13.54 sq. in. | 103 short ton. | €7,571.66 | |
| RRH1508 | - | 1.5" | 150 ton. | - | 7.5" | 31.62 sq. in. | 15.91 sq. in. | 158 short ton. | €11,926.78 | |
| RRH3010 | 3/8"-16 | 1" | 30 ton. | 1.66" | 3.5" | 7.22 sq. in. | 4.71 sq. in. | 36 short ton. | €5,917.18 | |
| RRH307 | 3/8"-16 | 1" | 30 ton. | 1.66" | 3.5" | 7.22 sq. in. | 4.71 sq. in. | 36 short ton. | €2,669.24 | |

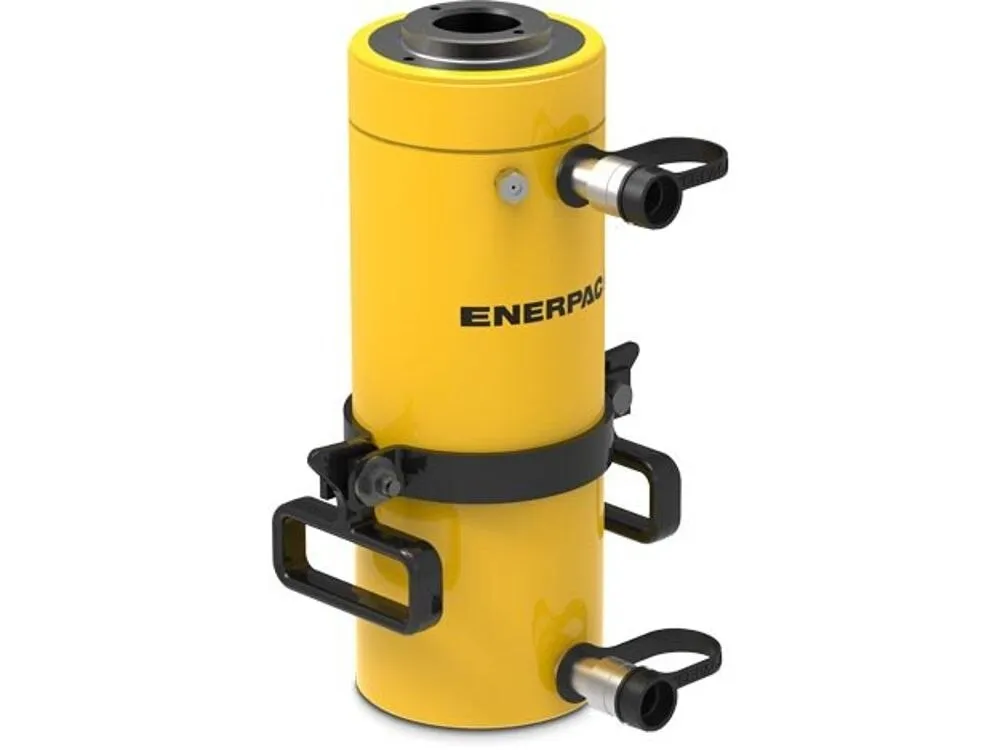

| RRH6010 | 1/2"-13 | 1.25" | 60 ton. | 1.91" | 4.88" | 12.73 sq. in. | 8.37 sq. in. | 64 short ton. | €7,435.28 |
