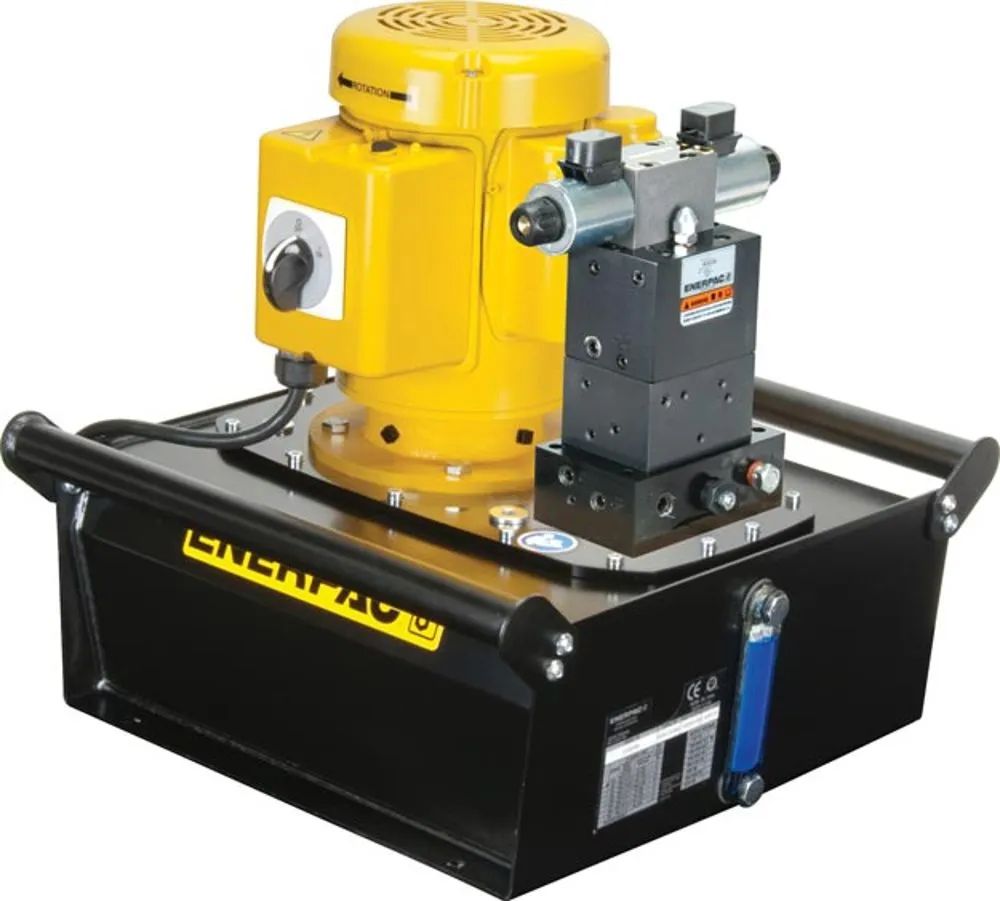

| Item | Hydraulic Electric Pump |
| Cylinder Compatibility | Double Acting |
| Dimension A | 6.2" |
| Dimension B | 16.5" |
| Dimension C | 12" |
| Dimension D | 15.1" |
| Dimension D1 | 14.6" |
| Dimension E | 11" |
| Dimension H | 23.6" |
| Duty Cycle | Extended |
| Frequency | 50/ 60 Hz |
| Max. Flow At Rated Pressure | 120 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Motor Hp | 3 hp |
| Motor Rpm | 1750 RPM |
| Output Flow Rate @ 100 Psi | 850 cu. in./min. |
| Output Flow Rate @ 10000 Psi | 120 cu. in./min. |
| Output Flow Rate @ 5000 Psi | 123 cu. in./min. |
| Output Flow Rate @ 700 Psi | 825 cu. in./min. |
| Phase | 3 |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 1000 to 10000 psi |
| Reservoir Capacity | 601 cu. in. |
| Solenoid Valve Voltage | 24V DC |
| Sound Level | 75 dBA |
| Usable Oil Capacity | 2.5 gal. |
| Valve Function | Advance/ Hold/ Retract |
| Valve Operation | Solenoid |
| Valve Type | 4-Way, 3-Position, Tandem Center |
| Voltage | 208 to 240V |
| Ship weight (kg) | 79.65 |
| Ship height (cm) | 86.36 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 80.01 |
| HS code | 8413500050 |
| Product | Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Dimension D1 | Dimension E | Dimension H | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZE5110DG | Single Acting | 6.2" | 16.5" | 12" | 15.1" | 14.6" | 11" | 23.6" | €13,286.12 | |
 |
ZE5120DG | Single Acting | 7.1" | 16.5" | 16.6" | 19.7" | 19.2" | 15.6" | - | €11,882.28 | |
|
ZE5210LG | Single Acting | 6.2" | 16.5" | 12" | 15.1" | 14.6" | 11" | 23.6" | €12,027.28 | |
|
ZE5210MG | - | - | - | - | - | - | - | - | €10,304.71 | |
|
ZE5220LG | - | - | - | - | - | - | - | - | €12,323.94 | |
 |
ZE5220MG | - | - | - | - | - | - | - | - | €15,107.71 | |
|
ZE5310SG | Single Acting | 6.2" | 16.5" | 12" | 15.1" | 14.6" | 11" | 23.6" | €14,885.75 |
