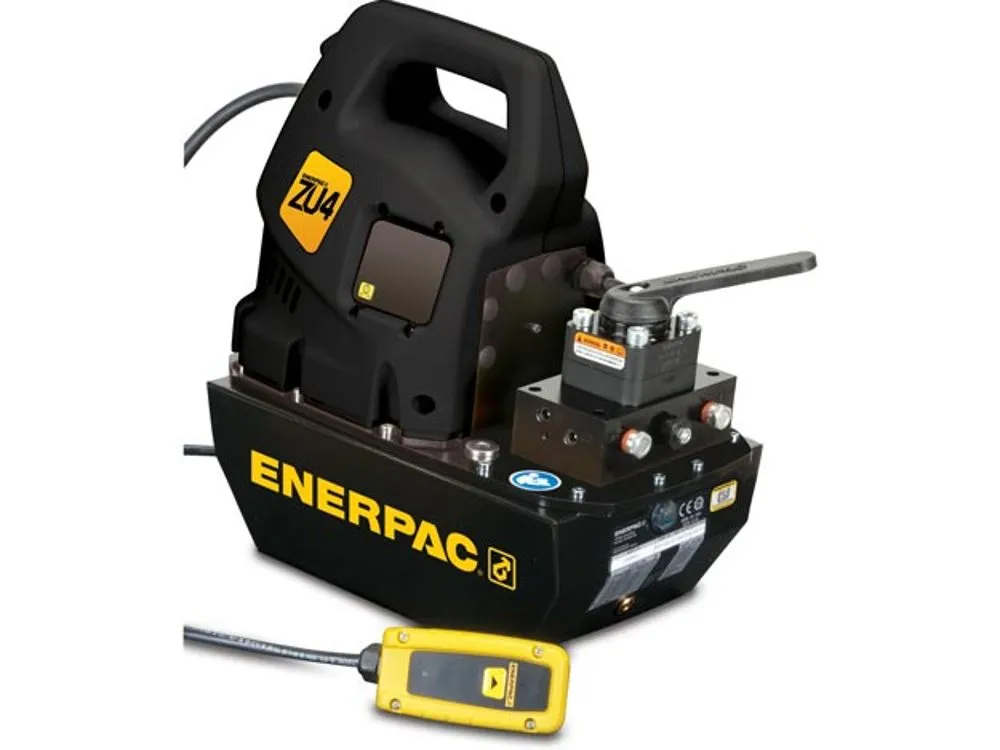

| Item | Hydraulic Electric Pump |
| Cylinder Compatibility | Double Acting |
| Dimension A | 18.3" |
| Dimension B | 7.1" |
| Dimension C | 16.5" |
| Dimension D | 16.6" |
| Dimension E | 19.7" |
| Dimension F | 15.6" |
| Duty Cycle | Intermittent |
| Frequency | 50/ 60 Hz |
| Max. Flow At Rated Pressure | 60 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Motor Hp | 1.7 hp |
| Output Flow Rate @ 100 Psi | 700 cu. in./min. |
| Output Flow Rate @ 10000 Psi | 60 cu. in./min. |
| Output Flow Rate @ 5000 Psi | 76 cu. in./min. |
| Output Flow Rate @ 700 Psi | 535 cu. in./min. |
| Phase | 1 |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 2000 to 10000 psi |
| Reservoir Capacity | 1201 cu. in. |
| Sound Level | 85 to 90 dBA |
| Usable Oil Capacity | 5 gal. |
| Valve Function | Advance/ Hold/ Retract |
| Valve Operation | Manual |
| Valve Type | 4-Way, 3-Position, Tandem Center |
| Voltage | 115V |
| Ship weight (kg) | 60.57 |
| Ship height (cm) | 86.36 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 80.01 |
| HS code | 8413500050 |
| Country of Origin | US |
| Product | Model | Cylinder Compatibility | Dimension A | Dimension B | Dimension C | Dimension D | Pump Control | Solenoid Valve Voltage | Valve Function | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZU4308MB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Manual | - | Advance/ Hold/ Retract | €5,543.15 | |
 |
ZU4308LB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Manual | - | Advance/ Hold/ Retract | €6,056.84 | |
 |
ZU4104DB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | 24V | Advance/ Retract | €6,146.61 | |
|
ZU4108DB | Single Acting | 16.7" | 5.6" | 11" | 8.1" | Pendant | 24V | Advance/ Retract | €6,364.12 | |
|
ZU4120DB | Single Acting | 18.3" | 7.1" | 16.5" | 16.6" | Pendant | 24V | Advance/ Retract | €6,836.15 | |
 |
ZU4204JB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | - | Advance/ Retract | €4,849.91 | |
|
ZU4204KB | Single Acting | 16.7" | 5.6" | 11" | 6" | Pendant | - | Advance/ Retract | €6,592.29 |
