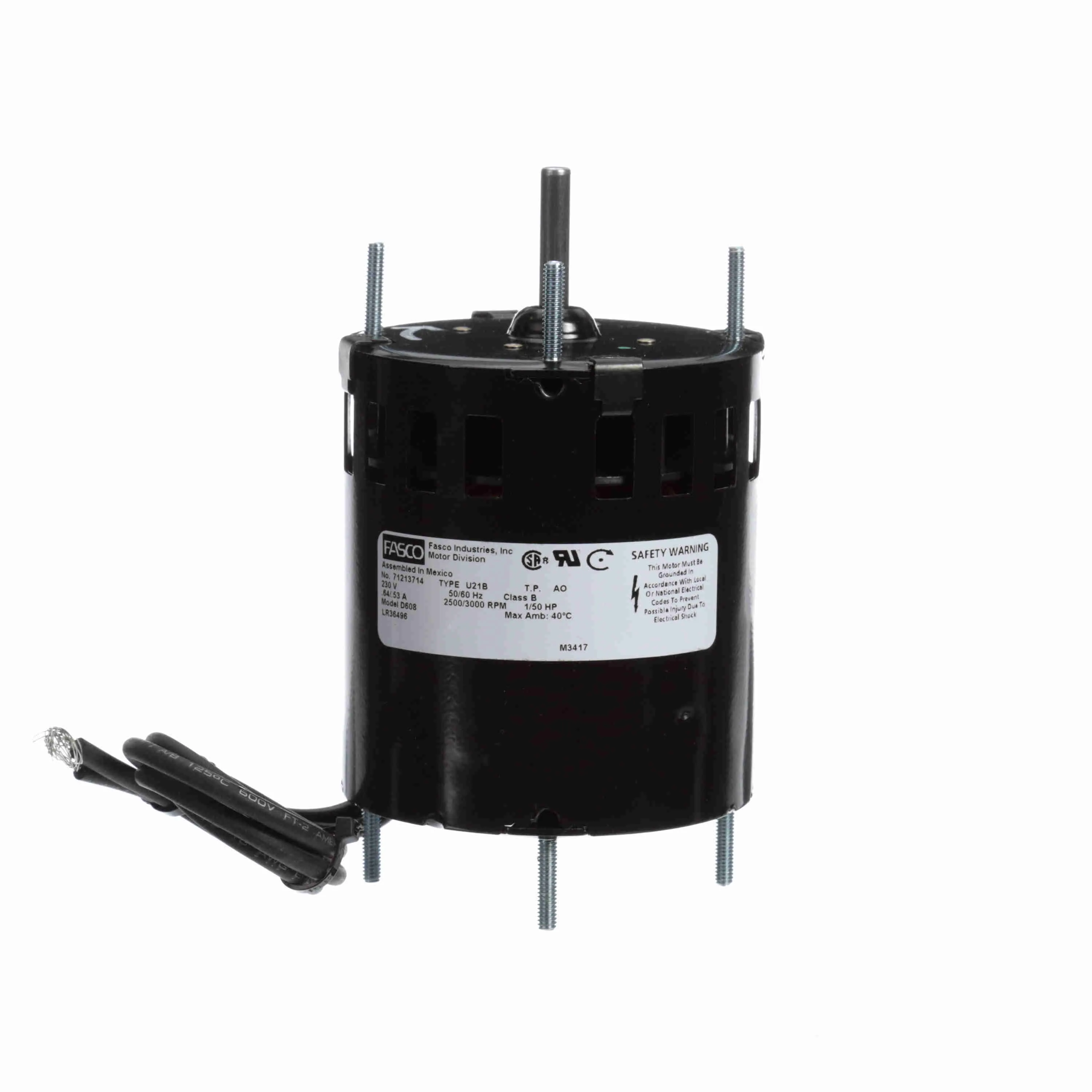

| Item | HVAC Motor |
| Bearings | Sleeve |
| Body Dia. | 3.3" |
| Duty | Continuous Air-Over |
| Enclosure | Open Ventilated |
| Frame | 3.3 |
| Frequency | 60 Hz |
| Full Load Amps | .64/.53 |
| Hp | 1/50 |
| Hz | 50/60 |
| Insulation Class | B |
| Length Less Shaft | 3.75" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | H Vac/R |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Direct Dr Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Nameplate Rpm | 2500/3000 |
| Number Of Mounting Holes | 8 |
| Number Of Speeds | 1 |
| Phase | 1 |
| Rotation | Cwse |
| Rpm Range | 1801-3000 |
| Service Factor | 1.0 |
| Shaft Dia. | 1/4" |
| Shaft Length | 1 5/16" |
| Shaft Type | Flat |
| Stud Location | 4/BE |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Auto |
| Voltage | 230 |
| Ship weight (kg) | 1.2825 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 32.07 |
| Ship width (cm) | 10.48 |
| HS code | 8501104020 |
| Country of Origin | MX |
| Product | Model | Bearings | Duty | Enclosure | Full Load Amps | HP | Hz | Insulation Class | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D200 | Sleeve | Continuous Air-Over | Open Ventilated | 0.62 | 1/85 | 60 | A | 2" | €108.06 | |
|
D201 | Sleeve | Continuous Air-Over | Open Ventilated | 0.62 | 1/85 | 60 | A | 2.25" | €111.58 | |
 |
D209 | Sleeve | Continuous Air-Over | Open Ventilated | 1.12 | 1/30 | 60 | A | 3.625" | €145.94 | |
 |
D208 | Sleeve | Continuous Air-Over | Open Ventilated | 1.12 | 1/30 | 60 | A | 3.625" | €142.49 | |
 |
D214 | Sleeve | Continuous Air-Over | Totally Enclosed Fan-Cooled | 1.7 | 1/20 | 60 | A | 4.625" | €248.36 | |
|
D215 | Ball | Continuous Air-Over | Totally Enclosed Fan-Cooled | 1.7 | 1/20 | 60 | A | 4.625" | €279.65 | |
 |
D220 | Ball | Continuous Air-Over | Totally Enclosed Fan-Cooled | 1.7 | 1/20 | 60 | A | 4.625" | €265.44 |
