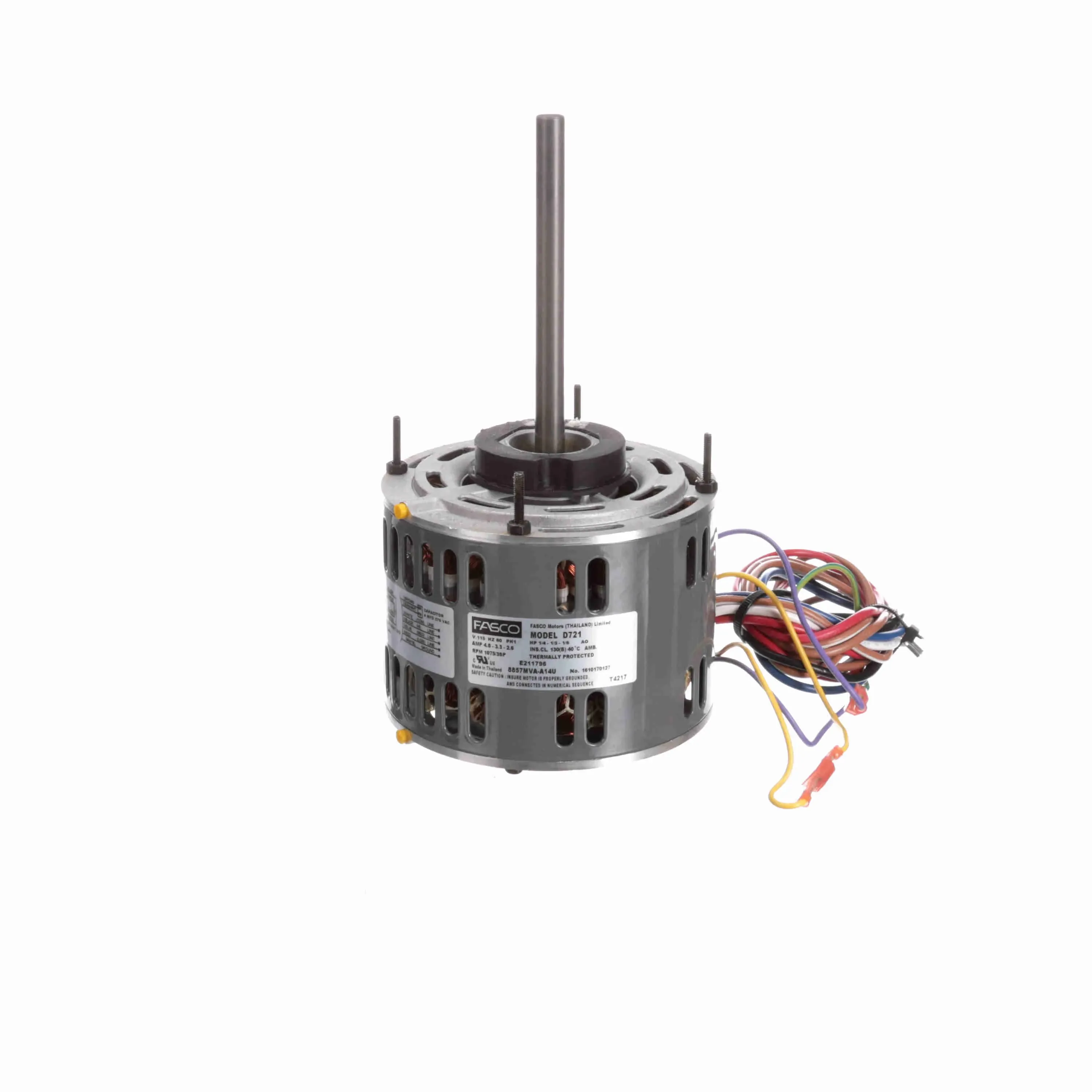

| Item | Direct Drive Blower Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/4" |
| Duty Cycle | Continuous |
| Frequency | 60 Hz |
| Full Load Efficiency | 5% |
| Insulation Class | Class B |
| Lead Length | 26" |
| Length Less Shaft | 4 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Hvac/R |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 3/4" |
| Nameplate Rpm | 1075 RPM |
| Number Of Shafts | 1 |
| Number Of Speeds | 3 |
| Number Of Studs | 4 |
| Overall Length | 10.688" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 4.812" |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Stud Location | Shaft End |
| Stud Size | #8-32 |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Ship weight (kg) | 5.22 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 14.3 |
| Country of Origin | TH |
