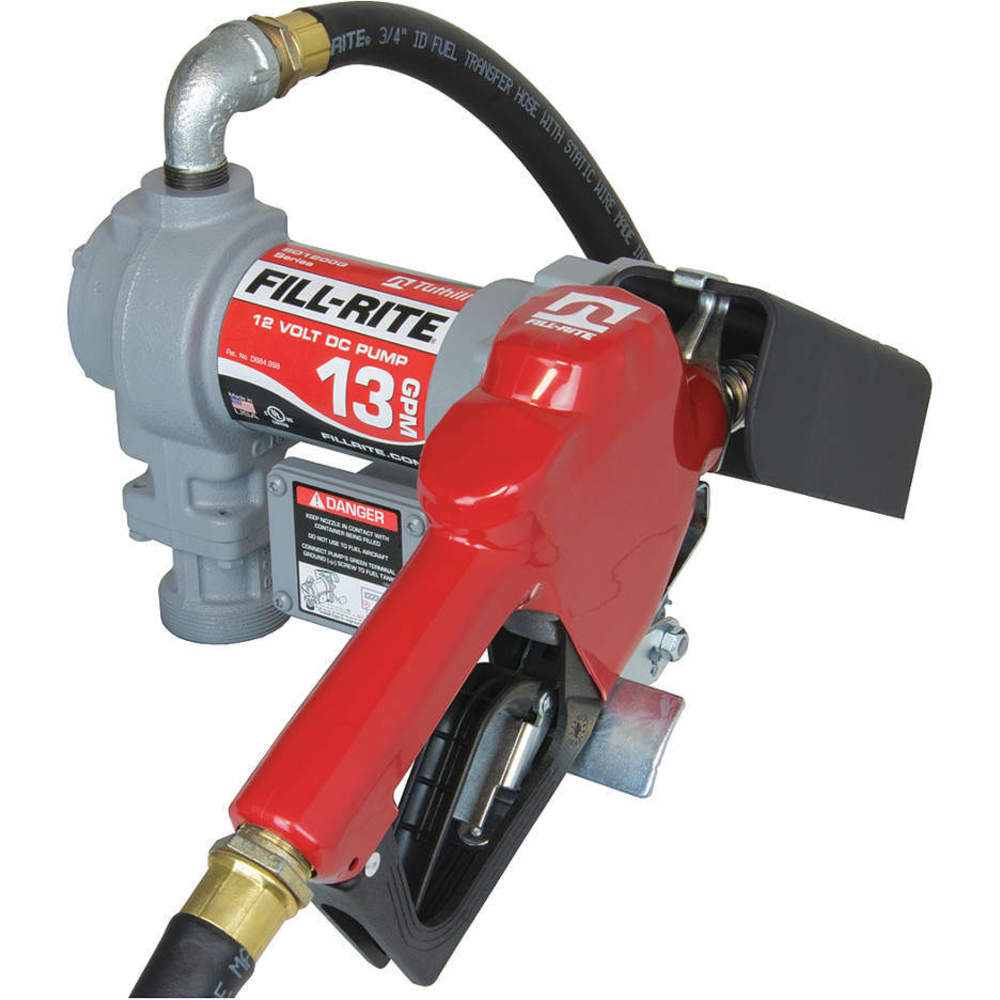

| Item | Fuel Transfer Pump |
| Amps | 20A |
| Amps Ac | 20 |
| Bearing Type | Ball |
| Bypass Valve | Internal |
| Compatible Fluids | Diesel, Gasoline, Kerosene, E15, Biodiesel up to B20 |
| Discharge Connection Type | Npt |
| Discharge Hose Size | 3/4" x 10 ft. |
| Duty Cycle | 30 min. |
| Explosion Proof | Yes |
| Flow Rate | 13 GPM |
| For Container Size | 275 gal. |
| For Media Type | Biodiesel, Diesel, E15, Gasoline, Kerosene |
| Full Load Current | 20A |
| Gpm | 13 |
| Height | 9" |
| Hose Dia. | 3/4" |
| Hose Length | 10 ft. |
| Housing Material | Cast Iron |
| Hp | 1/4 hp |
| Includes | Battery, Cable, Discharge Hose, Nozzle |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Length | 9" |
| Max. Flow Rate | 13 GPM |
| Max. Head | 37 ft. |
| Max. Head Pressure | 16 psi |
| Max. Outlet Pressure | 16 psi |
| Max. Viscosity | 50 SUS |
| Metered | No |
| Motor Enclosure Design | Explosion Proof |
| Motor Speed | 2600 RPM |
| Motor Type | Permanent Magnet |
| Mount Type | Bung |
| Nozzle Material | Aluminum |
| Nozzle Type | Manual Gasoline |
| Outlet Size | 3/4" |
| Overall Height | 9" |
| Overall Length | 9" |
| Overall Width | 7 1/2" |
| Power Cord Length | 15 ft. |
| Pressure | 0 psi to 16 psi |
| Pressure Range | 0 psi to 16 psi |
| Pump Connection Type | Npt |
| Pump Design | Rotary Vane |
| Pump Kit Type | Pump With Hose And Nozzle |
| Rated Voltage | 12V DC |
| Rpm | 1725 and 1425 |
| Seal Material | Ceramic/Carbon |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Self-priming | Yes |
| Voltage | 12 VDC |
| Width | 7 1/2" |
| Ship weight (kg) | 14.0602 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 44.77 |
| Ship width (cm) | 44.77 |
| HS code | 8413190000 |
| Country of Origin | US |
| Product | Model | Amps AC | Bearing Type | Duty Cycle | GPM | Hose Dia. | Hose Length | HP | Inlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FR2411G | 30 | Sealed Ball | 30 min. | 15 | 1" | 12ft. | 1/4 | 1-1/4" MNPT | €988.56 | |
 |
FR4211G | 4.9 | Sealed Ball | 30 min. | 20 | 1" | 12ft. | 1/4 | 1" MNPT | €1,151.98 | |
 |
FR319VB | 9.8/4.9/11.4/5.7 | Ball | 30 Minutes | 35 | 1" | 18ft. | 1/4 | 1" MNPT | €2,313.54 | |
 |
FR4210GBFQ | 20 | Permanently Lubricated Ball | 30 min. | 20 | 1" | 20ft. | 1/4 | 1" MNPT | €1,272.78 | |
 |
FR1614 | 20 | Ball | 30 min. | 10 | 3/4" | 8ft. | 1/5 | 3/4" MNPT | €325.87 | |
 |
FR701V | 5.5 | Sealed | 30 min. | 18 | 3/4" | 12ft. | 1/3 | 1-1/4" MNPT | €1,183.69 | |
 |
FR310VN | 9.8/4.9/11.4/5.7 | Sealed Ball | 30 min. | 30 | 1" | - | 3/4 | 1-1/4" MNPT | €1,738.18 |
