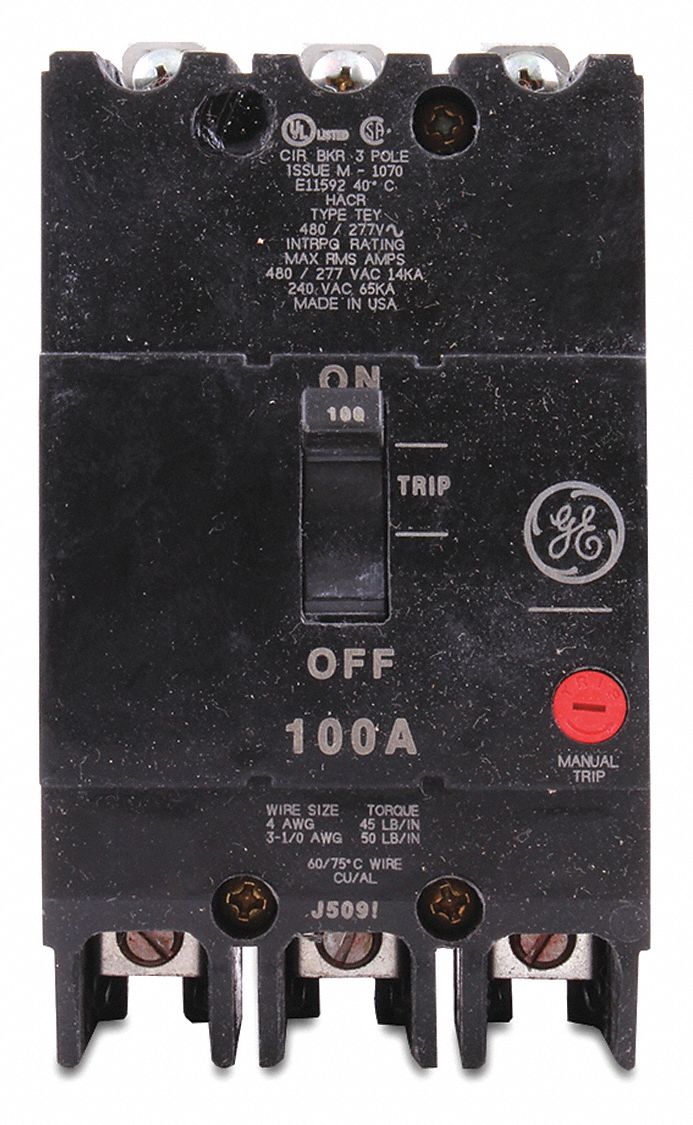

| Item | Circuit Breaker |
| Ac Voltage Rating | 277/480 VAC |
| Amps | 100 |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 3" |
| Frame Size | 125A/TEY |
| Height | 5.2" |
| Max. Air Rating | 18kA |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 4 AWG |
| Mounting | Bolt On Panelboard |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
| Width | 3" |
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 15.24 |
| HS code | 8536200020 |
| Model | Ac Voltage Rating | Amps | Dc Voltage Rating | Max. Wire Size | Min. Wire Size | Number Of Poles | Terminal Connection | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TEYF115 | 277 VAC | 15 | 125 VDC | 10 AWG | 14 AWG | 1 | Screw Clamp | 1" | €597.63 | |
| TEYF120 | 277 VAC | 20 | 125 VDC | 10 AWG | 14 AWG | 1 | Screw Clamp | 1" | €287.62 | |
| TEYF125 | 277 VAC | 25 | 125 VDC | 10 AWG | 14 AWG | 1 | Screw Clamp | 1" | €597.63 | |
| TEYF130 | 277 VAC | 30 | 125 VDC | 10 AWG | 14 AWG | 1 | Screw Clamp | 1" | €584.48 | |
| TEYF135 | 277 VAC | 35 | 125 VDC | 4 AWG | 10 AWG | 1 | Lug | 1" | €597.63 | |
| TEYF140 | 277 VAC | 40 | 125 VDC | 4 AWG | 10 AWG | 1 | Lug | 1" | €597.63 | |
| TEYF145 | 277 VAC | 45 | 125 VDC | 4 AWG | 10 AWG | 1 | Lug | 1" | €604.69 |
