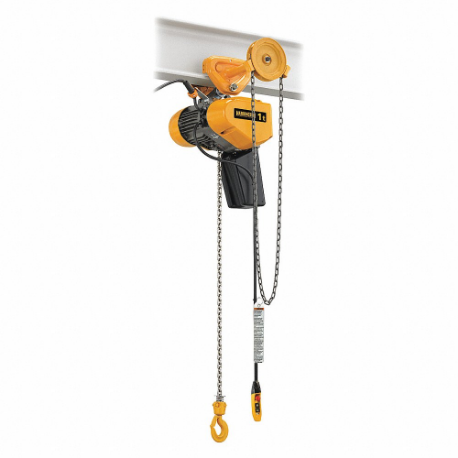

| Item | Chain Hoist |
| Amps @ Low Volts | 3.3A |
| Body Depth | 9 1/8" |
| Body Finish | Epoxy Painted |
| Body Length | 17.312" |
| Body Material | Aluminum |
| Body Width | 14.406" |
| Brake | Pull Rotor |
| Brake Type | Pull Rotor |
| Chain Finish | Nickel Plated |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Classification | H4 |
| Clutch | Friction |
| Control Cord | 16 ft. |
| Control Volts | 110V |
| Controller Cord Length | 16 ft. |
| Controls | Push Button Pendant |
| Duty Classification | H4 |
| Features | Extreme-Duty, Fan-Cooled Motor, Manually Operated Trolley, No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (Vfd) |
| Finish | Epoxy Painted |
| Fits Beam Flange Width | 2 1/4" to 5" |
| Fits Beam Height | 3" |
| For Maximum Beam Flange Width | 5" |
| For Minimum Beam Flange Width | 2.281" |
| For Minimum Beam Height | 3" |
| For Outdoor Use | Yes |
| Headroom | 17.312" |
| Hoist Ip Rating | IP55 |
| Hoist Lift | 20 ft. |
| Hoist Mount | Geared Trolley |
| Housing Depth | 9.109" |
| Housing Length | 17.297" |
| Housing Width | 14.406" |
| Hz | 60 Hz |
| Included Components | Chain Container; Pendant; Safety Latch Hook |
| Includes | Chain Container, Geared Trolley |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Length | 20 ft. |
| Lift Speed | 25/4.2 FPM |
| Lifting Capacity | 1000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1.094" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 1000 lbs. |
| Lubrication | Oil Bath |
| Manufacturer's Warranty Length | 3 yrs. |
| Max Current Draw | 6.3A |
| Maximum Lift Speed | 25 FPM |
| Maximum Lifting Length | 20 ft. |
| Min. Between Hooks | 17.312" |
| Min. Radius Curve | 51 1/4" |
| Minimum Lift Speed | 4.2 FPM |
| Minimum Radius Curve | 51.188" |
| Minimum Retracted Length | 17.312" |
| Motor Horsepower | 1 hp |
| Motor Hp | 1 hp |
| Mount Type | Geared Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Number Of Speeds | 2 |
| Operating Voltage | 380-460V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | Ip65 |
| Phase | 3.0 |
| Reeving | 1 |
| Resistance Properties | Corrosion Resistant |
| Speed Programmability | Programmable By Internal Controls |
| Sub-brand | 3-Phase Electric Hoist |
| Thermal Protection | Included |
| Tonnage - Lifting Capacity | 0.5 ton. |
| Trolley Wheel Dia. | 4 1/4" |
| Trolley Wheel Diameter | 4 1/4" |
| Trolley Wheel Material | Steel |
| Voltage | 460V |
| Wheel Material | Stainless Steel |
| Ship weight (kg) | 42.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Model | Price | |
|---|---|---|
| ED1000V-10 | €4,548.94 | |
| ED1000V-15 | €5,761.90 | |
| NER005L-10 | €3,643.64 | |
| NER005L-20 | €3,643.64 | |
| NER005L-15 | €3,741.68 | |
| NER005S-20 | €4,125.08 | |
| NER005S-15 | €4,034.74 |
