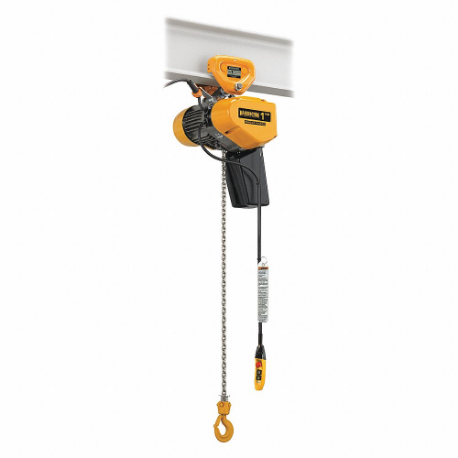

| Item | Chain Hoist |
| Amps @ Low Volts | 14.8A |
| Body Depth | 9 1/8" |
| Body Finish | Epoxy Painted |
| Body Length | 16.906" |
| Body Material | Aluminum |
| Body Width | 14.406" |
| Brake | Pull Rotor |
| Brake Type | Pull Rotor |
| Chain Finish | Nickel Plated |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Classification | H4 |
| Clutch | Friction |
| Control Cord | 6 ft. |
| Control Volts | 110V |
| Controller Cord Length | 6 ft. |
| Controls | Push Button Pendant |
| Duty Classification | H4 Heavy Duty |
| Features | No-Load High Speed, Unique Chain Guide, Variable Frequency Drive (Vfd) |
| Finish | Epoxy Painted |
| Fits Beam Flange Width | 2 1/2" to 4" |
| Fits Beam Height | 3" |
| For Beam Flange Width | 2.5" to 4.0" |
| For Maximum Beam Flange Width | 4" |
| For Minimum Beam Flange Width | 2 1/2" |
| For Minimum Beam Height | 3" |
| For Outdoor Use | Yes |
| Headroom | 16.812" |
| Hoist Ip Rating | IP55 |
| Hoist Lift | 10 ft. |
| Hoist Mount | Push Trolley |
| Housing Depth | 9.109" |
| Housing Length | 16.906" |
| Housing Width | 14.406" |
| Hz | 60 Hz |
| Included Components | Chain Container; Pendant; Safety Latch Hook |
| Includes | Chain Container, Push Trolley |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Length | 10 ft. |
| Lift Speed | 4.2-25 FPM |
| Lifting Capacity | 1000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1.094" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 1000 lbs. |
| Lubrication | Oil Bath |
| Manufacturer's Warranty Length | 3 yrs. |
| Max Current Draw | 14.9A |
| Maximum Lift Speed | 25 FPM |
| Maximum Lifting Length | 10 ft. |
| Min. Between Hooks | 16 7/8" |
| Min. Radius Curve | 43 1/4" |
| Minimum Lift Speed | 4.2 FPM |
| Minimum Radius Curve | 43 1/4" |
| Minimum Retracted Length | 16.906" |
| Motor Horsepower | 1 hp |
| Motor Hp | 1 hp |
| Mount Type | Push Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Number Of Speeds | 2 |
| Operating Voltage | 115V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | Ip65 |
| Phase | 1.0 |
| Reeving | 1 |
| Resistance Properties | Corrosion Resistant |
| Speed Programmability | Programmable By Internal Controls |
| Starts Per Hour | 120, 240 |
| Sub-brand | 1-Phase Electric Hoist |
| Thermal Protection | Included |
| Tonnage - Lifting Capacity | 0.5 ton. |
| Trolley Wheel Dia. | 3 1/4" |
| Trolley Wheel Diameter | 3 1/4" |
| Trolley Wheel Material | Steel |
| Voltage | 115V |
| Wheel Material | Steel |
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
