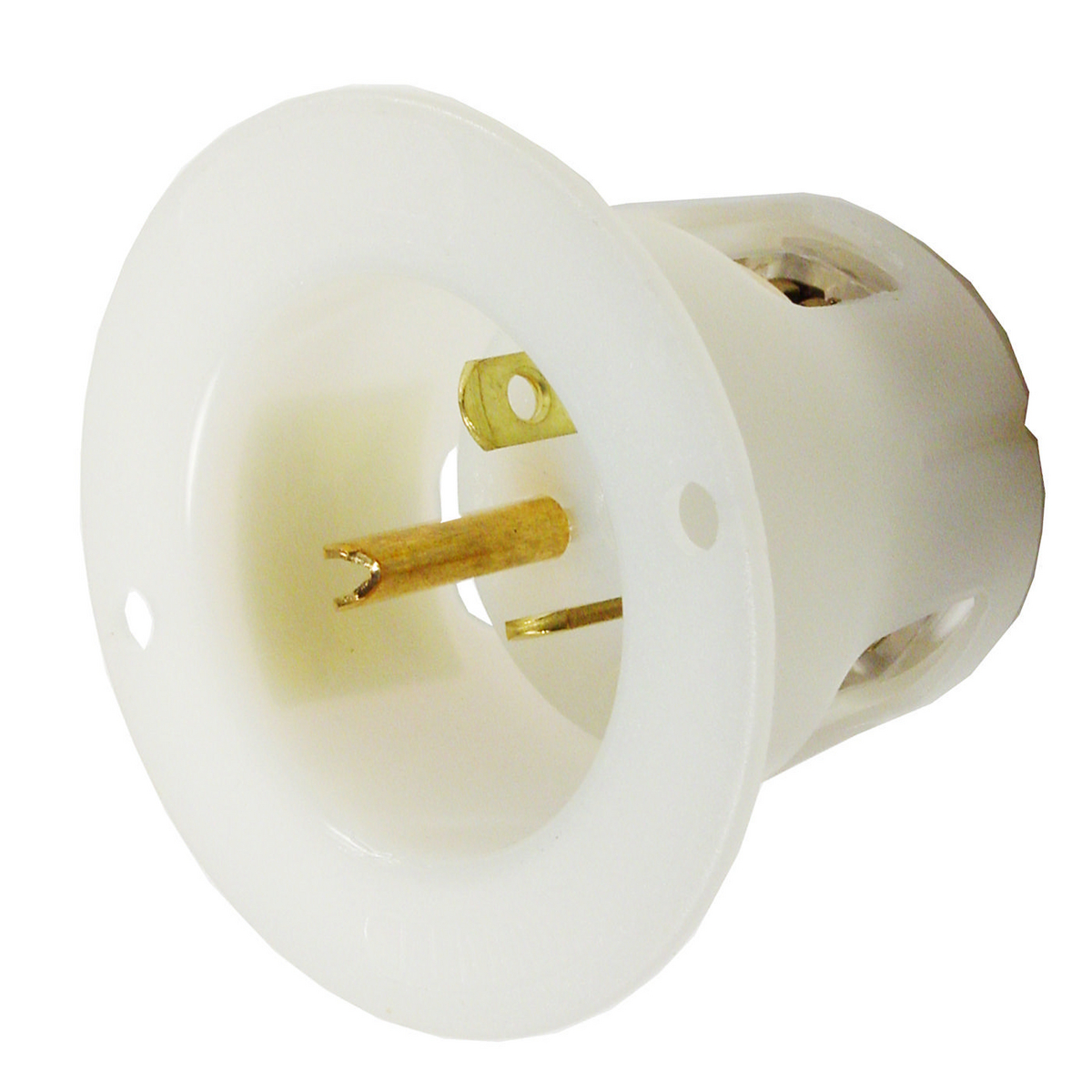

| Item | Miniature Flanged Inlet |
| Amps | 20 |
| Application Environment | Industrial Environments |
| Color | White |
| Connectivity | Screw Terminals |
| Current Rating | 20 A |
| Diameter B-c-e | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Duty | Heavy |
| Grade | Hospital |
| Height | 2.56" |
| Hp | 2 |
| Insulation | Insulated Body |
| Ip Rating | 20 |
| Length | 1.72" |
| Material | Nylon |
| Max. Hp | 2 |
| Mounting Type | Panel |
| Nema Configuration | 6-20P |
| Nema Rating | 6-20P |
| Number Of Gangs | 1 |
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
| Outlet Type | Inlet |
| Phase | Single Phase |
| Power Indicator | No |
| Prod. Description | Designed to Accept Molded On Connector Bodies, Grounding |
| Surge Suppression | No |
| Temp. Rating | Maximum Continuous: 75 Degree C; Minimum Continuous: -40 Degree C w/o impact, -25 Degree with impact. |
| Voltage | 250 VAC |
| Voltage Rating | 250 V |
| Wattage | 5000 W |
| Weather Resistant | No |
| Width | 2.56" |
| Wire Size | #18 AWG to #10 AWG |
| Wiring Method | Back |
| Ship weight (kg) | 0.045 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 4.37 |
| Ship width (cm) | 6.5 |
| HS code | 8536698000 |
| Country of Origin | US |
