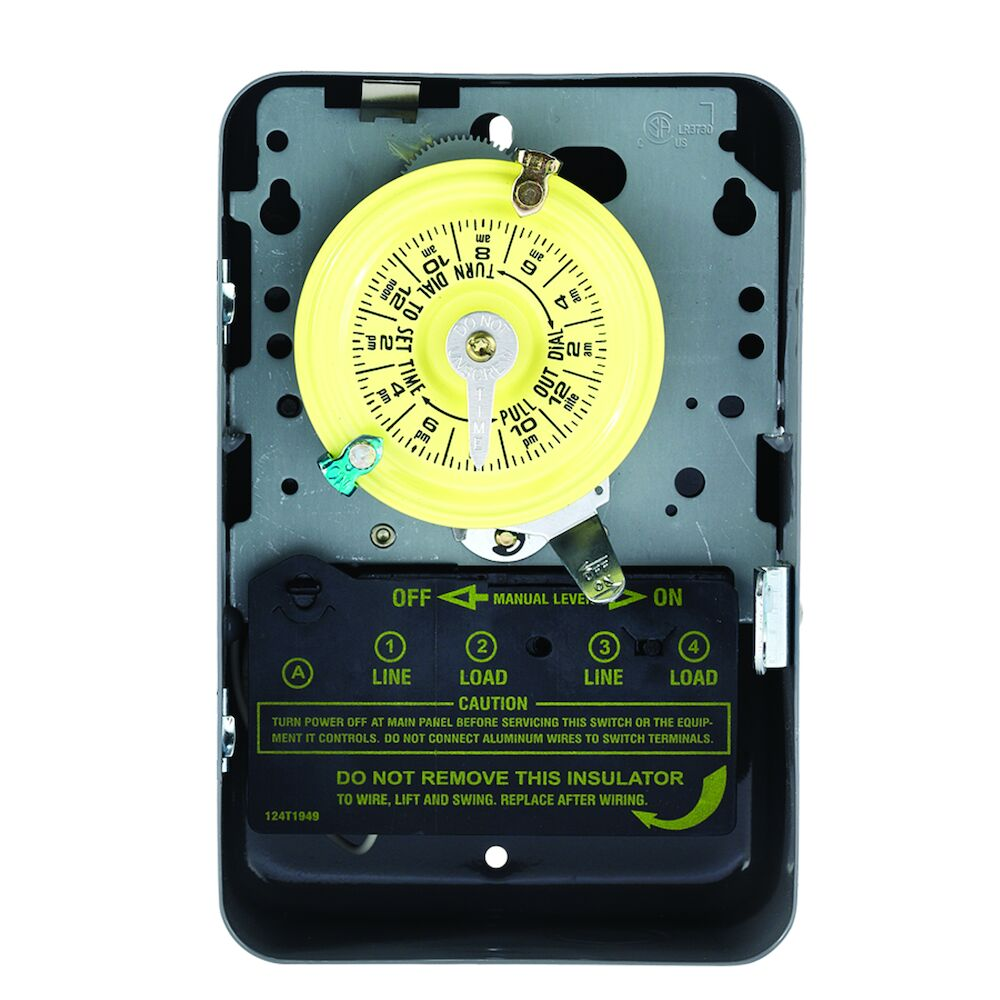

INTERMATIC T103 Electromechanical Timer, 24-Hr Time Setting, 125 VAC, 40 A, 5 HP

Item: AB9MQM Model: T103Cross Ref: 2E022
In Stock

Get it by Tuesday, Nov 19

€130.27 /unit
Add To Cart
Request a Quote

Payment Options Available

Product Specifications:

ItemElectromechanical Timer
Amps40
Contact FormDPST-NO
Contact Hp @ 120v2
Contact Hp @ 240v5
Day SkipperNo
Depth3"
Enclosure TypeSteel Indoor
Extra Trippers2E054
FinishMetal Enclosure has Gray Enamel
Height7 13/16"
Length7.8"
Max. On/off Cycles12
Max. Time Setting23 hr.
Min. Time Setting1 hr.
MountHole Wall
Nema Rating1
Number Of Poles2
Number Of Trippers Included2
Type24-Hour
Voltage120
Width5"

Shipping Info:

Ship weight (kg) 1.2348
Ship height (cm)20
Ship length (cm)8.73
Ship width (cm)13.02
HS code9106905510
Country of OriginMX

Product Details:

Intermatic T103 electromechanical timer automates the activation and deactivation of electrical circuits for controlling lighting, pumps, heaters and other equipment. By enabling users to pre-program ON / OFF schedules, it enhances energy efficiency, security and convenience.

Features:

  • Intermatic T103 electromechanical timer has a snap-out timing mechanism that simplifies setting adjustments, while the included and additional E054 trippers allow fine-tuning of the timer's ON / OFF schedule.
  • It has a manual override that ensures that the set program remains intact while enabling immediate manual control when needed, offering a balance between automation and manual intervention.
  • This T103 timer has a steel enclosure with gray enamel finish for resisting corrosion on exposed surfaces and durability.
  • It has mounting holes for easy installation on the wall and a 2 pole configuration to enable independent control of two separate circuits.
  • This electromechanical timer supports up to 12 ON / OFF cycles per day, enabling intricate scheduling for applications that require frequent changes in operation, such as lighting or heating control.
  • It features a high horsepower rating, thereby making it suitable for resistive loads up to 40A per pole at 125V.
  • This T103 electromechanical timer features a manual overriding facility that doesn't alter the preset programming.
  • It has teeter-type terminals for numerous load connections and can be easily installed in most Intermatic enclosures.

Compatible Accessories:

  • Intermatic WG1570 Time Clock Motor: It serves as a replacement or spare motor for the T103 electromecaniscal timer, ensuring the accurate and reliable operation of the timer's clock mechanism. The WG1570 motor maintains the functionality of the timer, driving the clock mechanism that controls the on / off schedules of connected devices.
  • Intermatic T103M Dial Timer Mechanism: This replacement or supplementary dial mechanism ensures precise and reliable time tracking for the timer. The T103M dial timer mechanism integrates flawlessly with the timer's existing setup, enabling users to maintain accurate control over on / off schedules.
  • Intermatic 156T1961A Tripper Timer: This tripper serves as replacements or additions to the T103M timer, ensuring accurate and customisable scheduling of ON / OFF cycles. It seamlessly integrates with the timer's mechanism, allowing users to set precise timings for various devices.

Frequently Asked Questions:

Q. Do mechanical timers consume electricity?

A. The average mechanical timer uses 1 Watt per hour which translates to 24 Watts daily. Typically, a digital timer uses a little bit more energy. About 2 Watts per hour of power are used here.

Q. What are the three main types of timers?

A. The three major types of PLC timers are on-delay, off-delay and retentive on-delay.

Q. What benefits do an electronic timer have over a mechanical one?

A. Both of them operate similarly and are capable of carrying out the same tasks. A mechanical timer is typically constructed as a massive, grey, metal box that may stand out significantly in your home's decor. Mechanical timers are typically larger, last longer and can take more electrical load than a digital timer.

Q. What maintenance is required for this Intermatic T103 timer?

A. Regularly check for proper alignment of trippers and keep the timer clean from dust and debris.

Q. Does this timer help save energy in lighting systems?

A. Yes, by automating lighting schedules, it helps save energy by preventing unnecessary usage during off-peak times.

Q. What is the purpose of the manual on / off override in the T103 timer?

A. The manual override allows immediate control of devices outside the programmed schedule without affecting the set program.

Q. How to surface mount this timer?

A.

  • Remove the cover and remove two screws on opposite corners.
  • Remove the housing that encases the time switch and the terminal cover away from the base.
  • Place a screw through pre-set holes in the base and screw it to the back of the panel or wall.
  • Replace the terminal cup and push the timer firmly onto the base.
  • Attach the housing and secure it with screws.

Q. Does Raptor Supplies offer other Intermatic electronic timers?

A. Yes, customers looking for electronic variants can choose from Intermatic SPST electronic timers having astronomic programming that offers sunset ON and sunrise OFF settings, eliminating the requirement for separate photo control devices.
