KINGSTON VALVES 296-2 Air Control Valve, 1/4 Inch Size | CE7AMZ

KINGSTON VALVES 296-2 Air Control Valve, 1/4 Inch Size

Item: CE7AMZ Model: 296-2
Limited Availability
€91.08 /unit
Request a Quote

Payment Options Available

Product Specifications:

ItemManual Air Control Valve
MaterialBrass
Pressure Range1 - 150 Psi
Size1/4"

Product Details:

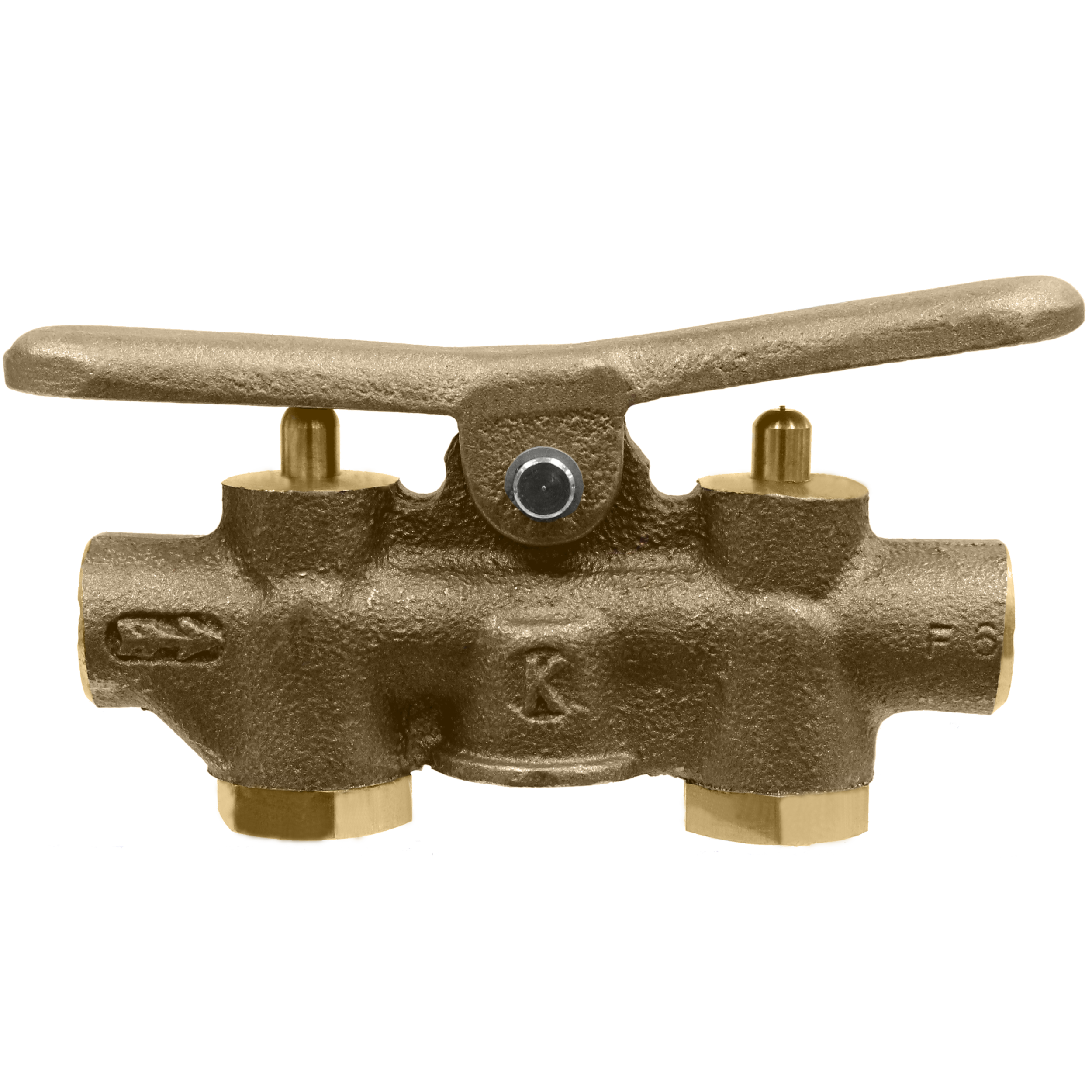

Kingston 296-2 low flow side port air control valve ideal for use in single-acting cylinders on lifting devices. Its inlet stem allows restricted flow initially after opening and achieves full flow only when fully opened. This Kingston valve has a vertical bottom cylinder port and comes standard with an 1/8-inch tank valve for pressurising the cylinders without actuating the lever by using a tire chuck.

Features:

  • Kingston 296-2 air control valve is a "two-step" valve where the first step is to direct the compressed air supply through the inlet port to the cylinder port. Doing this extends the cylinder piston, provided that the lever remains in a neutral position.
  • In the second step, the exhaust port of this Kingston valve gets opened to exhaust the air pressure to the atmosphere to return the cylinder piston to its resting position.

Frequently Asked Questions:

Q. What is the pressure range of this Kingston 296-2 low flow side port air control valve?

A. Kingston 296-2 air control valve can operate in pressures ranging from 10 to 150 PSIG.

Q. What is this Kingston 296-2 air control valve made of?

A. This Kingston valve has brass construction with Buna-N seals for leak-proof operation & corrosion resistance.

Q. What is the valve size of this Kingston 296-2 air control valve?

A. This Kingston 296-2 low flow side port air control valve has a 1/4 inch NPT size.

Product Variants

ProductModelPrice
KINGSTON VALVES 298-2-6 Air Control Valve, 1/4 Inch Size | CE7ANA 298-2-6€84.19
