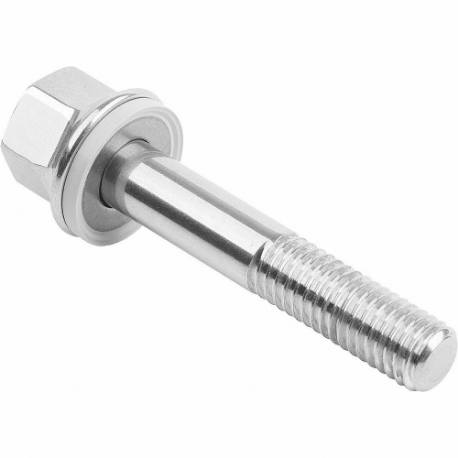

| Dimensional Standards | Ehedg |
| Drive | Hex |
| Drive Size | 13 mm |
| Fastener Length | 40 mm |
| Features | Only The Combination Of A Hexagon Head Screw With Collar And The Hygienic Usit Seal And Shim Washer Assures A Cavity Free Seal, The Hexagon Head Screw With Collar For Hygienic Usit Seal And Shim Washers Is Ideal For Fastening In Sterile Areas |
| Finish | Polished |
| Flange Dia. | 18 mm |
| Flange Type | Standard |
| Grade | Grade 316L |
| Head Height | 11.7 mm |
| Head Style | Hex Flange |
| Head Width | 13 mm |
| Hole Size | 8.2 mm |
| Includes Nuts | No |
| Includes Washers | Yes |
| Length | 51.7 mm |
| Material | Stainless Steel |
| Max. Temp. | 150°C |
| Min. Temp. | -40°C |
| Min. Thread Length | 22 mm |
| Rohs Compliant | Yes |
| Seal Material | White Epdm |
| System Of Measurement | Metric |
| Thread Size | M8 |
| Thread Style | Partially Threaded |
| Type | Sanitary Hex Head Screws |
| Washer Inside Dia. | 8.1 mm |
| Washer Material | Stainless Steel |
| Washer O.d. | 16.9 mm |
| Washer Standards | Ehedg |
| Washer Thickness | 1 mm |
| Washer Type | Seal And Shim |
| Ship weight (kg) | 0.0311 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
