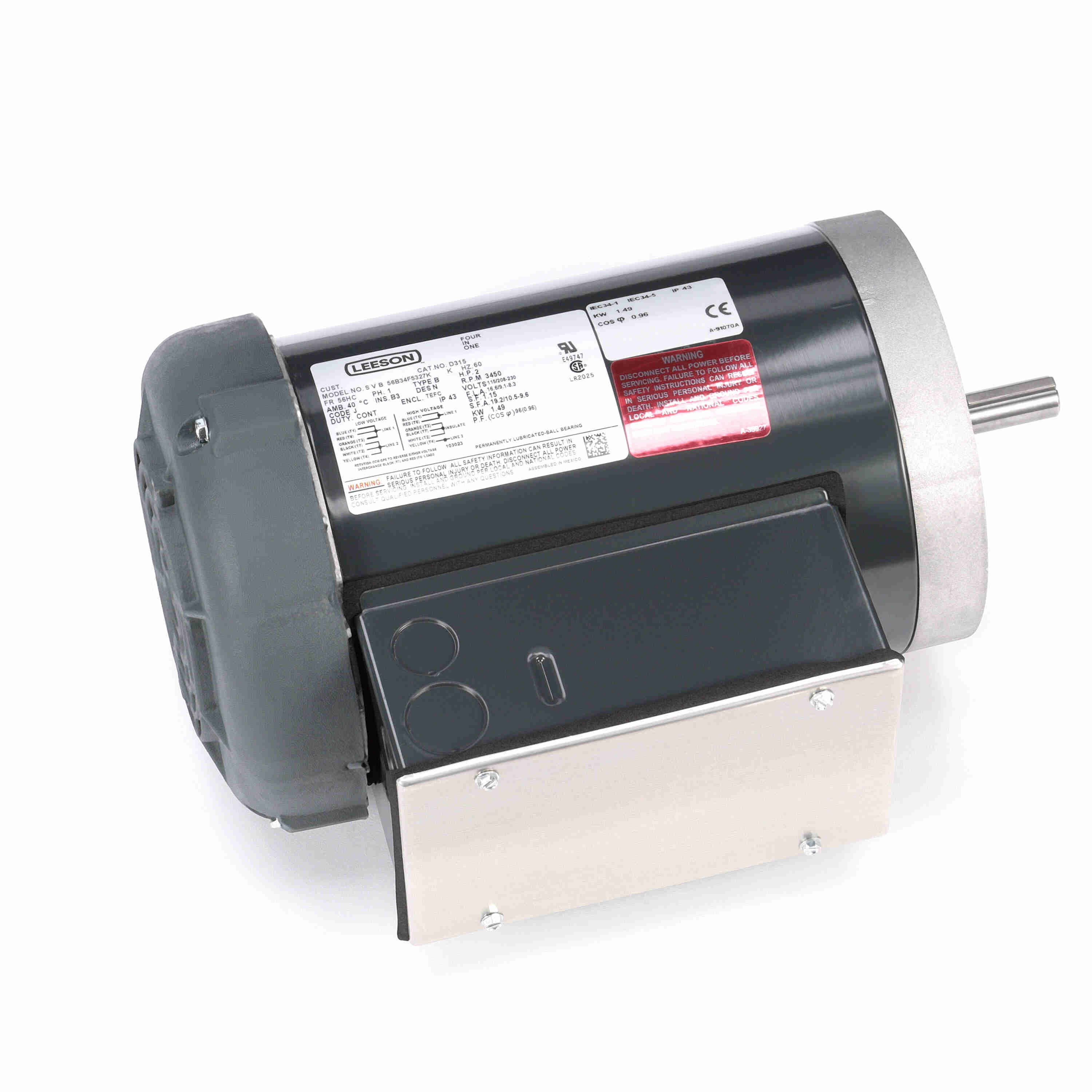

| Item | General Purpose Motor |
| Bearings | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Efficiency Group | Standard |
| Frame | 56Hc |
| Frame Material | Rolled Steel |
| Full Load Amps | 16.6/9.1-8.3 |
| Hp | 2 |
| Hz | 60 |
| Insulation Class | B |
| Inverter Rated | No |
| Length Less Shaft | 11.25" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Nameplate Rpm | 3450 |
| Nominal Efficiency | 78.5% |
| Number Of Speeds | 1 |
| Overall Length | 13 5/16" |
| Phase | 1 |
| Rpm Group | 3001-3600 |
| Rpm Range | 3001-3600 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Voltage | 115/208-230 |
| Warranty | 1 yr. |
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | Insulation Class | Length Less Shaft | Motor Design | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C11F5303 | 56C | 7.8/3.6-3.9 | 1/3 | 60 | B | 10.25" | Capacitor-Start | 1140 | €648.38 | |
 |
056C17F5320 | 56C | 6.6/3.1-3.3 | 1/3 | 50/60 | B | 9.75" | Capacitor-Start | 1725 | €451.61 | |
 |
056C17F5321 | 56C | 8.8/4.2-4.4 | 1/2 | 50/60 | F | 9.75" | Capacitor-Start | 1725 | €517.01 | |
 |
056C17F5322 | 56C | 11.0/5.4-5.5 | 3/4 | 50/60 | B | 10.25" | Capacitor-Start | 1725 | €623.94 | |
 |
056B11F5303 | 56C | 9.6/4.7-4.8 | 1/2 | 50/60 | B | 11.25" | Capacitor-Start/Run | 1140 | €788.94 | |
 |
056B17F5305 | 56HC | 15.2/8.2-7.6 | 1.5 | 50/60 | B | 11.75" | Capacitor-Start/Run | 1725 | €760.23 | |
 |
056B17F5306 | 56HC | 20.0/10.8-10.0 | 2 | 50/60 | B | 12.75" | Capacitor-Start/Run | 1725 | €953.95 |
