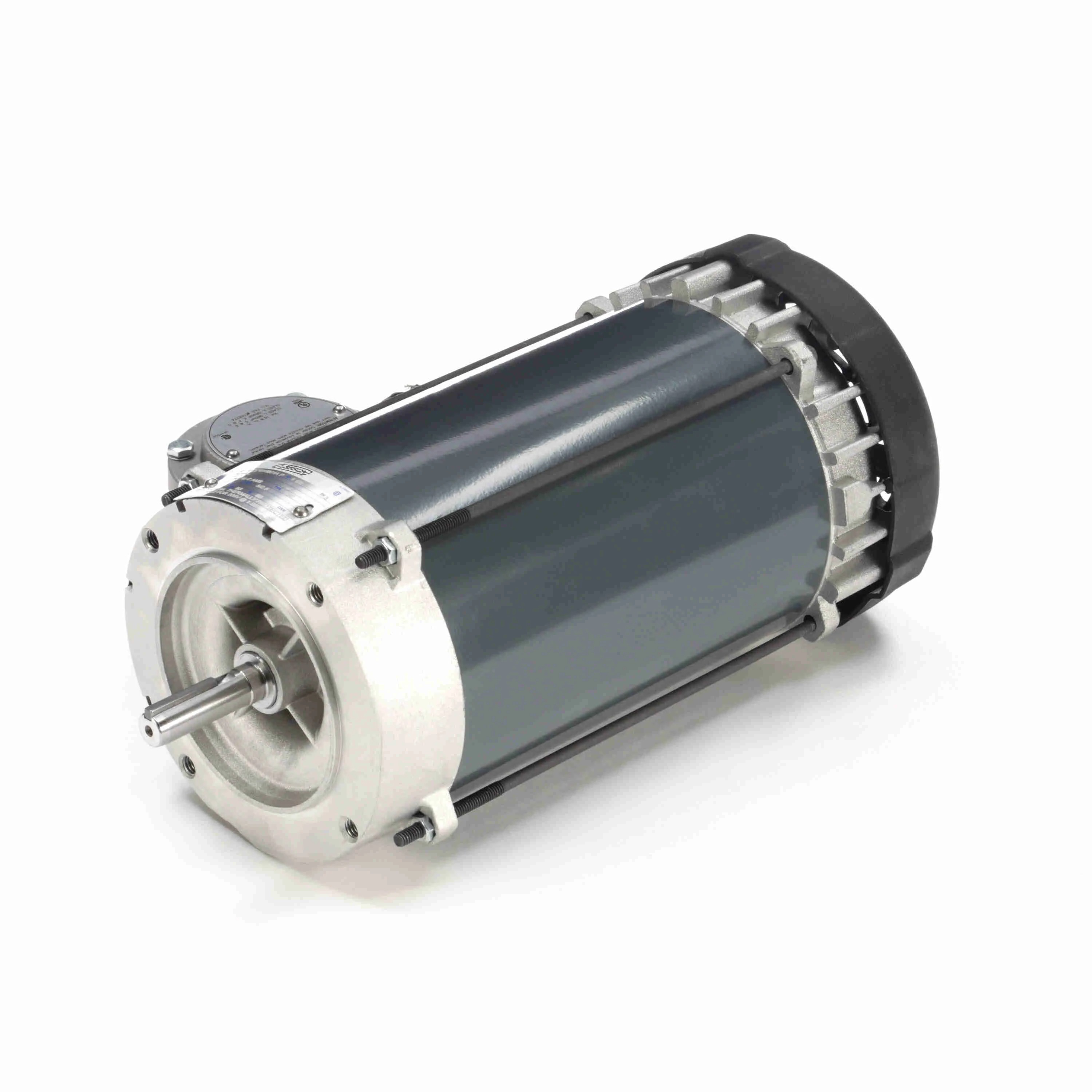

| Item | Hazardous Location Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Nema Premium Efficient |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Full Load Amps | 4.6/2.3 |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Hp | 1.5 |
| Hz | 60 |
| Insulation Class | B |
| Lead Length | 18" |
| Length Less Shaft | 14 1/16" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 1725 |
| Nema Design | B |
| Nominal Efficiency | 87.5% |
| Number | CC003A |
| Overall Length | 15 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.875" |
| Temp. Code | T3B |
| Voltage | 230/460 |
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 21.89 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Frame | Frame Material | Full Load Amps | Hazardous Location Class | HP | Hz | Lead Length | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17G15599 | 56C | Rolled Steel | 3.3/1.6 | 1 C,D / 2 F,G | 1 | 60 | 18" | 14 1/16" | €1,093.89 | |
 |
056T17G15615 | 56C | Rolled Steel | 1.3 | 1 C,D / 2 F,G | 1 | 60 | 18" | 14 1/16" | €1,093.89 | |
 |
143TTGN16539 | 143TC | Cast Iron | 3.3/1.6 | 1 D / 2 F,G | 1 | 50/60 | 12" | 13 1/16" | €1,048.05 | |
 |
145TTGN16036 | 143TC | Cast Iron | 4.6/2.3 | 1 D / 2 F,G | 1.5 | 50/60 | 12" | 13 1/16" | €1,111.61 |
