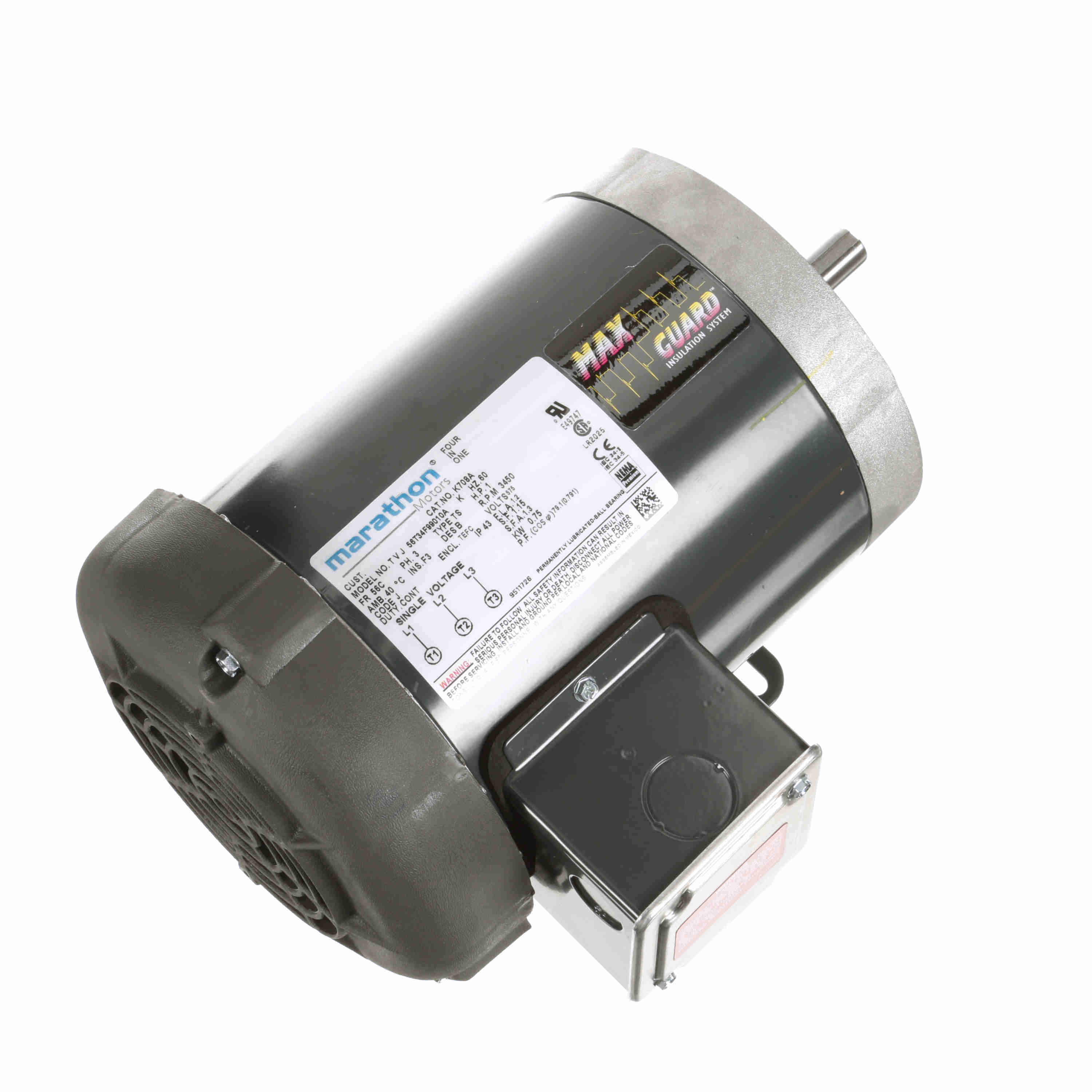

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency Group | Nema Premium Efficient |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Full Load Amps | 1.2 |
| Hp | 1 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Rated | No |
| Length Less Shaft | 9 15/16" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Nameplate Rpm | 3450 |
| Nominal Efficiency | 78.5% |
| Number | CC003A |
| Overall Length | 11 13/16" |
| Phase | 3 |
| Rpm Group | 3001-3600 |
| Rpm Range | 3001-3600 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.875" |
| Voltage | 575 |
| Ship weight (kg) | 10.971 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Motor Mounting Position | Nameplate RPM | Nominal Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17F15644 | 56HC | 2.3 | 2 | 11 15/16" | All Angle | 1725 | 82.5% | 13 13/16" | €769.38 |
