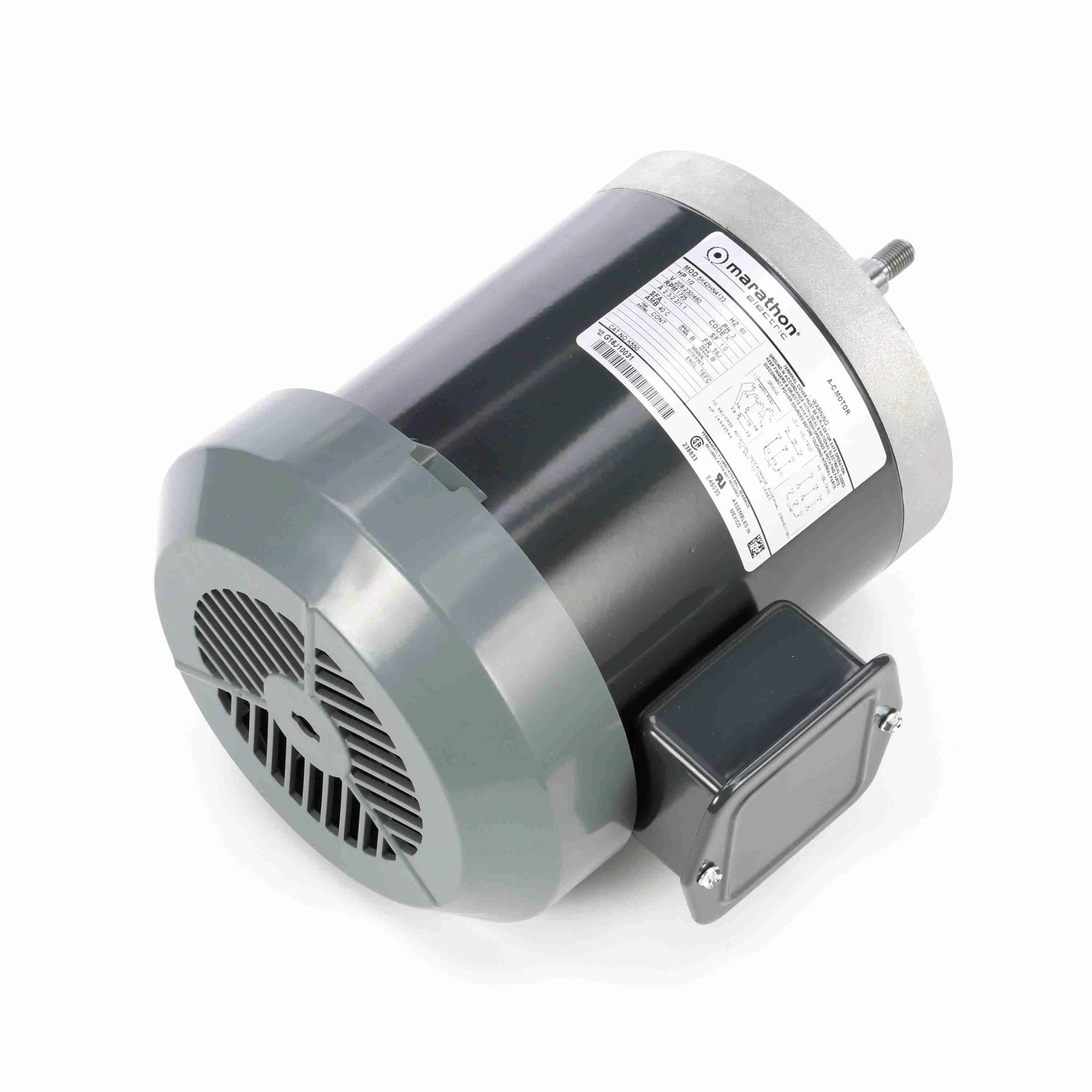

| Item | Jet Pump Motor |
| Bearings | Ball |
| Body Dia. | 6.42" |
| Duty | Continuous |
| Enclosure | Totally Enclosed Fan-Cooled |
| Frame | 56J |
| Full Load Amps | 2.3-2.2/1.1 |
| Hp | 1/2 |
| Hz | 60 |
| Insulation Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pumps |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pumps |
| Motor Thermal Protection | None |
| Motor Type | 3-Phase |
| Mounting | Face |
| Mounting Position | Horizontal Or Vertical |
| Nameplate Rpm | 1725 |
| Overall Length | 11.5" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm Range | 1701-1800 |
| Service Factor | 1.0 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.375" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded 7/16-20 UNF-2A |
| Thermal Protection | None |
| Voltage | 208-230/460 |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501514040 |
| Country of Origin | MX |
