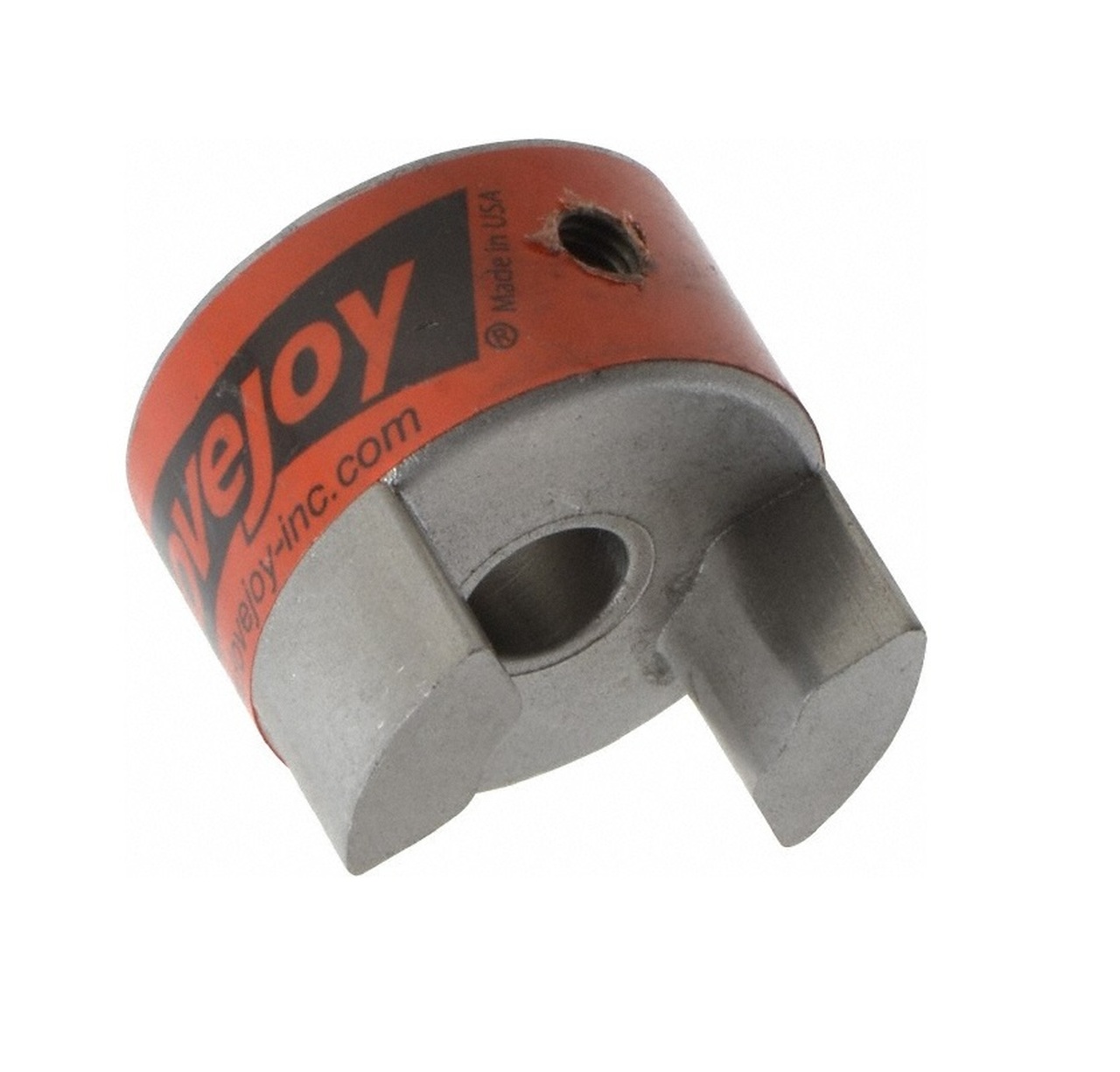

| Item | C Type Hub |
| # Of Jaws | 3 |
| Bore Size | 1 1/4" |
| Bore Type | Rough Stock Bore |
| Color | Gray/Metallic |
| Coupling Size | C280 |
| Coupling Type | C |
| Dimension Cd | 7.81" |
| Dimension Cl | 0.12" |
| Dimension G | 1.63" |
| Dimension Hd | 5.5" |
| Dimension Sl | 1.56" |
| Distance Between Spider And Hub Face (dimension Cl) | 0.12" |
| Elastomeric Member | SOX (NBR) Rubber |
| Hp Rating @ 100 Rpm | 12hp |
| Hp Rating @ 1200 Rpm | 114hp |
| Hp Rating @ 1800 Rpm | 216hp |
| Hub Length | 4.75" |
| Hub Style | 3 |
| Keyway | Without Keyway |
| Length Through Bore | 3.12" |
| Material | Cast Iron |
| Max. Bore | 3" |
| Max. Speed | 3500 rpm |
| Min. Bore | 1.25" |
| Moment Of Inertia Wr2 | 362 Lbs.In.Sq. |
| Nominal Torque | 7560 in.-lbs. |
| Number Of Jaws | 3 |
| Outside Dia. | 7.5" |
| Rated Hp At 1,200 Rpm | 114 hp |
| Rated Hp At 1,800 Rpm | 216 hp |
| Rated Hp At 100 Rpm | 12 hp |
| System Of Measurement | Imperial |
| Thread | 1/2-13 |
| Thread Dia. | 1/2"-13 |
| Threads Per Inch | 1/2"-13 |
| Ship weight (kg) | 13.275 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 15.7 |
| Ship width (cm) | 15.7 |
| Country of Origin | US |
| Model | Coupling Size | Bore Size | Thread | Length through Bore | Outside Dia. | Hub Style | Material | Nominal Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 68514441036 | C285 | 1 1/4" | 5/8-11 | 3.75" | 8.5" | - | Cast Iron | 9182 in.-lbs. | €473.01 | |
| 68514441037 | C295 | 1 1/2" | 5/8-11 | 3.75" | 9.12" | - | Cast Iron | 11340 in.-lbs. | €678.58 | |
| 68514440126 | C276 | 7/8" | 1/2-13 | 3.12" | 6.18" | - | Cast Iron | 4716 in.-lbs. | €326.60 | |
| 68514440125 | C226 | 7/8" | 1/2-13 | 2.75" | 5.15" | - | Cast Iron | 2988 in.-lbs. | €278.04 | |
| 68514441038 | C2955 | 1 3/4" | 5/8-11 | 4.25" | 9.12" | 3 | Cast Iron | 18900 in.-lbs. | €785.40 |
