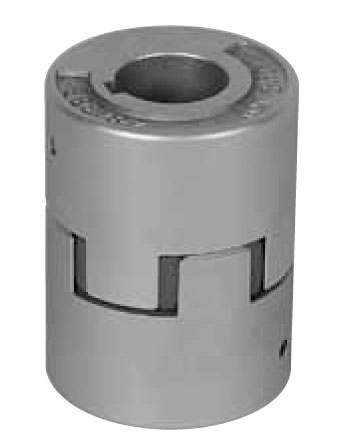

| Item | CJ Series Hub |
| Angular Displacement | 0.050" |
| Bore Size | 25mm |
| Bore Type | Bored |
| Color | Metallic |
| Coupling | Jaw |
| Coupling Size | CJ28 |
| Coupling Type | CJ |
| Dimension G | 0.790" |
| Dimension Hd | 1.890" |
| Dimension U | 1.100" |
| Distance Between Spider And Hub Face (dimension Cl) | 0.100" |
| Hub Style | A |
| Keyway Depth | 8mm x 3.3mm |
| Keyway Width | 8mm x 3.3mm |
| Length Through Bore | 1.380" |
| Material | Powder Metal |
| Max. Angular Displacement (Δ Ka), N=1500 [1/min] | 0.90 Deg. |
| Max. Axial Displacement | 0.0600" |
| Max. Bore | 1.1" |
| Max. Radial Displacement | 0.0100" |
| Max. Speed | 8500 rpm |
| Max. Torque | 1680 in.-lbs. |
| Min. Bore | 0.470" |
| Nominal Torque | 840 in.-lbs. |
| Normal Temperature Range | -40 Deg. to 212 Deg. F |
| Outside Dia. | 2.560" |
| Overall Coupling Length | 3.540" |
| Screw Thread Dia. | 5/16"-18 |
| Screw Thread Per Inch | 5/16"-18 |
| Set Screw Style Coupling Location Size | 0.590" |
| Spider Inside Diameter | 1.180" |
| Spider Outside Diameter | 2.560" |
| Spider Thickness (dimension W) | 0.590" |
| Style | Bored |
| System Of Measurement | Metric |
| Temp. Range | -50 Deg. to 248 Deg. F |
| Volume | 11.96520 cu. in. |
| Ship weight (kg) | 0.4518 |
| Ship height (cm) | 11.4 |
| Ship length (cm) | 8 |
| Ship width (cm) | 8 |
| Country of Origin | US |
| Model | Coupling Size | Bore Size | Keyway Size | Hub Style | Outside Dia. | Overall Coupling Length | Coupling Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 68514472006 | CJ38 | 35mm | 10 mm x 3.3 mm | A | 80mm | 114.05mm | CJ | €83.66 | |
| 68514472002 | - | 25mm | 8 mm x 3.3 mm | A | 80mm | 114.05mm | CJ | €87.42 | |
| 68514472007 | CJ38 | 38mm | 10 mm x 3.3 mm | A | 80mm | 114.05mm | CJ | €110.30 | |
| 68514472533 | CJ19 | 14mm | 5 mm x 2.3 mm | A | 39.88mm | 66.04mm | CJ | €34.94 | |
| 68514472004 | CJ38 | 30mm | 8 mm x 3.3 mm | A | 80mm | 114.05mm | CJ | €87.42 | |
| 68514472538 | CJ24 | 14mm | 5 mm x 2.3 mm | A | 55.88mm | 77.98mm | CJ | €44.44 | |
| 68514472542 | CJ24 | 19mm | 6 mm x 2.8 mm | A | 55.88mm | 77.98mm | CJ | €49.94 |
