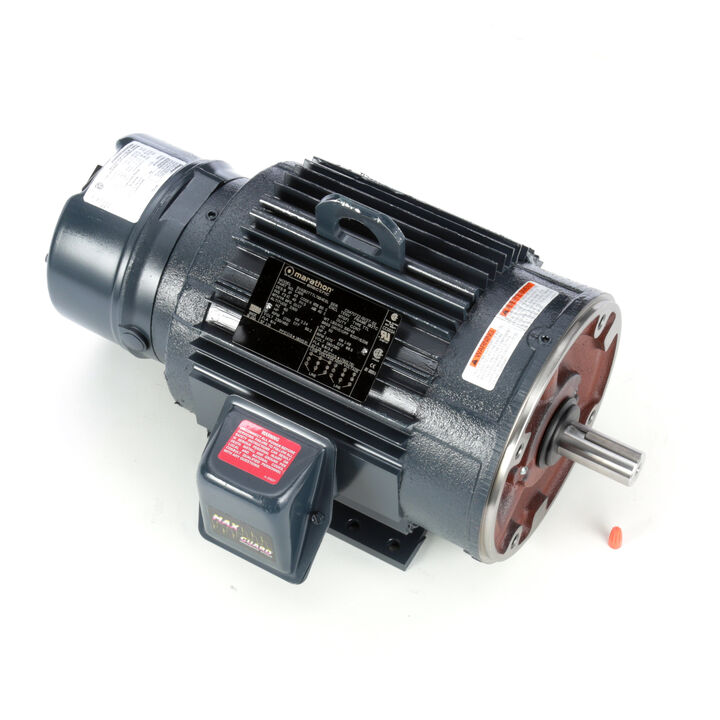

| Item | Brake Motor |
| Ambient Temp. Range | 40°C |
| Bearings | Ball |
| Brake Model/series | Series 56, Series 87 |
| Brake Rating | 15 ft.-lb. |
| Break-down Torque | 35 ft.-lbs. |
| Cc Number | Cc003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1/F2 |
| Duty Cycle | Continuous |
| Enclosure | Totally Enclosed Nonventilated |
| Frame | 182Tc |
| Frame Material | Aluminum |
| Full Load Amps | 8.0/4.0 |
| Hp | 3 hp |
| Hz | 60 |
| Insulation Class | F3 |
| Inverter Rated | yes |
| Length Less Shaft | 17.062" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Brake Motor |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | 3-Phase |
| Mounting | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| Nominal Efficiency | 90.2% |
| Number Of Speeds | 1 |
| Overall Length | 19.688" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm Range | 1701 - 1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 5/8" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460 |
| Weight | 100 lbs. |
| Ship weight (kg) | 45 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.7 |
| HS code | 8501524000 |
| Country of Origin | US |
