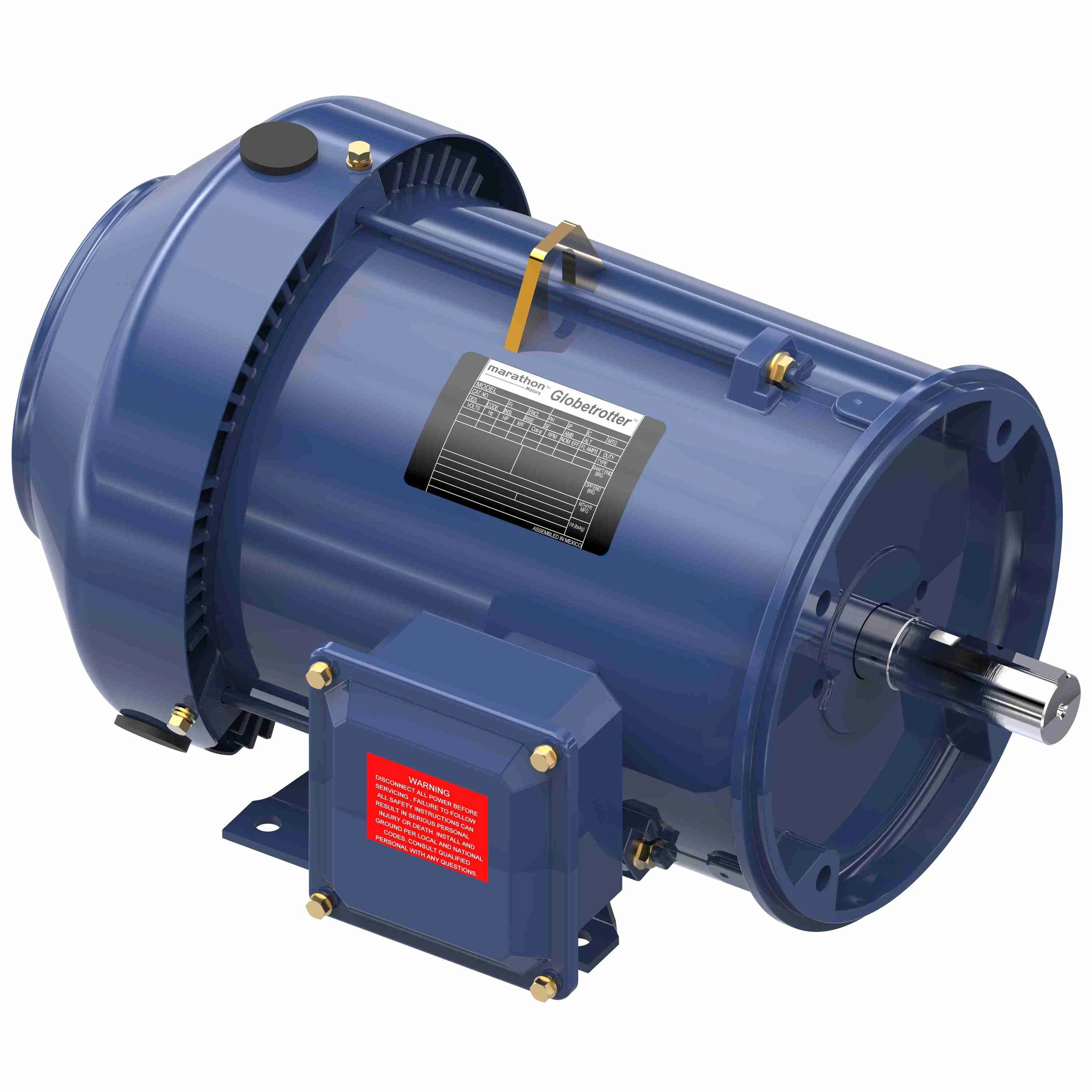

| Item | General Purpose Motor |
| Bearings | Ball |
| Capacitor Required | No |
| Cc Number | Cc003A |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 87.5% |
| Efficiency Group | Premium |
| Frame | 184Tc |
| Frame Material | Steel |
| Full Load Amps | 12.4/6.2A |
| Hp | 5 hp |
| Hz | 50/60 |
| Insulation Class | Class F |
| Inverter Rated | yes |
| Length Less Shaft | 14 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting | Rigid Base |
| Nameplate Rpm | 3525 RPM |
| Nema Design | A |
| Nominal Efficiency | 91% |
| Number Of Speeds | 1 |
| Overall Length | 16 7/8" |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm Group | 3001-3600 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 1 yr. |
| Ship weight (kg) | 42.75 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 40.01 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Frame | Frame Material | Full Load Amps | HP | Hz | Length Less Shaft | Max. Ambient Temp. | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

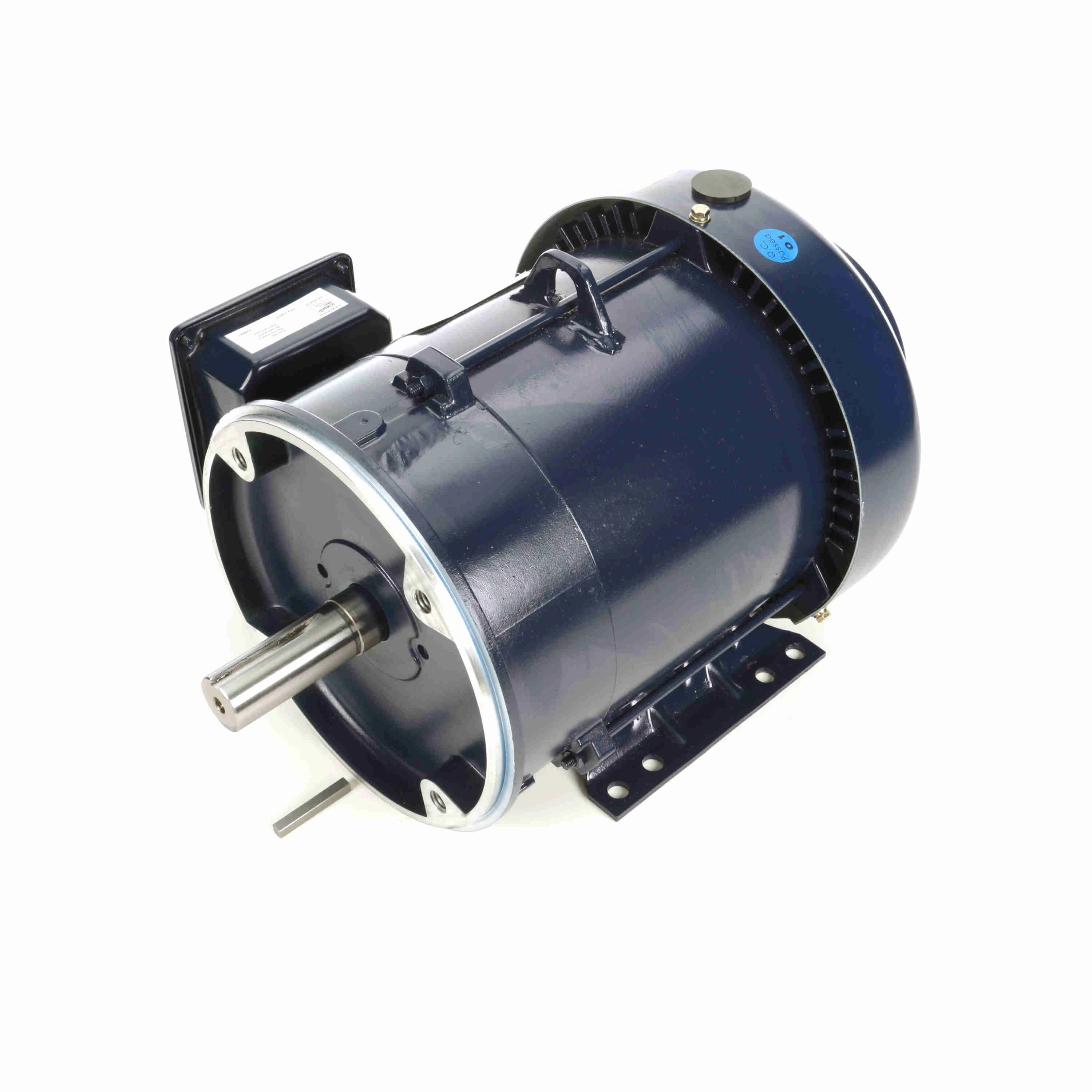

182TTFBD6003 | 182TC | Rolled Steel | 7.6/3.8 | 3 | 50/60 | 12.875" | 40 Degrees C | 3-Phase | €689.74 | |
 |

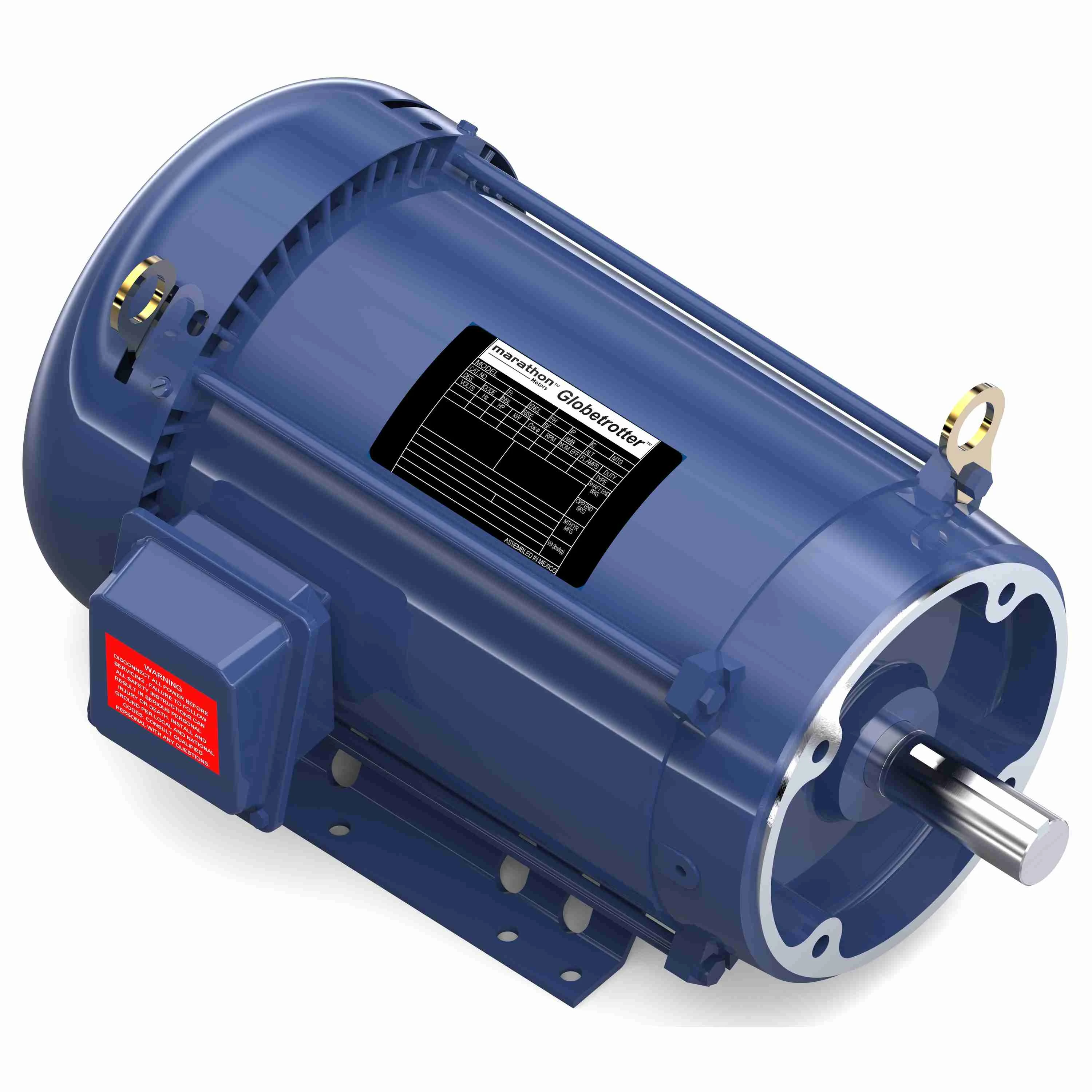

215TTFBD6003 | 215TC | Rolled Steel | 22.8/11.4 | 10 | 50/60 | 17.625" | 40 Degrees C | 3-Phase | €1,146.10 | |
 |

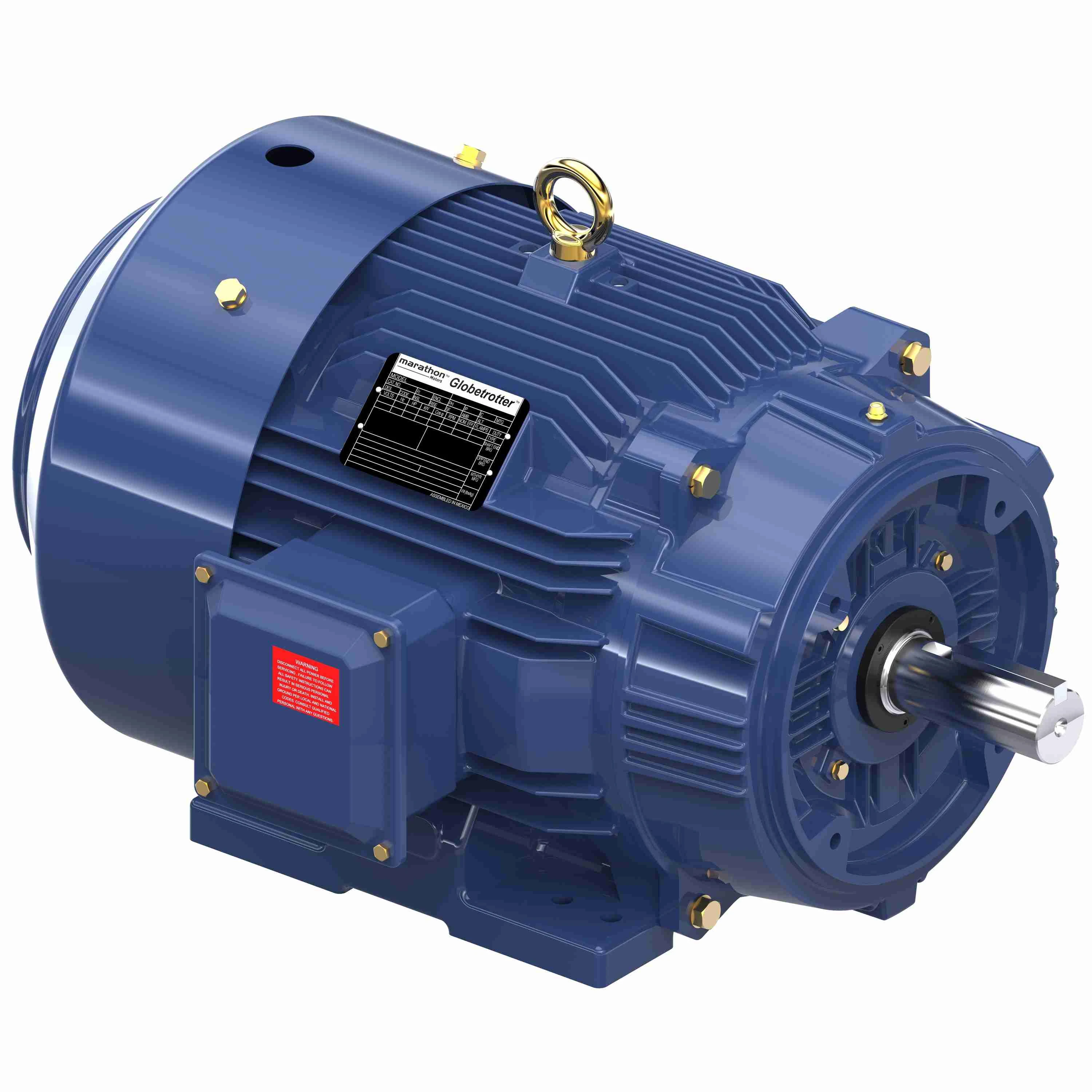

284TTFCD6028 | 284TC | Cast Iron | 61/30.5 | 25 | 50/60 | 25 9/16" | 40 Degrees C | 3-Phase | €2,283.65 | |
|
286TTFCD6028 | 286TC | Cast Iron | 73/36.5 | 30 | 50/60 | 26.75" | 40 Degrees C | 3-Phase | €2,392.15 | |
 |
184TTFBD6003 | 184TC | Steel | 12.4/6.2A | 5 | 60 Hz | 14 1/8" | 40 Deg. C | 3 phase | €718.86 |
