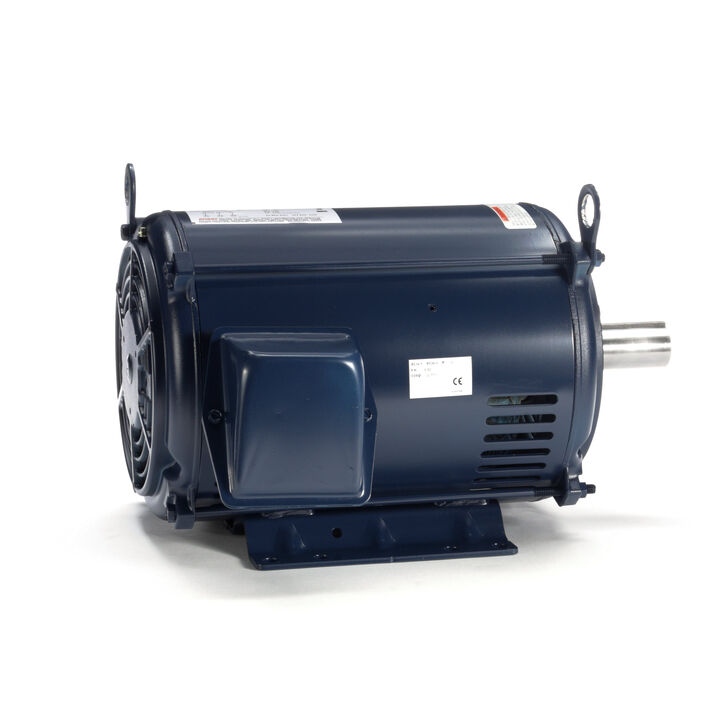

| Item | General Purpose Motor |
| Bearings | Ball |
| Duty | Continuous |
| Efficiency | 81.5% |
| Efficiency Group | Nema Premium Efficient |
| Frame | 213T |
| Frame Material | Rolled Steel |
| Full Load Amps | 23.0 |
| Hp | 7.5 |
| Hz | 60 |
| Insulation Class | B |
| Inverter Rated | No |
| Length Less Shaft | 13 13/16" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1765 |
| Nominal Efficiency | 81.5% |
| Number | CC003A |
| Overall Length | 17 5/16" |
| Phase | 3 |
| Rpm Group | 1701-1800 |
| Rpm Range | 1701-1800 |
| Service Factor | 1.15 |
| Shaft Dia. | 1.375" |
| Shaft Length | 3.5" |
| Voltage | 200 |
| Ship weight (kg) | 65.25 |
| Ship height (cm) | 37.47 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 42.55 |
| HS code | 8501524000 |
| Country of Origin | US |
