QA1 MCFL12S Rod End, Female Studded, 12 mm Bore Dia, Left Hand Thread, Carbon Steel | CT8HRW 39N460

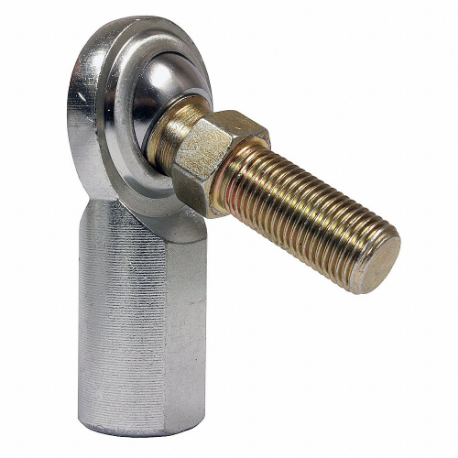

QA1 MCFL12S Rod End, Female Studded, 12 mm Bore Dia, Left Hand Thread, Carbon Steel

Item: CT8HRW Model: MCFL12SCross Ref: 39N460
In Stock

Get it by Tuesday, Dec 3

Flat Shipping at € + TVA € flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€26.21 /unit
Add To Cart
Request a Quote

Payment Options Available

Product Specifications:

ApplicationLight Duty
Ball Dia.22.23 mm
Ball MaterialAlloy Steel
Ball Material GradeGrade 52100
Ball Stud Center Length57.38 mm
Ball Stud Thread DirectionRight Hand
Ball Stud Thread Length24.5 mm
Ball Stud Thread SizeM12 x 1.75
Bore Dia.12 mm
Bore Dia. Tolerance-0.012" to +0.065"
Head Outside Diameter30 mm
Head Width10.75 mm
Housing MaterialCarbon Steel
Housing Material FinishChrome Plated
Inner Ring Width16 mm
Max. Ball Swivel27°
Overall Length65 mm
Resistance PropertiesCorrosion Resistant
Rod End TypeSpherical Rod End
Shank Thread DirectionLeft Hand
Shank Thread GenderFemale
Shank Thread Length24 mm
Shank Thread SizeM12 x 1.75
Static Radial Load Capacity25819N
Stud MaterialCarbon Steel

Shipping Info:

Ship weight (kg) 0.171
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginCN
