Get it by Tuesday, Dec 3
Flat Shipping at € + TVA € flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment Options Available
| Item | Hose Reel |
| Hose | No |
| Hose I.d. | 3/8" |
| Hose Inside Dia. | 10mm |
| Hose Length | 50ft. |
| Hose Outside Dia. | 0.6" |
| Inlet | 1/2" NPT(F) |
| Max. Temp. | 150 Deg.F |
| Outlet | 1/4" NPT(F) |
| Pressure | 300 psi |
| Reel Dia. | 419mm |
| Weight | 22 Lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 15.88 |

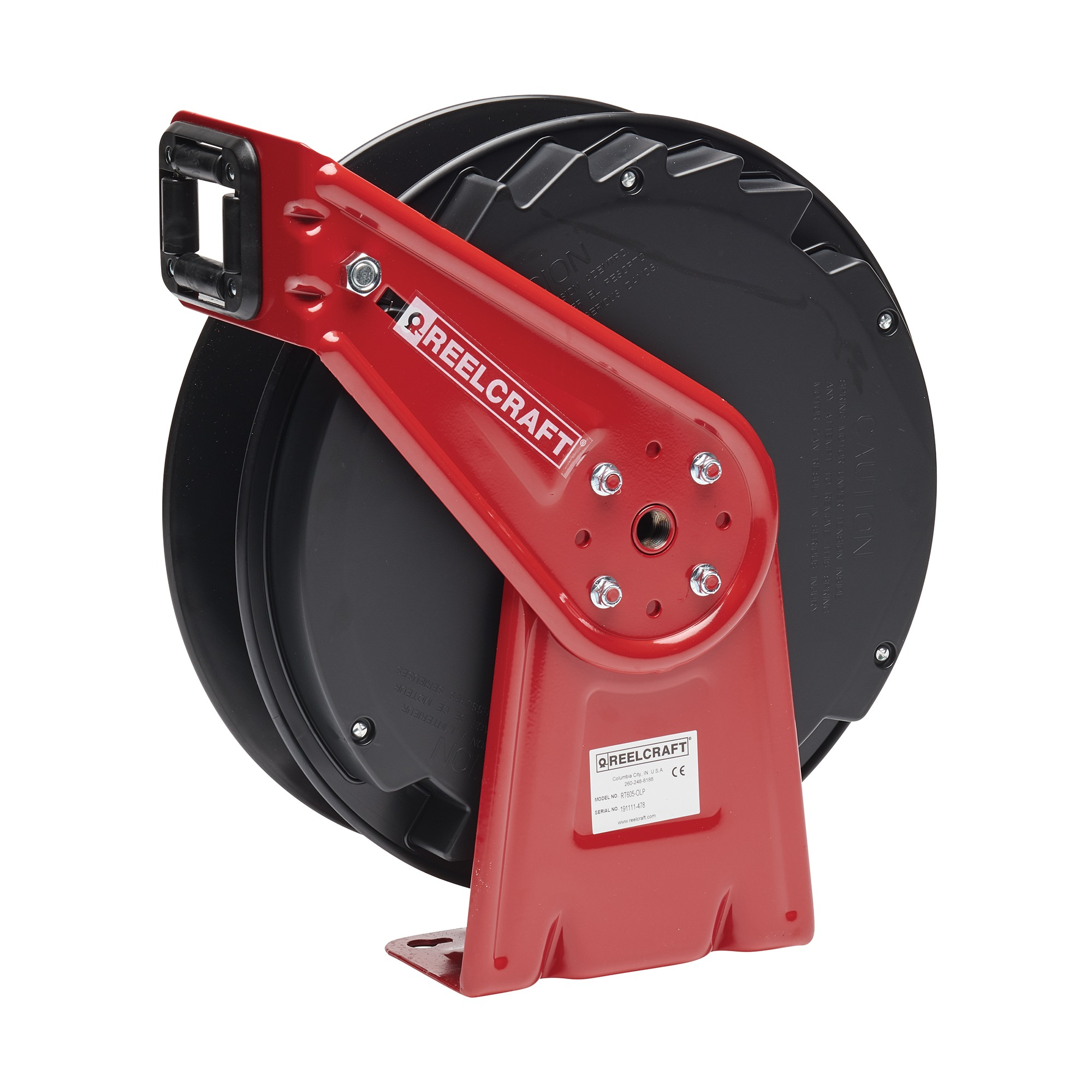

,The Reelcraft Series RT is an economical choice for a medium duty, lighter-weight, spring retractable hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use., , ,Spool is constructed from a rugged engineered plastic, ,Individually powder coated steel components offer maximum protection from premature corrosion, ,The steel guide arm and base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight, ,Widened ratchet and latch pawl design greatly reduces wear and increases service life, ,The industrial-grade drive spring completely containerized and permanently sealed, ,Inlet hose is plumbed into the base to eliminate the risk of undue stress on the swivel, ,Guide arm adjusts to seven positions, ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
| Product | Model | Hose | Hose Ends | Hose I.d. | Hose Inside Dia. | Hose Length | Hose Material | Hose Outside Dia. | Inlet | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RT803-OLP1 | - | - | No | 1/2" | 35ft. | - | - | - | €336.10 | |
|
RT403-OLP1 | - | - | No | 1/4" | 35ft. | - | - | - | €217.82 | |
 |
RT435-OHP1 | - | 1/4" (M)NPT x 3/8" (M)NPT | Yes | 1/4" | 35ft. | SAE 100 R2 T | - | - | €490.79 | |
|
RT635-OMP1 | - | 3/8" (M)NPT | Yes | 3/8" | 35ft. | SAE 100 R1 T | - | - | €462.38 | |
 |
RT650-OHP1 | - | 3/8" (M)NPT | Yes | 3/8" | 50ft. | SAE 100 R2 T | - | - | €816.51 | |
 |
RT835-OLPSM1 | - | 1/2" (M)NPT | Yes | 1/2" | 35ft. | PVC | - | - | €416.29 | |
 |
RT450-OLP | Yes | 1/4" NPT(M) | 1/4" | 6mm | 50ft. | - | 0.475" | 1/2" NPT(F) | €338.71 |
