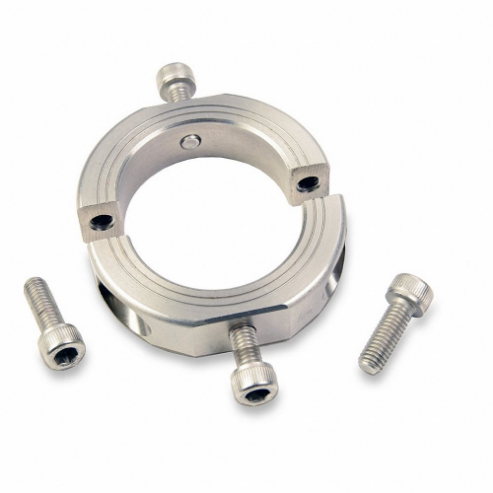

| Bore Dia. | 1" |
| Bore Tolerance | +0.002" to +0.0005" |
| Bore Type | Round |
| Clearance Dia. | 52.1 mm |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Width | 15 mm |
| Component Mount Type | Outer Diameter Holes With Wrench Flats |
| Construction | Two Piece |
| Distance Across Flats | 26 mm |
| Flat To Bore | 8 mm |
| For Shaft Dia. | 1" |
| For Shaft Type | Round |
| Grade | Grade 303 |
| Included Screws | (2) Clamp Screw |
| Max. Operating Temp. | 350°F |
| Min. Operating Temp. | -40°F |
| Mount Hole Thread Size | M6 |
| Outside Dia. | 45 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 16 mm |
| Screw Location From Center | 17.5 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 9.6 N-m |
| Screw Thread Size | M6 x 16 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Metric With Inch Bore |
| Width Tolerance | -0.254 mm to +0.076 mm |
| Ship weight (kg) | 0.108 |
| Ship height (cm) | 1.43 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
OF-MCL-24E-AN | €110.27 | |
 |
OF-MSP-24E-AN | €142.21 | |
 |
OF-CL-24-A | €39.82 | |
|
OF-SP-24-A | €66.42 | |
 |
OF-CL-24-F | €41.74 | |
 |
OF-SP-24-F | €47.51 | |
 |
OF-MCL-24E-F | €66.89 |
