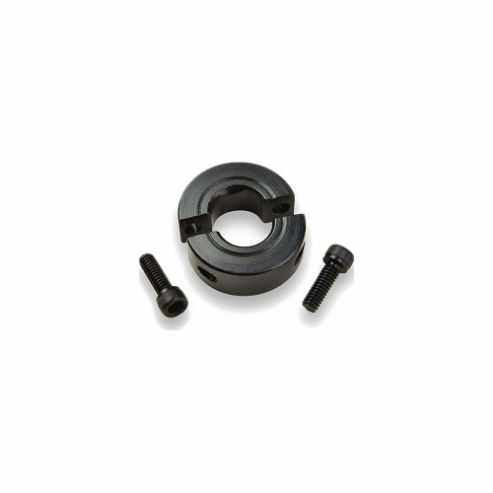

| Bore Dia. | 3/8" |
| Bore Tolerance | +0.002" to +0.0005" |
| Bore Type | D |
| Clearance Dia. | 1.03" |
| Collar Material | Carbon Steel |
| Collar Material Finish | Black Oxide |
| Collar Width | 0.344" |
| Construction | Two Piece |
| For Shaft Dia. | 3/8" |
| Grade | Grade 1215 |
| Included Screws | (2) Clamp Screw |
| Inside Height To Flat | 0.35" |
| Max. Operating Temp. | 350°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 7/8" |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 0.31" |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 28 in.-lbs. |
| Screw Thread Size | #6-32 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width Tolerance | -0.01" to +0.003" |
| Ship weight (kg) | 0.0184 |
| Ship height (cm) | 115597.94 |
| Ship length (cm) | 0.87 |
| Ship width (cm) | 0.87 |
| Country of Origin | US |
| Model | Bore Dia. | Clearance Dia. | Material | Outside Dia. | Screw Material | Screw Size | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
| SPD-12-F | 3/4" | 1.808" | Black Oxide 1215 Lead Free Steel | 1.5" | Alloy Steel | 1/4"-28 | 1/2" | €52.59 | |
| SPD-12-SS | 3/4" | 1.808" | 303 Stainless Steel | 1.5" | Stainless Steel | 1/4"-28 | 1/2" | €83.88 | |
| SPD-16-F | 1" | 2.032" | Black Oxide 1215 Lead Free Steel | 1.75" | Alloy Steel | 1/4"-28 | 1/2" | €57.85 | |
| SPD-16-SS | 1" | 2.032" | 303 Stainless Steel | 1.75" | Stainless Steel | 1/4"-28 | 1/2" | €97.10 | |
| SPD-4-F | 1/4" | 0.773" | Black Oxide 1215 Lead Free Steel | 5/8" | Alloy Steel | #4-40 | 9/32" | €40.94 | |
| SPD-4-SS | 1/4" | 0.773" | 303 Stainless Steel | 5/8" | Stainless Steel | #4-40 | 9/32" | €56.26 | |
| SPD-8-F | 1/2" | 1.281" | Black Oxide 1215 Lead Free Steel | 1.125" | Alloy Steel | #8-32 | 13/32" | €42.90 |
