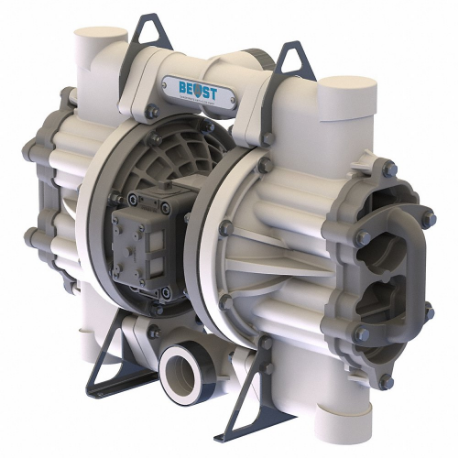

| Item | Double Diaphragm Pump |
| Air Consumption | 140 SCFM |
| Center Section Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Connection Size | 2" |
| Connection Type | NPT |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 200 GPM |
| Flow Rate @ 20 Psi | 125 GPM |
| Flow Rate @ 40 Psi | 160 GPM |
| Flow Rate @ 60 Psi | 180 GPM |
| Flow Rate @ 80 Psi | 190 GPM |
| Grade | Grade 316 |
| Housing Material | Aluminum |
| Inlet Size | 3/4" |
| Inlet Type | NPT |
| Manifold Connection Type | Single Port |
| Max. Flow Rate | 208 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 275°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 2" |
| Media Discharge Location | Bottom |
| Media Intake Location | Top |
| Overall Height | 20.9" |
| Overall Length | 29.7" |
| Overall Width | 12.7" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Self Priming | Yes |
| Series | SPB20 Series |
| Valve Material | Stainless Steel |
| Valve Type | Flap |
| Ship weight (kg) | 31.5 |
