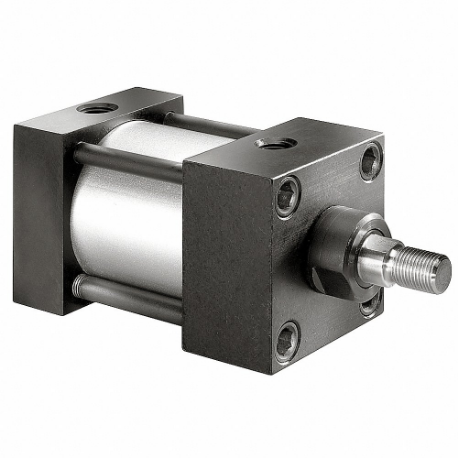

| Action | Double Acting |
| Body Material | Aluminum |
| Bore Dia. | 1 1/2" |
| Color | Black, Silver |
| Cushion Type | Adjustable |
| Cylinder Type | Nfpa |
| End Cap Material | Aluminum |
| Features | Cushioned, Piston Magnet, Square Head |
| Magnetic Piston | No |
| Max. Load | 441 lbs. |
| Max. Pressure | 250 psi |
| Mount | Side Tapped/Sleeve Nut |
| Overall Length | 17 7/8" |
| Piston Material | Aluminum |
| Piston Rod Finish | Chrome Plated |
| Piston Rod Material | Steel |
| Port Size | 1/4" |
| Port Type | Npt |
| Rod Dia. | 5/8" |
| Rod Thread Length | 3/4" |
| Rod Thread Size | 1/2"-20 |
| Single Acting/double Acting | Double Acting |
| Stroke | 12 1/2" |
| Temp. Range | -20.0°F to +200.0°F |
| Tie Rod Material | Steel |
| Tube Material | Aluminum |
| Type | Nfpa |
| Ship weight (kg) | 2.0475 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Body Material | Bore Dia. | Cushion Type | Cylinder Type | End Cap Material | Finish | Magnetic Piston | Max. Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ATF9 | 304 Stainless Steel | 3/4" | None | Compact | Anodized Aluminum Alloy | Silver | No | - | €87.23 | |
|
3ATJ7 | 304 Stainless Steel | 3" | None | Compact | Clear Anodized Aluminum Alloy | Silver | No | - | €200.19 | |
 |
5TEK3 | Stainless Steel | 2.5" | Adjustable | NFPA | Stainless Steel | Silver | No | 1,227 lb. | €1,409.17 | |
 |
5VAU6 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 | |
|
5VAU7 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 | |
|
5VAU8 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 | |
|
5VAU9 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 |
