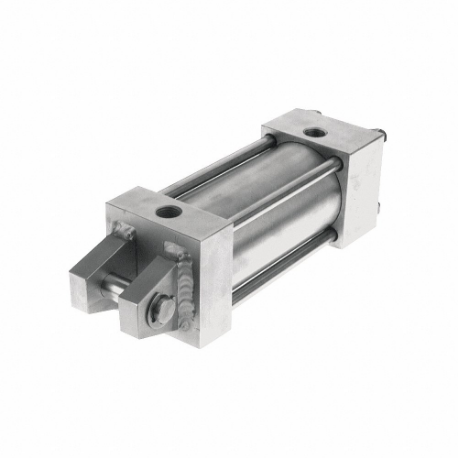

| Action | Double Acting |
| Body Material | Stainless Steel |
| Bore Dia. | 4" |
| Color | Silver |
| Cushion Type | Adjustable |
| Cylinder Type | Nfpa |
| End Cap Material | Stainless Steel |
| Features | Adjustable Air Cushion, Switch Ready |
| Magnetic Piston | No |
| Max. Load | 3141 lbs. |
| Max. Pressure | 250 psi |
| Mount | Clevis |
| Overall Length | 16 1/4" |
| Piston Material | Aluminum Alloy |
| Piston Rod Material | Stainless Steel |
| Pivot Hole Dia. | 3/4" |
| Port Size | 1/2" |
| Port Type | Npt |
| Rod Dia. | 1" |
| Rod Thread Length | 1 1/8" |
| Rod Thread Size | 3/4"-16 |
| Single Acting/double Acting | Double Acting |
| Stroke | 7 1/2" |
| Temp. Range | -20.0°F to +200.0°F |
| Tie Rod Material | Stainless Steel |
| Tube Material | Stainless Steel |
| Type | Nfpa |
| Ship weight (kg) | 14.67 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Body Material | Bore Dia. | Cushion Type | Cylinder Type | End Cap Material | Finish | Magnetic Piston | Max. Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

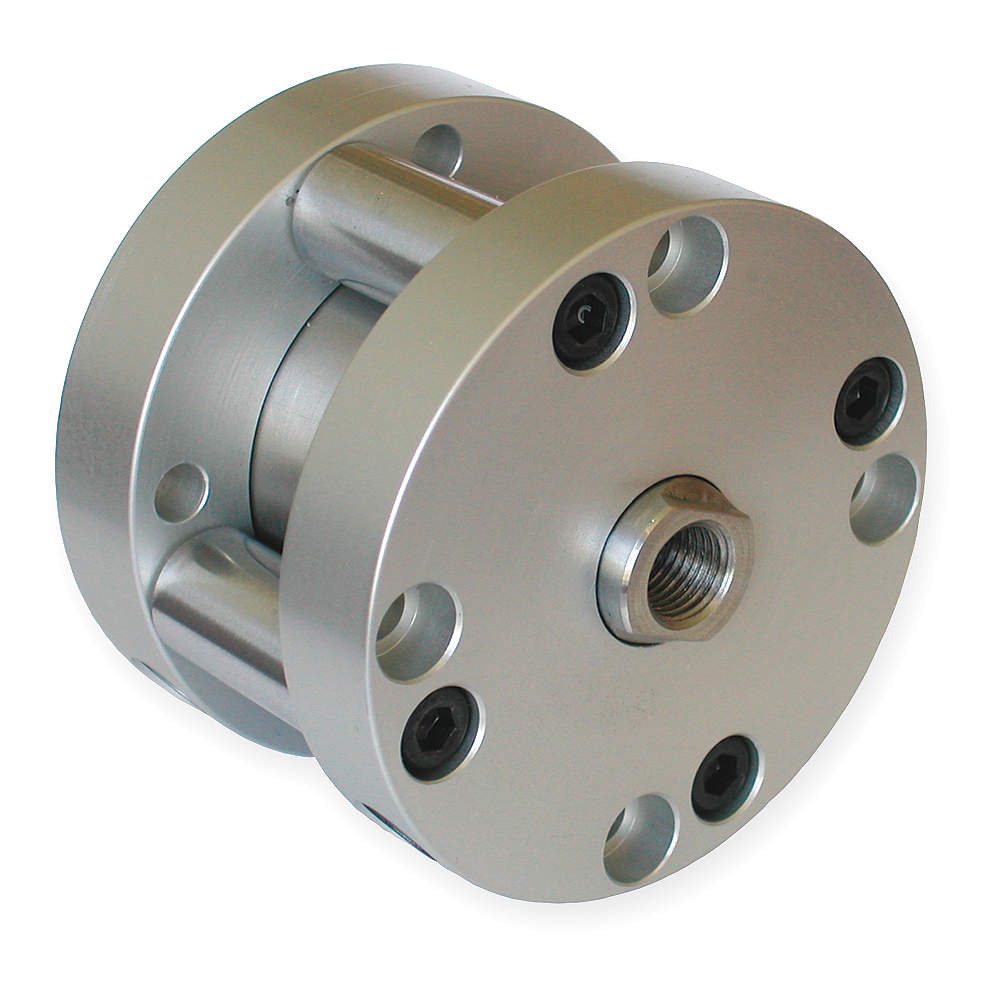

3ATF9 | 304 Stainless Steel | 3/4" | None | Compact | Anodized Aluminum Alloy | Silver | No | - | €87.23 | |
|
3ATJ7 | 304 Stainless Steel | 3" | None | Compact | Clear Anodized Aluminum Alloy | Silver | No | - | €200.19 | |
 |
5TEK3 | Stainless Steel | 2.5" | Adjustable | NFPA | Stainless Steel | Silver | No | 1,227 lb. | €1,409.17 | |
 |
5VAU6 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 | |
|
5VAU7 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 | |
|
5VAU8 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 | |
|
5VAU9 | Steel | 2" | Adjustable | NFPA | Steel | Black | No | 785 lb. | €623.55 |
