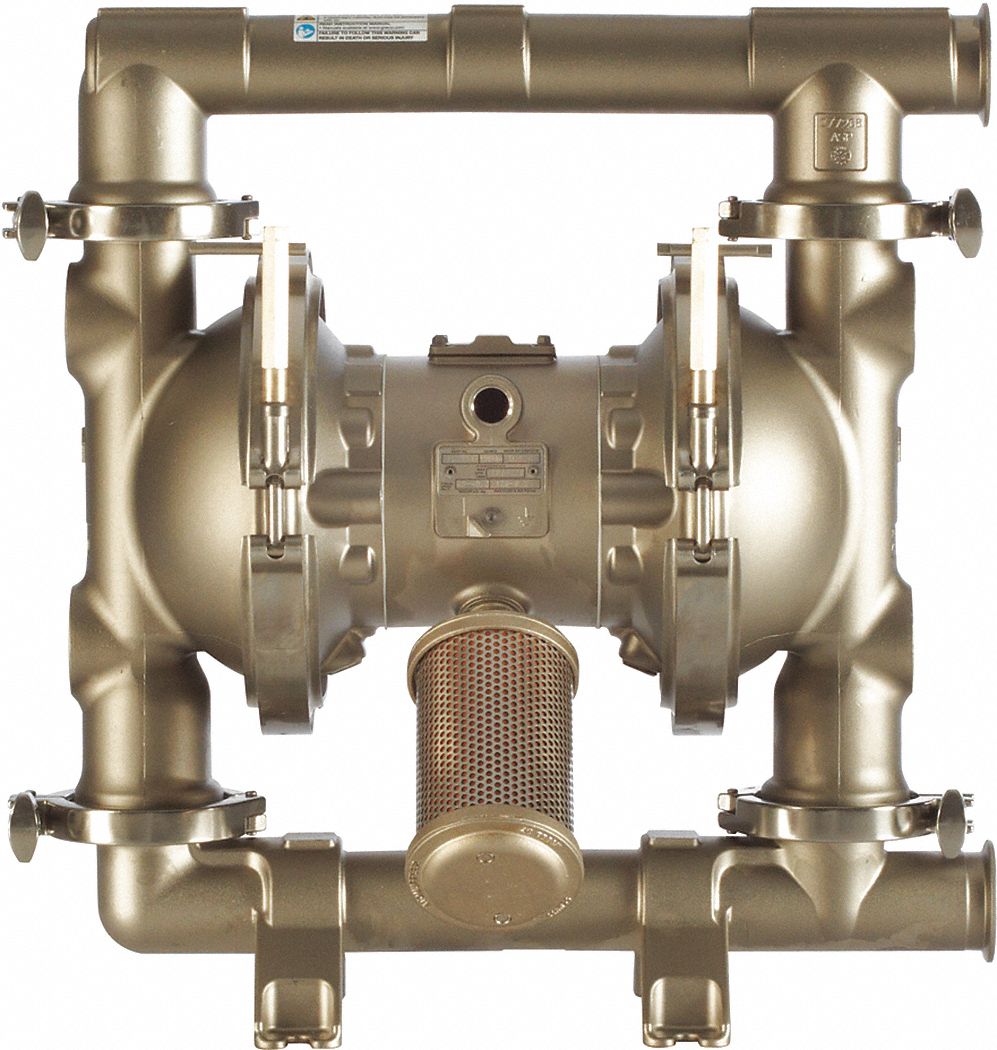

| Item | Diaphragm Pump |
| Agency Compliance | Atex.Jpg, Ce.Png |
| Air Consumption | 45 SCFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | Npt |
| Ball Material | Santoprene |
| Center Section Material | Stainless Steel |
| Center Section Material Grade | Grade 304 |
| Check Seat Material | Stainless Steel |
| Check Seat Material Grade | Grade 316 |
| Connection Type | Tri Clamp |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| For Use With Potable Systems | Yes |
| Grade | Grade 316 |
| Height | 16.203" |
| Housing Material | Stainless Steel |
| Housing Material Grade | Grade 316 |
| Inlet Size | 1 1/2" |
| Inlet/outlet Size | 1 1/2" |
| Length | 16.312" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Npt |
| Max. Dia. Solids | 1/8" |
| Max. Flow | 41 GPM |
| Max. Flow Gpm | 41 gpm |
| Max. Media Temp. | 180°F |
| Max. Operating Pressure | 120 psi |
| Max. Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Temp. | 180°F |
| Max. Viscosity | 10000 cPS |
| Operation Type | Air Operated |
| Outlet Size | 1 1/2" |
| Overall Height | 16 1/5" |
| Overall Length | 16.3" |
| Overall Width | 8 1/5" |
| Priming | Self Priming |
| Pump Assembly Type | Clamp |
| Self-priming Dry | 16 ft. |
| Self-priming Wet | 29 ft. |
| Suction Port Configuration | Side |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Warranty | 1 yr. |
| Width | 8.203" |
| Ship weight (kg) | 27 |
| Ship height (cm) | 41.15 |
| Ship length (cm) | 41.4 |
| Ship width (cm) | 20.83 |
| Country of Origin | US |
