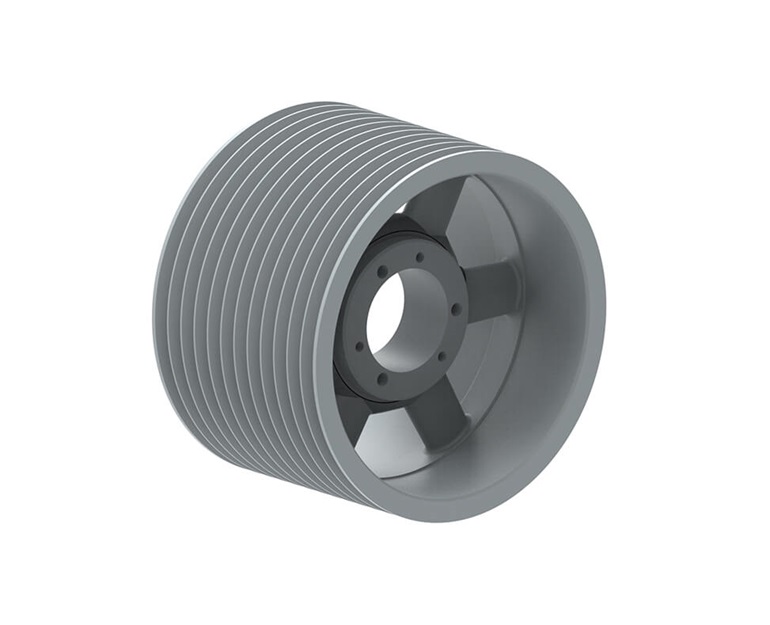

| Item | V-Belt Sheave |
| Balance | Standard, 1 plane |
| Belt Type | C |
| Bore Type | Quick Disconnect Bushing |
| Bushing | J |
| Datum Diameter | 18" |
| Dimension E | 2.81" |
| Dimension L | 4 1/2" |
| Dimension M | 5.06" |
| Face Width | 12.38" |
| Hub Location | 4.06" |
| Inertia Wr | 70.6 lbs.-sq. ft. |
| Inside Dia. | 16.06" |
| Material | Cast Iron |
| Max. Rpm | 1360 RPM |
| Number Of Grooves | 12 |
| Outside Dia. | 18.4" |
| Overall Length | 12.375" |
| Pitch Dia. | 18.4" |
| Product Type | Classical |
| Rpm High | 1360 rpm |
| Weight | 177 Lbs. |
| Ship weight (kg) | 76.05 |
| Product | Model | 4l, A, Or Ax Belt Pitch Dia. | 4la Or A Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | Belt Type | Bushing Required | Construction | Datum Diameter | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1104B | 10.6" | 10.6" | 11" | B | SK | Arm | 11" | 0.28" | €346.81 | |
|
1364B | 13.2" | 13.2" | 13.6" | B | SK | Arm | 13.6" | 0.28" | €405.80 | |
 |
1603B | 15.6" | 15.6" | 16" | B | SK | Arm | 16" | 0.03" | €394.44 | |
|
1604B | 15.6" | 15.6" | 16" | B | SF | Arm | 16" | 0.31" | €531.30 | |
|
1844B | 18" | 18" | 18.4" | B | SF | Arm | 18.4" | 0.31" | €520.04 | |
 |
2501B | 24.6" | 24.6" | 25" | B | SF | Arm | 25" | 0.31" | €688.26 | |
 |
424B | 3.8" | 3.8" | 4.2" | B | SD | Solid | 4.2" | 2.06" | €152.96 |
