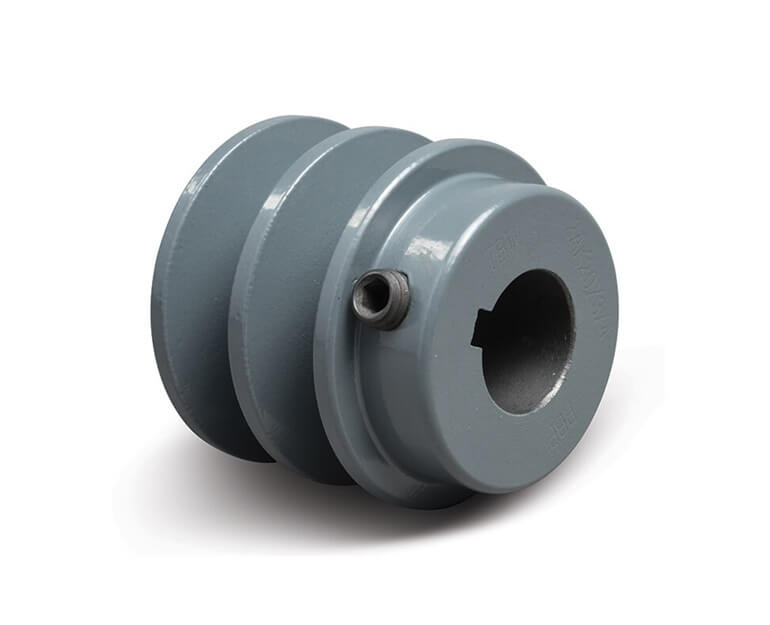

| Item | V-Belt Sheave |
| Belt Type | 3L |
| Bore Type | Finished with Keyway |
| Bore-to-size Bore Dia. | 7/8" |
| Datum Diameter | 2.3" |
| Dimension E | 0.47" |
| Dimension L | 1.66" |
| Face Width | 1.38" |
| Hub Dia. | 1 7/8" |
| Hub Projection (in.) | -0.47" |
| Inertia Wr | 0.01 lbs.-sq. ft. |
| Inside Dia. | 2.18" |
| Material | Cast Iron |
| Max. Rpm | 9810 RPM |
| Number Of Grooves | 2 |
| Outside Dia. | 2.55" |
| Overall Length | 1.84375" |
| Pitch Dia. | 2.55" |
| Product Type | FHPBoredtosize |
| Rpm High | 9810 rpm |
| Weight | 1.5 lbs. |
| Ship weight (kg) | 0.675 |
| Product | Model | 4l, A, Or Ax Belt Pitch Dia. | 4la Or A Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | Belt Type | Bore Dia. | Bore Type | Bore-to-size Bore Dia. | Construction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AK3212 | 3" | 3" | - | 3L | 1/2" | Machinable | 1/2" | Web | €25.95 | |
 |
AK3258 | 3" | 3" | - | 3L | 0.625" | Finished with Keyway | 5/8" | Web | €25.95 | |
|
AK3234 | 3" | 3" | - | 3L | 3/4" | Finished with Keyway | 1 1/4" | Web | €25.95 | |
|
AK3278 | 3" | 3" | - | 3L | 0.875" | Finished with Keyway | 7/8" | Web | €25.95 | |
|
AK321 | 3" | 3" | - | 3L | 1" | Finished with Keyway | 1" | Web | €25.95 | |
 |
AK1041 | 10" | 10" | - | 3L | 1" | Finished with Keyway | 1" | Arm | €102.11 | |
|
AK10434 | 10" | 10" | - | 3L | 3/4" | Finished with Keyway | 1 1/4" | Arm | €102.11 |
