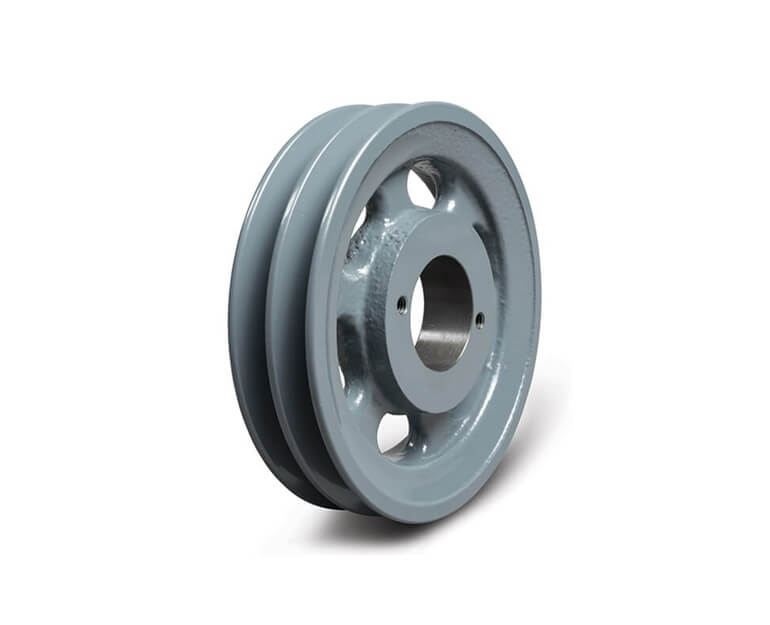

| Item | V-Belt Sheave |
| Belt Type | 4L |
| Bore Type | Quick Disconnect Bushing |
| Bushing | QT |
| Datum Diameter | 6.6" |
| Dimension E | 0.31" |
| Dimension L | 1 1/4" |
| Dimension M | 0.19" |
| Face Width | 1 3/4" |
| Hub Projection (in.) | 0.63" |
| Inertia Wr | 0.28 lbs.-sq. ft. |
| Inside Dia. | 5.2" |
| Material | Cast Iron |
| Max. Rpm | 3600 rpm |
| Number Of Grooves | 2 |
| Outside Dia. | 6.95" |
| Overall Length | 1 3/4" |
| Pitch Dia. | 7.01" |
| Product Type | FHPQT Bushed |
| Rpm High | 3600 rpm |
| Weight | 5.5 Lbs. |
| Ship weight (kg) | 2.475 |
| Model | 4l, A, Or Ax Belt Pitch Dia. | 4la Or A Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | Belt Type | Construction | Datum Diameter | Dimension E | Dimension M | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BK100 | 9" | 9" | 9.4" | 4L | Arm | 9.4" | 0.13" | 1/2" | €100.94 | |
| BK105 | 9.5" | 9.5" | 9.9" | 4L | Arm | 9.9" | 0.13" | 1/2" | €106.20 | |
| BK110 | 10" | 10" | 10.4" | 4L | Arm | 10.4" | 0.13" | 1/2" | €118.41 | |
| BK115 | 10.5" | 10.5" | 10.9" | 4L | Arm | 10.9" | 0.13" | 1/2" | €107.41 | |
| BK120 | 11" | 11" | 11.4" | 4L | Arm | 11.4" | 0.13" | 1/2" | €131.25 | |
| BK130 | 12" | 12" | 12.4" | 4L | Arm | 12.4" | 0.13" | 1/2" | €138.27 | |
| BK140 | 13" | 13" | 13.4" | 4L | Arm | 13.4" | 0.13" | 1/2" | €152.30 |
