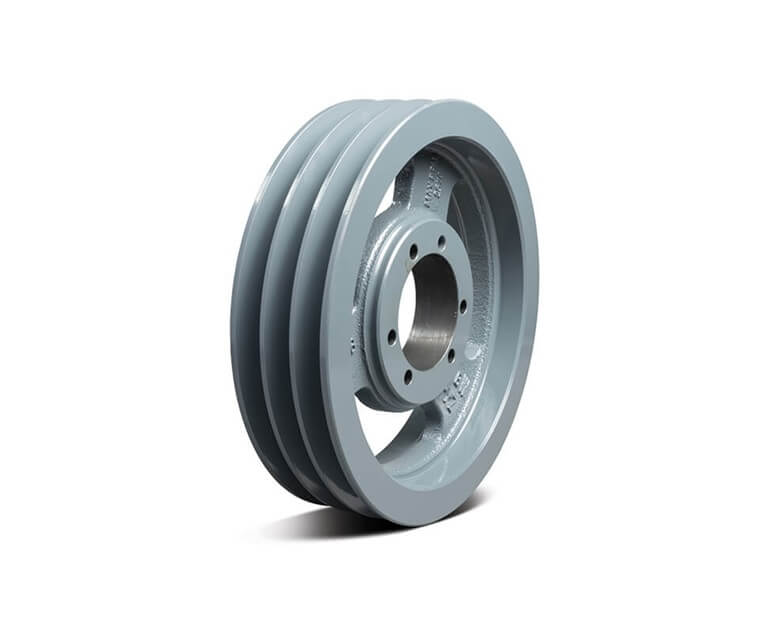

| Item | V-Belt Sheave |
| 4l, A, Or Ax Belt Pitch Dia. | 9" |
| 4la Or A Belt Pitch Dia. | 9" |
| 5l, B, Or Bx Belt Pitch Dia. | 9.4" |
| Balance | Standard, 1 plane |
| Belt Type | B |
| Bore Dia. | Bushing Required |
| Bore Type | Quick Disconnect Bushing |
| Bushing | SK |
| Bushing Required | SK |
| Construction | Arm |
| Datum Diameter | 9.4" |
| Dimension E | 0.03" |
| Dimension L | 1.88" |
| Dimension M | 0.66" |
| Face Width | 2 1/2" |
| Fits Shaft Dia. | 1/2" to 2-1/2" |
| Hub Location | 0.69" |
| Industry Number | 943B |
| Inertia Wr | 1.57 lbs.-sq. ft. |
| Inside Dia. | 8" |
| Material | Cast Iron |
| Max. Rpm | 2570 RPM |
| Number Of Grooves | 3 |
| Outside Dia. | 9.75" |
| Overall Length | 2.53125" |
| Pitch Dia. | 9.81" |
| Product Type | Classical |
| Set Screw Included | No |
| Weight | 15.1 Lbs. |
| Ship weight (kg) | 6.795 |
| Ship height (cm) | 26.42 |
| Ship length (cm) | 25.91 |
| Ship width (cm) | 7.37 |
| HS code | 8483509040 |
| Country of Origin | US |
| Product | Model | 4l, A, Or Ax Belt Pitch Dia. | 4la Or A Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | Belt Type | Bushing Required | Construction | Datum Diameter | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1104B | 10.6" | 10.6" | 11" | B | SK | Arm | 11" | 0.28" | €346.81 | |
|
1364B | 13.2" | 13.2" | 13.6" | B | SK | Arm | 13.6" | 0.28" | €405.80 | |
 |
1603B | 15.6" | 15.6" | 16" | B | SK | Arm | 16" | 0.03" | €394.44 | |
|
1604B | 15.6" | 15.6" | 16" | B | SF | Arm | 16" | 0.31" | €531.30 | |
|
1844B | 18" | 18" | 18.4" | B | SF | Arm | 18.4" | 0.31" | €520.04 | |
 |
2501B | 24.6" | 24.6" | 25" | B | SF | Arm | 25" | 0.31" | €688.26 | |
 |
424B | 3.8" | 3.8" | 4.2" | B | SD | Solid | 4.2" | 2.06" | €152.96 |
