| Item | V-Belt Sheave |
| Belt Type | 4L |
| Bore Dia. | 1.125" |
| Bore Type | Finished with Keyway |
| Bore-to-size Bore Dia. | 1 1/8" |
| Datum Diameter | 7.9" |
| Dimension E | 0.66" |
| Dimension L | 1.47" |
| Face Width | 0.88" |
| Hub Dia. | 2 1/2" |
| Inertia Wr | 0.24 lbs.-sq. ft. |
| Inside Dia. | 7 3/4" |
| Material | Cast Iron |
| Max. Rpm | 3040 RPM |
| Number Of Grooves | 1 |
| Outside Dia. | 8.25" |
| Overall Length | 1.53125" |
| Pitch Dia. | 8.31" |
| Product Type | FHP Bored to size |
| Rpm High | 3,040RPM |
| Weight | 5 Lbs. |
| Ship weight (kg) | 2.475 |
| Product | Model | 4l, A, Or Ax Belt Pitch Dia. | 4la Or A Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | Belt Type | Bore Dia. | Bore Type | Bore-to-size Bore Dia. | Construction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

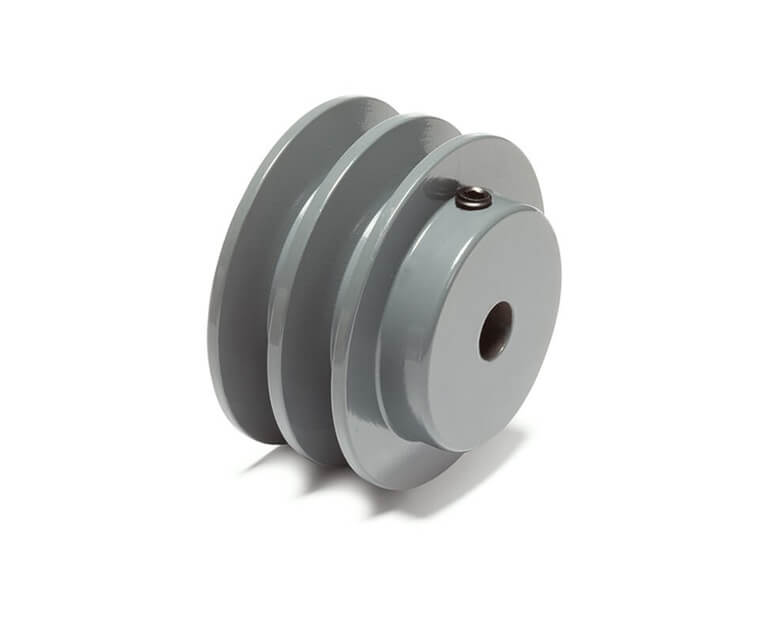

AK3212 | 3" | 3" | - | 3L | 1/2" | Machinable | 1/2" | Web | €25.95 | |
 |
AK3258 | 3" | 3" | - | 3L | 0.625" | Finished with Keyway | 5/8" | Web | €25.95 | |
|
AK3234 | 3" | 3" | - | 3L | 3/4" | Finished with Keyway | 1 1/4" | Web | €25.95 | |
|
AK3278 | 3" | 3" | - | 3L | 0.875" | Finished with Keyway | 7/8" | Web | €25.95 | |
|
AK321 | 3" | 3" | - | 3L | 1" | Finished with Keyway | 1" | Web | €25.95 | |
|
AK1041 | 10" | 10" | - | 3L | 1" | Finished with Keyway | 1" | Arm | €102.11 | |
|
AK10434 | 10" | 10" | - | 3L | 3/4" | Finished with Keyway | 1 1/4" | Arm | €102.11 |
