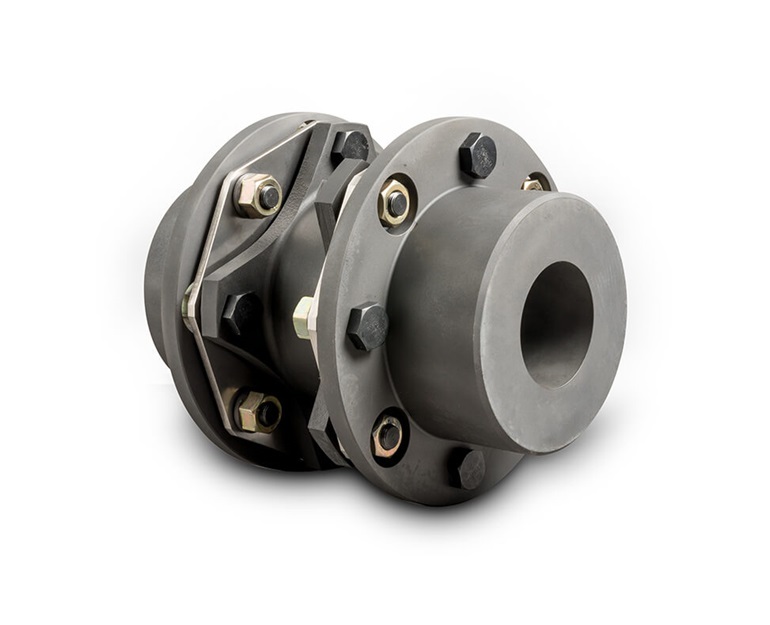

| Item | Flexible Coupling |
| Angular Misalignment | 0.33 Deg. |
| Coupling Size | 511 |
| Dimension A | 22" |
| Dimension B | 9" |
| Dimension C | 14.5" |
| Dimension D | 12.39" |
| Dimension G | 1.56" |
| Dimension L | 30.39" |
| Free End Float +/- | 0.14" |
| Hp Rating @ 100 Rpm | 1746 hp |
| Inertia | 55013 lbs.-sq. ft. |
| Max. Bore | 10" |
| Max. Rpm | 1200 RPM |
| Peak O/l Torque | 1650000 lbs.-in. |
| Product Type | GCH |
| Rated Torque | 1100000 lbs.-in. |
| Spacer Size | 85 |
| Weight | 980 lbs. |
| Model | Coupling Size | Dimension A | Dimension B | Dimension C | Dimension D | Dimension G | Free End Float +/- | Inertia | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GCH340-31 | 340 | 8.38" | 2.88" | 5.44" | 4.14" | 0.57" | 0.06" | 344 lbs.-sq. ft. | - | RFQ
|
| GCH340-35 | 340 | 8.38" | 2.88" | 5.44" | 4.71" | 0.57" | 0.06" | 349 lbs.-sq. ft. | - | RFQ
|
| GCH412-42 | 412 | 11" | 4 1/4" | 6.51" | 5.57" | 1 1/4" | 0.08" | 1373 lbs.-sq. ft. | - | RFQ
|
| GCH412-45 | 412 | 11" | 4 1/4" | 6.51" | 6.07" | 1 1/4" | 0.08" | 1387 lbs.-sq. ft. | - | RFQ
|
| GCH412-50 | 412 | 11" | 4 1/4" | 6.51" | 7.19" | 1 1/4" | 0.08" | 1418 lbs.-sq. ft. | - | RFQ
|
| GCH424-55 | 424 | 15" | 6 1/4" | 9.57" | 7.45" | 0.98" | 0.1" | 7157 lbs.-sq. ft. | - | RFQ
|
| GCH424-60 | 424 | 15" | 6 1/4" | 9.57" | 8.45" | 0.98" | 0.1" | 7277 lbs.-sq. ft. | - | RFQ
|
