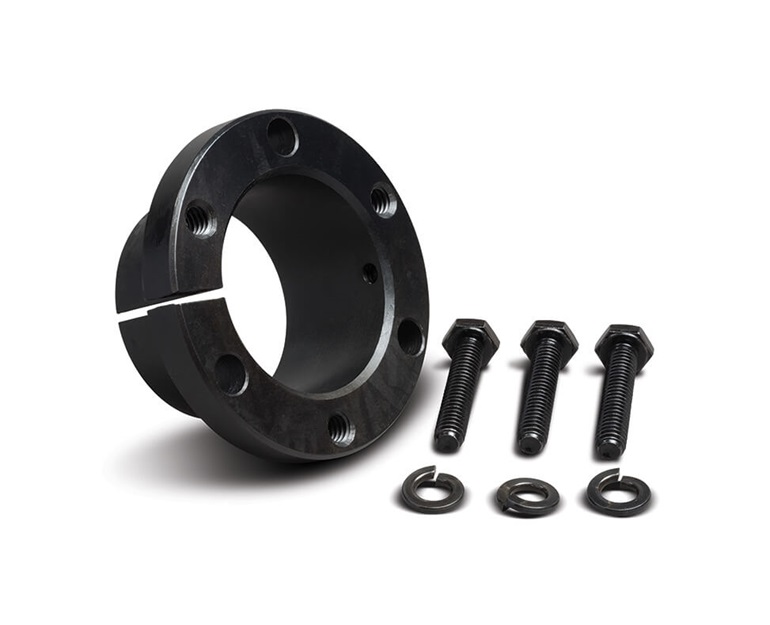

| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 2 1/4" |
| Bore Dia. | 1-11/16" |
| Bore Size | 1 mm |
| Bore Type | Finished with No Keyway |
| Bushing | Standard |
| Bushing Type | Standard |
| Coupling Size | SH |
| Dimension A | 0.38" |
| Dimension B | 1.871" |
| Dimension D | 2.688" |
| Dimension E | 0.88" |
| Dimension F | 0.81" |
| Dimension L | 1 1/4" |
| Hardware | Inch Series |
| Keyway | No Keyway |
| Material | Steel |
| Mounting Type | Conventional or Reverse |
| Size | SH |
| Torque | 3500 lbs.-in. |
| Torque Range | 3500 lb-in |
| Type | Standard |
| Weight | 0.5 Lbs. |
| Ship weight (kg) | 0.225 |
| Product | Model | Bolt Circle Dia. | Bolt Size | Bore Bushing Series | Bore Dia. | Bore Size | Bore Type | Bushing Type | Coupling Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SD11116 | 2.688" | 1/4-20" x 1-7/8" | SD | 1-11/16" | 1 mm | Finished with Keyway | Standard | SD | €51.78 | |
|
SD11516 | 2.688" | 1/4-20" x 1-7/8" | SD | 1-15/16" | 1 mm | Finished with Keyway | Standard | SD | €51.78 | |
 |
SD1316 | 4.687" | 1/4-20" x 1-7/8" | SD | 1.187" | - | - | - | - | €51.78 | |
|
SDS11116 | 2.688" | 1/4-20" x 1-3/8" | SDS | 1-11/16" | 1 mm | Finished with Keyway | Standard | SDS | €41.95 | |
|
SDS11516 | 2.688" | 1/4-20" x 1-3/8" | SDS | 1-15/16" | 1 mm | Finished with Keyway | Standard | SDS | €42.87 | |
|
SDS178 | 2.688" | 1/4-20" x 1-3/8" | SDS | 1-7/8" | 1 mm | Finished with Keyway | Standard | SDS | €42.96 | |
 |
SDS58 | 2.688" | 1/4-20" x 1-3/8" | SDS | 5/8" | 5/8" | Finished with Keyway | Standard | SDS | €35.73 |
